Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti2
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: $20.00~$30.00/kg
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 20000 pieces per month
Product Name: |
ASTM B381 SB-265-2 Gr2 Titanium Disc Used For Pressure Vessel Equipment |
Material: |
Gr2 Titanium |
Standard: |
ASTM/ASME B265,ASTM/ASME B381 |
Diameter: |
50-2500mm |
Thickness: |
Max 150mm |
Process: |
Forging |
Quality Test: |
UT,PT |
Third-party Testing: |
Available |
Product Name: |
ASTM B381 SB-265-2 Gr2 Titanium Disc Used For Pressure Vessel Equipment |
Material: |
Gr2 Titanium |
Standard: |
ASTM/ASME B265,ASTM/ASME B381 |
Diameter: |
50-2500mm |
Thickness: |
Max 150mm |
Process: |
Forging |
Quality Test: |
UT,PT |
Third-party Testing: |
Available |
Titanium and titanium alloy titanium cake low density high strength, low temperature resistance, high temperature corrosion resistance.It is widely used in vacuum salt making, fine chemical industry, petrochemical industry,
pharmaceutical, chlor-alkali industry, electroplating, electrolysis, aerospace, seawater desalination and other industries.Such as titanium forgings titanium cake used in petrochemical equipment required top and bottom cover.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

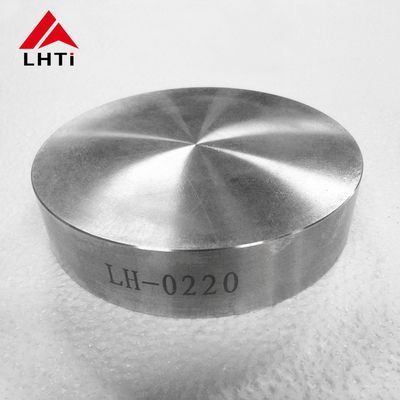

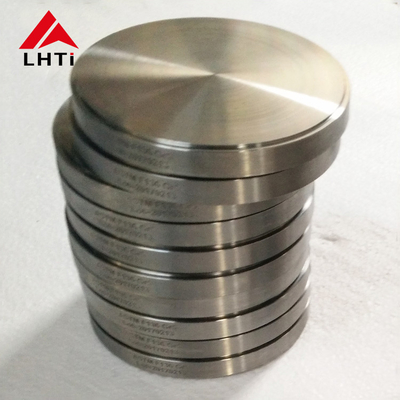

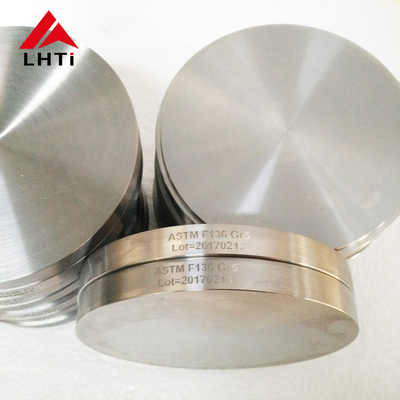

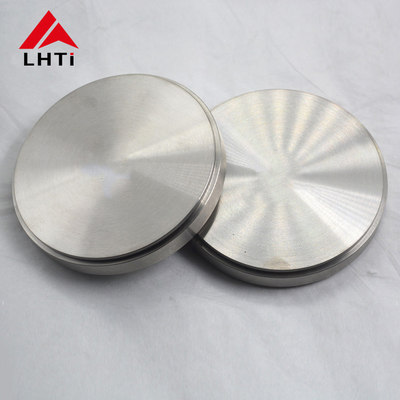

Product picture:
About us
Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.
The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.
The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.
The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
