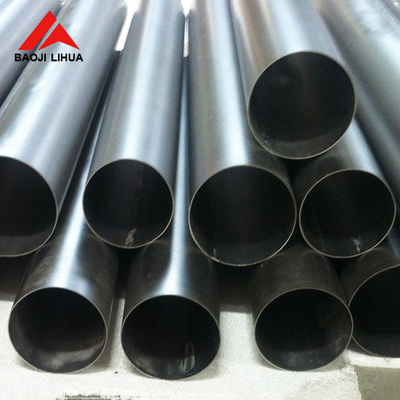

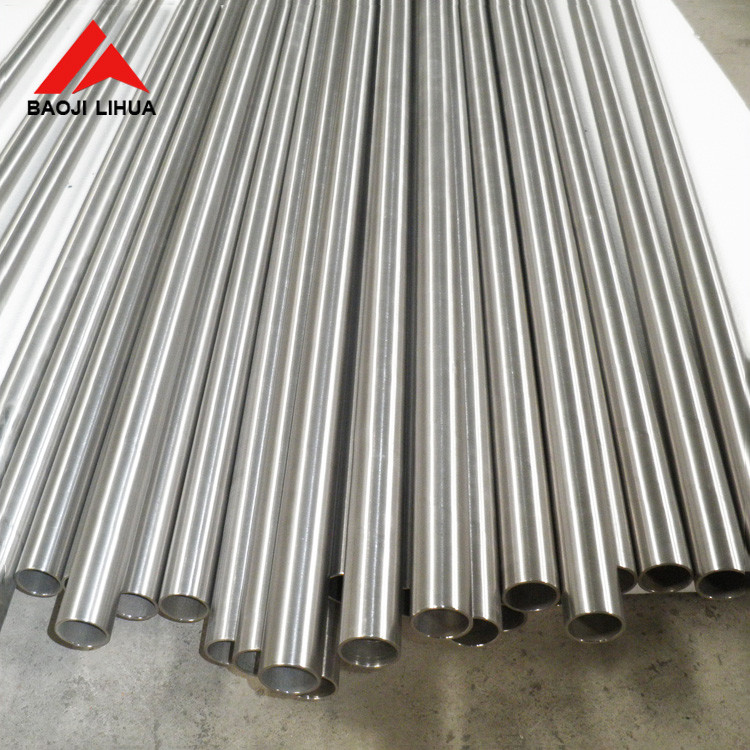

Titanium Tube 20mm OD 1.2mm Wall Thickness ASTM B338

Brand Name:	LHTI
Model Number:	LH-01
MOQ:	If in stock, sample is available; If not in stock,100kgs of each size
Price:	US dollar $23/kg-US dollar $31/kg
Payment Terms:	L/C,D/P,T/T,Western Union,Paypal.etc
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi City Shaanxi China

Certification:

ISO9001

Key Words 1:

ASTM B338 Titanium Gr1/gr2/gr5 Seamless Titanium Tube With Factory Price

Key Words 2:

20mm GR2 Titanium Tube

Key Words 3:

Titanium Heat Exchanger Tube

Material:

Pure Titanium

Grade:

Grade 2

Purity:

99.5%min

Length:

Max 12 Meter

Surface:

Pickling Surface

Application:

Heat Exchanger

Production Time:

15 Working Days

Payment Term:

T/T,Paypal,Western Union Etc

Packaging Details:

Each tube with environmental protection bags,outside is standard plywood case

Supply Ability:

5 tons per month

Highlight:

Gr5 Pure Titanium Tube

ASTM B338 Titanium Alloy Tube

Heat Exchanger Pickling Titanium Tube

Product Description

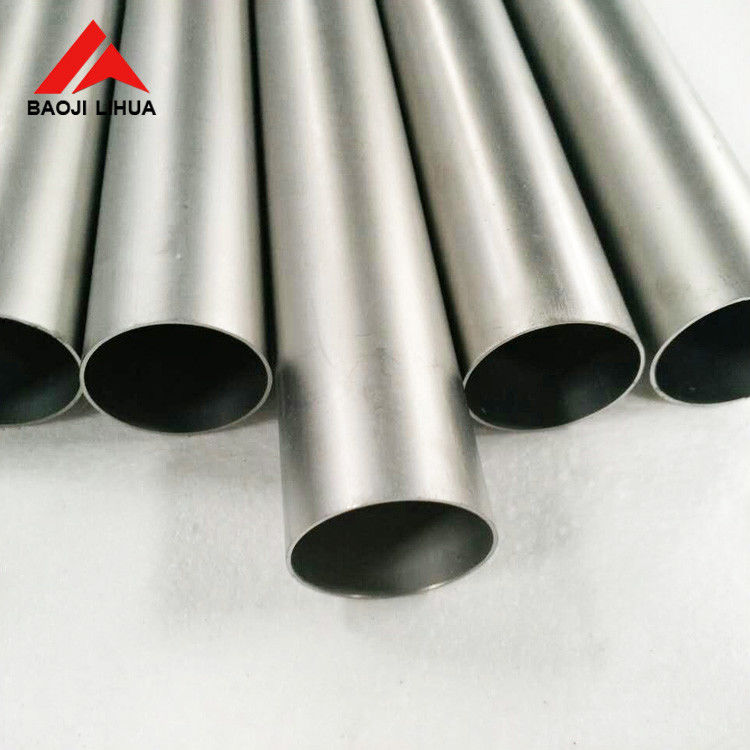

Titanium Tube 20mm OD 1.2mm Wall Thickness ASTM B338

High-quality titanium tubes manufactured to ASTM B338 standards, available in various grades and specifications for industrial applications.

Titanium Tube Specifications

Name	Pure Titanium & Titanium Alloy Tube /Pipe/Tubing
Tube Shape	Round Square Flat Coil
Material	Gr1, Gr2, Gr7, Gr12
Standard	ASTM SB338
Type	Seamless
OD	20 mm
Wall Thickness	1.2mm or as customized
Length	Max 12 meter
End	Plain End, Beveled End, Threaded
Certificate	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report (TUV, BV, SGS etc)
Application	Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry

Mechanical Properties

Grade	Tensile Strength (min)	Yield Strength (0.2% offset)	Elongation (%)
1	35 ksi / 240 MPa	25 ksi / 170 MPa (Min) 45 ksi / 310 MPa (Max)	24
2	50 ksi / 345 MPa	40 ksi / 275 MPa (Min) 65 ksi / 450 MPa (Max)	20
7	50 ksi / 345 MPa	40 ksi / 275 MPa (Min) 65 ksi / 450 MPa (Max)	20
9	90 ksi / 620 MPa	70 ksi / 483 MPa	15C
12	70 ksi / 483 MPa	50 ksi / 345 MPa	18C

Chemical Composition (%)

Grade	N	C	H	Fe	O	Al	V	Ti	Other (max)
1	0.03	0.08	0.015	0.20	0.18	/	/	Bal	0.4
2	0.03	0.08	0.015	0.30	0.25	/	/	Bal	0.4
7	0.03	0.08	0.015	0.30	0.25	/	/	Bal	0.4
9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	Bal	0.4
12	0.03	0.08	0.015	0.30	0.25	/	/	Bal	0.4
