Product Details
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-10
Payment & Shipping Terms
Minimum Order Quantity: 5 piece
Price: US dollar $22/pc--US dollar $800/pc
Packaging Details: Pearl cotton wrap or Sealed packaging，outside is standard Carton case or plywood case,or according your requirment to package
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 5000 piece per week
Product Name: |
High Quality Grade 2 Titanium Round Disc Titanium Target Price Per Kg |
Material: |
Titanium Alloy |
Diameter: |
50-2000mm Or According Your Requirment |
Thickness: |
10mm---50mm Etc |
Package: |
Plywood Case Or According Your Requirment |
Application: |
Chemical Industrial |
Standard: |
ASTM B348 |
Keyword: |
Titanium Target |
Product Name: |
High Quality Grade 2 Titanium Round Disc Titanium Target Price Per Kg |
Material: |
Titanium Alloy |
Diameter: |
50-2000mm Or According Your Requirment |
Thickness: |
10mm---50mm Etc |
Package: |
Plywood Case Or According Your Requirment |
Application: |
Chemical Industrial |
Standard: |
ASTM B348 |
Keyword: |
Titanium Target |
Customized Titanium Sputter Target PVD Materials 99.7% Pure Best Selling Titanium (Ti) Metal Disc
The titanium is made of titanium metal.As a metal, titanium is recognized for its high strength-to-weight ratio. It is a strong metal with low density that is quite ductile (especially in an oxygen-free environment), lustrous, and metallic-white in color. The relatively high melting point (more than 1,650 °C or 3,000 °F) makes it useful as a refractory metal. It is paramagnetic and has fairly low electrical and thermal conductivity.
Titanium and arc cathodes with Industrial grade are used for decorative coating to deposit golden, yellow, and golden yellow color. With up to 99.7% purity, uniform grain size, lower gas content, end user can obtain good hardness, high brightness, corrosion and oxidation resistant color without discolor and tarnish for a very long time. We have been supplying Titanium Sputtering Target or Titanium arc cathodes for manufacturers of watch, sanitary ware, car mirrors, etc, which are suitable for various magnetron sputtering machines and ionic plating machines.
High purity Titanium with up to 99.999% pure are usually used for integrated circuit, DRAMS and flat panel display application. When LSI, VLSI, and ULSI line networks are sputtered with high-purity titanium, these integrated components can be made light, thin, small in size, and dense in wiring.
| Name |
titanium disc / titanium block |
| Standard |
ASTM B348 |
| Grade |
Commercially Pure Grade 1 Commercially Pure Grade 2 Commercially Pure Grade 5 Commercially Pure Grade 7 Commercially Pure Grade 12 |
| Diameter |
Titanium disc diameter : 50mm-2000mm etc Thickness:10mm--50mm etc |
| Logo | accept make customer logo on disc |
| Technique | Forging ,Machining |
| Surface | acid surface or polishing, sand blasted surface |
| Shape | Round |
| Application | Chemical industrial |
| Chemical composition % | |||||||||
| Grade | Ti | Al | V | Nb | Fe, max | C, max | N, max | H, max | O, max |
| Gr1 | Bal | / | / | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | |
| Gr2 | Bal | / | / | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | |
| Gr3 | Bal | / | / | 0.30 | 0.08 | 0.05 | 0.015 | 0.35 | |
| Gr4 | Bal | / | / | 0.50 | 0.08 | 0.05 | 0.015 | 0.40 | |
| Gr5 | Bal | 5.5~6.5 | 3.5~4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 | |
| Ti-6Al-7Nb | Bal | 5.5-6.5 | / | 6.5-7.5 | 0.25 | 0.08 | 0.08 | 0.009 | 0.20 |

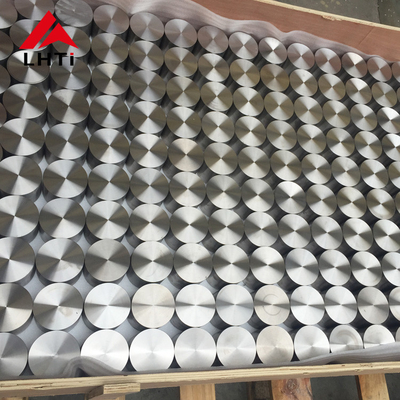

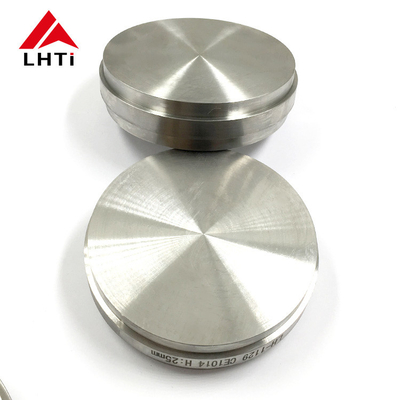

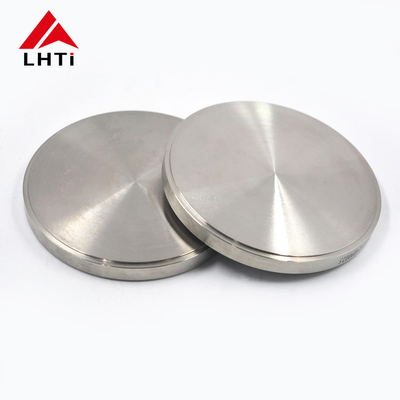

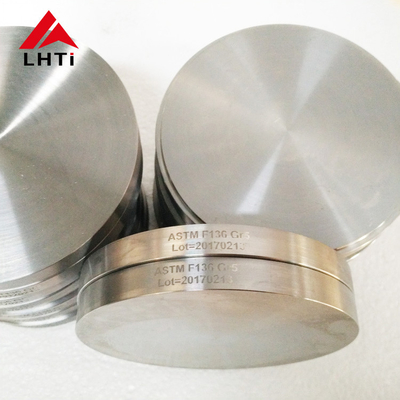

Product picture:
About us
Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.
The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.
The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.
The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
FAQ
1. Any discount?
A: The prices we quote are all wholesale price in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best-quality products as we have fully equipped Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are certified manufacturer with our auto parts approved by ISO9001 Quality Management System.
5. How about quality of products?
A: We guarantee strict control on every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How is your MOQ?
A: Minimum quantity for certain items is only 10kg. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at anytime.
8. How about delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
