Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod

Product Details

Place of Origin: China

Brand Name: LH-Ti

Certification: ISO9001:2015

Model Number: LHTB

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: USD20-28/kg

Packaging Details: Standard export packing

Delivery Time: 7-20days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000kg per month

Get Best Price
Highlight:

Medical Titanium Round Bars

,

Tc4 Titanium Alloy Rod

,

Industrial Titanium Round Bars

Product Name:
Titanium Alloy Round Rod GR5
Surface:
Plished
Size:
Customized
Grade:
Ti/alloy GR5
Application:
Industrial & Medical
Density:
4.51 G/cm^3
Product Name:
Titanium Alloy Round Rod GR5
Surface:
Plished
Size:
Customized
Grade:
Ti/alloy GR5
Application:
Industrial & Medical
Density:
4.51 G/cm^3
Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod

Pure titanium round bars tc4 grade 5 titanium bar



The composition of GR5 titanium alloy is Ti-6Al-4V, which belongs to (α + β) type titanium alloy and has good comprehensive mechanical properties. GR5 titanium has the same corrosion resistance and light weight as pure titanium, but better mechanical properties. It is widely used in automobile industry, aviation industry, medical industry, sports industry, etc.



Product Name:ASTM B348 Gr5 titanium bar

Standard: ASTM B348

Material: GR5 titanium

Unit Price: $22.1usd/kg- $35.9usd/kg

Shape: Round, Square, Flat, Hex

Diameter: 6-350mm

Length: Max 6000mm

Surface: Bright

Application: industry



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18



Item Name Titanium bar/titanium rod
Standard ASTM B348,ASTM F67,ASTM F136, AMS 4928
Material Gr1 Gr2 Gr3 Gr4 Gr5
Diameter 0.8~500mm
Length 500~6000mm or according to customers' request
Product Status Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
Shape Round bar, square bar , hex bar
Feature

1.Polished surface without any defects free from cracks no pittings

2.Two ends flating making sure length torlerance and good looking

Certificate ISO9001:2015, TUV, material test certificate acc EN10204.3.1

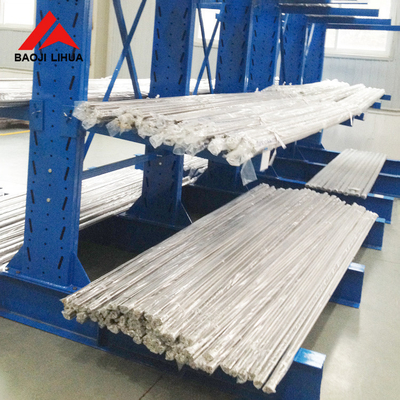

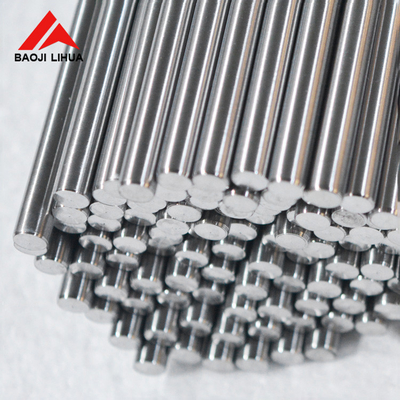

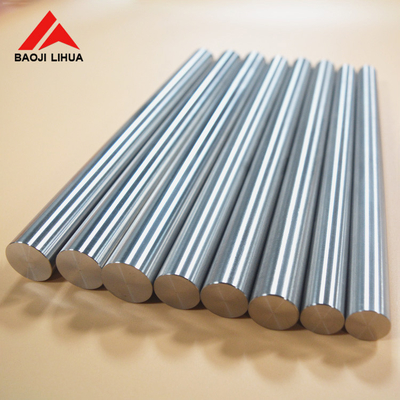

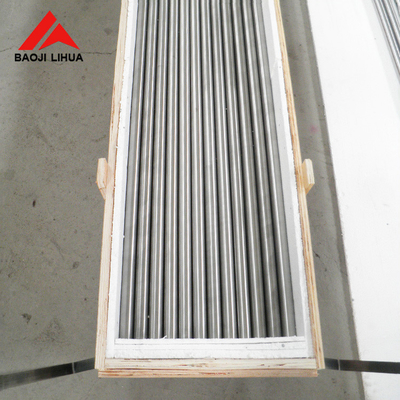

Product picture:



Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 0Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 1Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 2Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 3Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 4Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 5Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 6

Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 7Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 8Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 9Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 10Grade 5 Pure Titanium Round Bars Tc4 Titanium Alloy Rod 11
