Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar

Product Details

Place of Origin: Shaanxi, China

Brand Name: LH-Ti

Certification: ISO9001:2015

Model Number: LHTB

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: USD18-29 /KG

Packaging Details: Standard export packing

Delivery Time: 7-20days

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A

Supply Ability: 50000kg per month

Get Best Price
Highlight:

Polished Titanium Alloy Round Bar

,

Grade 5 Industrial Titanium Rod

,

CNC Machined Titanium Rod

Product Name:
Titanium Alloy Bar
Surface:
Polished, Forged
Size:
Customized
Grade:
Gr5
Application:
Industrial
Density:
4.51 G/cm^3
Product Name:
Titanium Alloy Bar
Surface:
Polished, Forged
Size:
Customized
Grade:
Gr5
Application:
Industrial
Density:
4.51 G/cm^3
Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar

Titanium alloy grade 5 round bar



Grade 5 titanium (Ti6Al4V) is the most common and widely used material in titanium alloys.Titanium alloys are mainly used to make aircraft engine compressor components, followed by structural components for rockets, missiles and high-speed aircraft. In the mid-1960s, titanium and its alloys were used in the general industry for the production of electrodes for the electrolysis industry, condensers for power stations, heaters for petroleum refining and seawater desalination, and environmental pollution control devices. Titanium and its alloys have become a corrosion resistant structural material.



Gr5 titanium alloy bar is mainly divided into industrial grade, medical grade and aviation grade. The chemical composition of each grade is similar but not identical, and the physical properties are obviously different. We can provide different grade products according to customer requirements.



Material: Gr5 titanium

Standard : ASTM B348,AMS 4928,ASTM F136

Diameter:5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 25mm 28mm 30mm 32mm 35mm 36mm 38mm 40mm 42mm 44mm 45mm 46mm 48mm 50mm etc.

Length: Max L6000mm

Supply status: Annealed

Applications :Industrial,aviation,medical etc.

Package: Carton or plywood case.

Quality and Test : EN10204.3.1 certificate

Surface:CNC machined polished



Chemical requirements
  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal



Tensile requirements
Grade Tensile srength(min) Yeild strength(mm) Elongation(%)
  KSI MPa Ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18

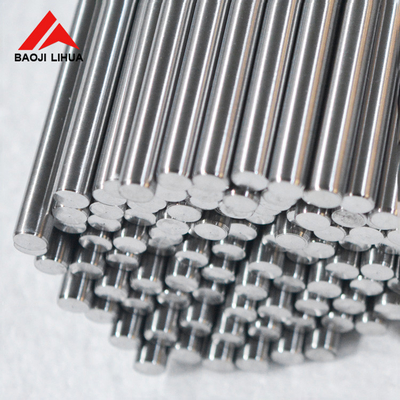

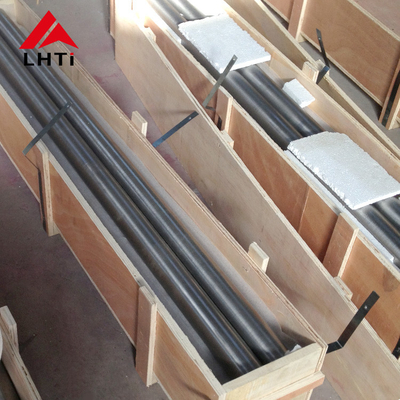

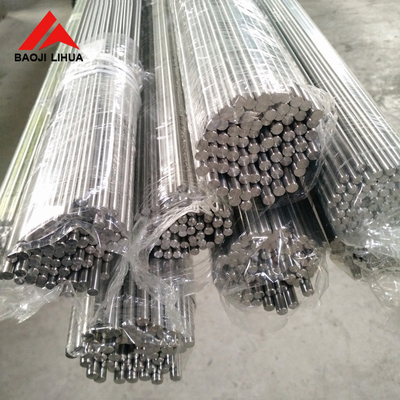

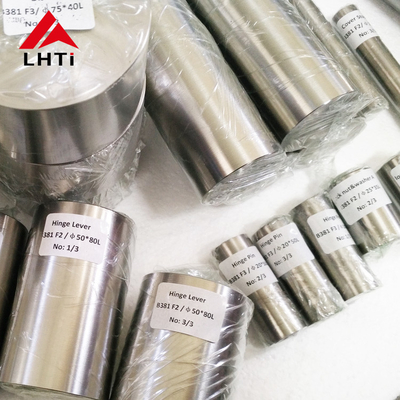

Product picture:



Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 0

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 1

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 2

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 3

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 4Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 5

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 6

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 7

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 8

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 9

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 10

Grade 5 Industrial Titanium Rod Polished Titanium Alloy Round Bar 11
