Ti - 0.2Pd Gr7 Titanium Alloy Bar Round Bright Polished Surface

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Titanium rod
Minimum Order Quantity: 50 kgs
Price: USD20.00-31.00 per kg
Packaging Details: Plywood box with soft foam inside for additional protection against any shipping-induced trauma
Delivery Time: 18-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 300000 kg per month
Detail Information
Material: Titanium Alloy Color: Natural
Surface: Bright,Polished,Pickling Condition: Annealed
MOQ: 50 Kgs Diameter: 3mm-350mm
Length: 500-6000mm,or As Customers Request
High Light:

Gr7 Titanium Alloy Bar

,

Polished Surface Titanium Alloy Bar

,

Ti 0.2Pd Round Bar


Product Description







Grade 7 titanium alloy is an alloy made of pure titanium by adding a small amount of noble metal Pd, which has excellent corrosion resistance to acidic media. The alloy has good processing, forming and welding properties, but contains precious metal Pd and is relatively expensive.



Production Name Ti-0.2Pd Gr7 Titanium alloy bar
Material grade Gr7(Gr11) / F7/Ti-0.2Pd
Standard ASTM B348
Diameter 1mm 2mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 15mm 16mm etc.
Length 500mm,1000mm,2000mm,3000mm. Or as customer's requets
Supply status Annealed
Feature High corrosion resistance, low density, good thermal stability
Products Certificate En 10204/3.1, Third party testing is available, such as TUV,SGS,BV etc.
Applications Chemical industry requiring corrosion protection



Chemical compositions(weight%,<=)

Pd

Al

V

Fe

C

 0.12-0.25

----

----

0.30

0.08

N

H

O

Other(total)

Ti

0.05

0.015

0.2

0.4

Remainder

Physical properties(>=)

Σb

Tensile Strength

(Mpa)

σr0.2

Yield Strength

(Mpa)

δL0+50mm

Elongation

(%)

ψ

Reduction of area

(%)



400

275

20

25



titanium bar h tolerance

titanium rod grade 7

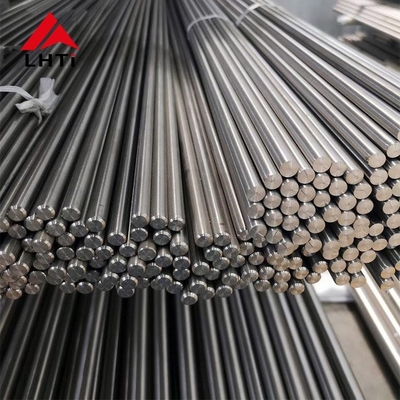

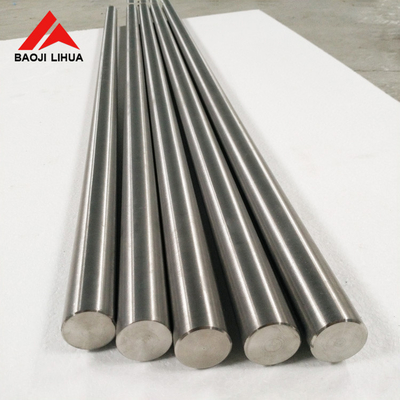

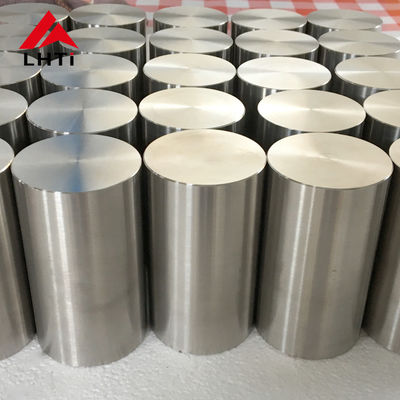

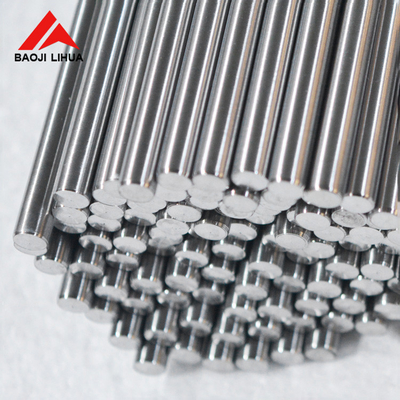

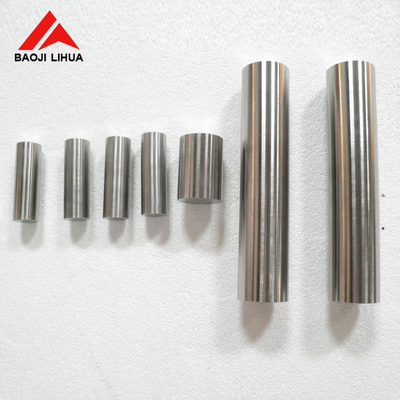

Detailed images

Ti - 0.2Pd Gr7 Titanium Alloy Bar Round Bright Polished Surface 2Ti - 0.2Pd Gr7 Titanium Alloy Bar Round Bright Polished Surface 3Ti - 0.2Pd Gr7 Titanium Alloy Bar Round Bright Polished Surface 4Ti - 0.2Pd Gr7 Titanium Alloy Bar Round Bright Polished Surface 5



titanium bar quality inspections



Retaled prodcuts:Gr7 titanium bolts:

DIN 933 Ti screw



Titanium bar manufacturing process:

lihua titanium rod (3)

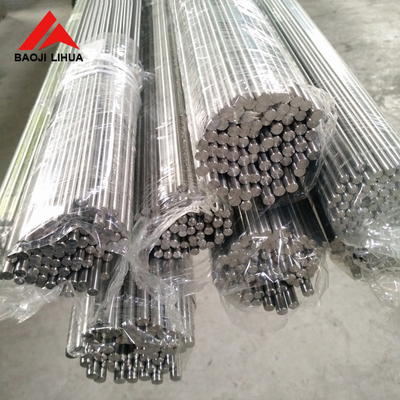

titanium rod packaging



About our company:

our companytitanium bar factory 1

lihua titanium rod (1)
