Product Details
Place of Origin: China baoji
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Ti bar
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Packaging Details: Wooden case or as per client requirement
Delivery Time: 15 work day
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000 Kilogram/Kilograms per Month
Product Name: |
Gr5 Titanium Bar |
Material: |
Grade 5 Titanium |
Standard: |
ASTM B348,ASTM B381, AMS 4928,ASTM F136 |
Size: |
Dia 5--200mm * Max L6000mm |
Applications: |
Industrial |
Supply Status: |
Annealed |
Package: |
Carton Or Plywood Case. |
Quality And Test: |
EN10204.3.1 Certificate |
Surface: |
CNC Machined Polished |
MOQ: |
10kgs |
Feature: |
Low Density, Special Strong Strength, Excellent Corrosive Resistance |
Product Name: |
Gr5 Titanium Bar |
Material: |
Grade 5 Titanium |
Standard: |
ASTM B348,ASTM B381, AMS 4928,ASTM F136 |
Size: |
Dia 5--200mm * Max L6000mm |
Applications: |
Industrial |
Supply Status: |
Annealed |
Package: |
Carton Or Plywood Case. |
Quality And Test: |
EN10204.3.1 Certificate |
Surface: |
CNC Machined Polished |
MOQ: |
10kgs |
Feature: |
Low Density, Special Strong Strength, Excellent Corrosive Resistance |
Grade 5 titanium (Ti6Al4V) is the most common and widely used material in titanium alloys.Titanium alloys are mainly used to make aircraft engine compressor components, followed by structural components for rockets, missiles and high-speed aircraft. In the mid-1960s, titanium and its alloys were used in the general industry for the production of electrodes for the electrolysis industry, condensers for power stations, heaters for petroleum refining and seawater desalination, and environmental pollution control devices. Titanium and its alloys have become a corrosion resistant structural material.
Gr5 titanium alloy bar is mainly divided into industrial grade, medical grade and aviation grade. The chemical composition of each grade is similar but not identical, and the physical properties are obviously different. We can provide different grade products according to customer requirements.
Material: Gr5 titanium
Standard : ASTM B348,AMS 4928,ASTM F136
Diameter:5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 25mm 28mm 30mm 32mm 35mm 36mm 38mm 40mm 42mm 44mm 45mm 46mm 48mm 50mm etc.
Length: Max L6000mm
Supply status: Annealed
Applications :Industrial,aviation,medical etc.
Package: Carton or plywood case.
Quality and Test : EN10204.3.1 certificate
Surface:CNC machined polished
Gr 5 titanium alloy bar / rod Chemical Composition
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Gr 5 titanium bar / rod Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 |
Psi – 128000 , MPa – 880 |
14 % |
Equivalent Grades for Gr 5
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |

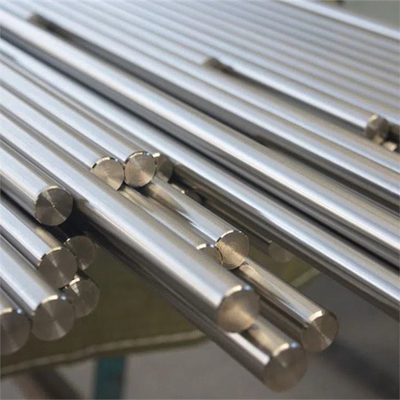

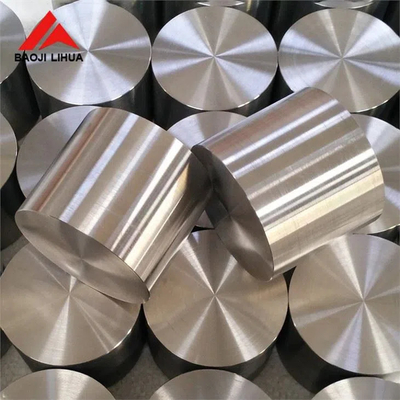

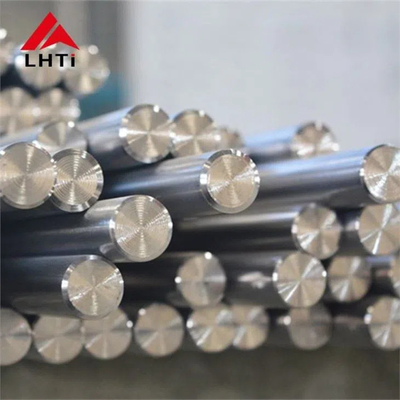

Detailed images:
Titanium rod production process:
We choose grade 1 sponge titanium to produce titanium rod. The titanium rod produced has smooth surface without defects, good internal structure and good processing effect.
We are one of the leading companies in manufacturing titanium Gr 5 bars for export. These bars are made of the finest nickel alloy. These titanium Gr 5 rods are basically used as joints between intermediate rods. They are also used as plug-ins to resist pressure in pressure valves. These are in great demand in many large industrial uses. Our Titanium Gr 5 stick is one of the best-selling sticks and is known for its durable leak-proof properties.
Our team of professionals is dedicated to managing the production and export of various titanium Gr 5 stick products. With abundant technical support, we have paid great attention to the quality of these titanium Gr 5 sticks. We are an ISO 9001:2015 registered company and for more than 16 years have been recognized as one of the world's leading stockists and manufacturers of quality metals, dedicated to fast response, superior quality, competitive prices, reliable delivery and detailed inventory.
