Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015,TUV,SGS
Model Number: LH-Ti10
Payment & Shipping Terms
Minimum Order Quantity: 5 pcs
Price: US dollar $17.5/kg--US dollar $39.5/kg
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union etc.
Supply Ability: 10000 Kilograms per Month
Material: |
Pure Titanium & Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Technique: |
Forged, CNC Machined |
Standard: |
ASTM B381 |
Material: |
Pure Titanium & Titanium Alloy |
Grade: |
Gr1, Gr2, Gr3,Gr4, Gr7, Gr9, Gr12,etc |
Technique: |
Forged, CNC Machined |
Standard: |
ASTM B381 |

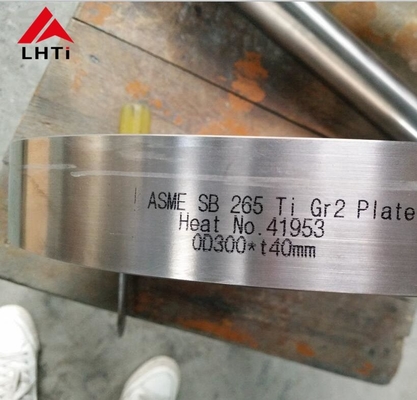

Titanium Forging Discs
Product name: Titanium Forging Discs
Material Grade: Gr1,Gr2,Gr5, Gr7 ,Gr9,Gr12
Standard: ASTM / ASME B381
Technique: Forged, CNC machined
Type: Round disc

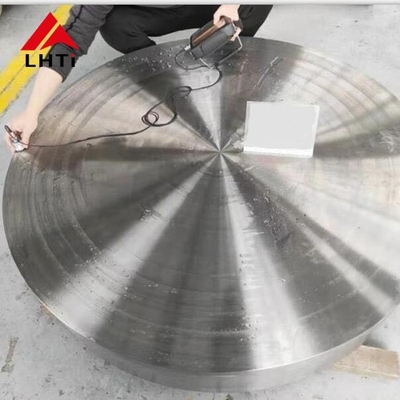

Quality test: Appearance, Chemical composition, Physical properties,Ultrasonic Testing
Application:
1. Electroplating;
2. Chemical engineering & Petrochemical technology;
3.Use in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications
Available Titanium froging products:
|
Available Titanium froging products |
|||||
|
Product Names |
Dimensions |
Grade |
Standards |
||
|
Outer Diameter (mm) |
Inner Diameter (mm) |
Height (mm) |
|||
|
Disc |
50~200 |
/ |
20~140 |
GR1/GR2/GR3/GR4/GR5/GR7/GR9/GR12 /GR19 |
ASTM B381 |
|
200~400 |
/ |
25~150 |
|||
|
400~600 |
/ |
30~110 |
|||
|
Ring |
200~400 |
100~300 |
20~150 |
||
|
400~700 |
150~500 |
30~250 |
|||
|
700~900 |
300~700 |
35~300 |
|||
|
900~1300 |
400~900 |
50~400 |
|||
Also could be customized by customers' requests.
Materials and standard of Titanium Forged Disc that we can do:
Grade 1 F-1 Unalloyed titanium
Grade 2 F-2 Unalloyed titanium
Grade 3 F-3 Unalloyed titanium
Grade 4 F-4 Unalloyed titanium
Grade 5 F-5 Titanium alloy (6 % aluminum, 4 % vanadium)
Grade 7 F-7 Unalloyed titanium plus 0.12 to 0.25 % palladium
Grade 9 F-9 Titanium alloy (3 % aluminum, 2.5 % vanadium)
Grade 12 F-12 Titanium alloy (0.3 % molybdenum)
Grade 19 F-19 Titanium alloy (3 % aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 % molybdenum)
8.Packaging Terms:
Each piece of goods will be wrapped in plastic bags or plastic film, and then separated by export-specific foam film and pearl cotton.So goods will not rub against each other and damage the surface. The outside is standard export plywood. Ensure that the goods received by customers are complete and perfect. The goods can also be packaged according to customer requirements.
9.Shipping Terms:
1.For the small order: By international express such as: DHL, TNT, EMS, UPS and so on.
2. For large quantity order: By air or sea transport.
We always choose the most favorable and most convenient shipping method and freight company according to customers in different countries. Everything is based on the needs of customers.
All the detail terms we will discuss with customers in the contract.
Packing and shipping:
About us:
RFQ:
Q:Can I get sample of Titanium Alloy Forging Disk?
Yes, we're willing to offer free sample for you test.
Q:What's your minimal order quantity of Titanium Alloy Forging Disc?
If we have stock, there is no MOQ for our factory, usually we can produce 1 pc for titanium disk.
Q:Can I get a certificate of Titanium Alloy Forging Disk?
MTC EN10204.3.1 will be supplied.
Q:What is the advantages of your company?
1. With over 15 years production and export experince of titanium products
2. Having our own factory and machines, so can provide competitive and high quality products
3. Providing customers with technical support and long-term after-sales service
