Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Titanium rod
Payment & Shipping Terms
Minimum Order Quantity: 50 kg
Price: USD16.00-28.00 per kg
Packaging Details: Plywood box
Delivery Time: 10-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 50000 kg per month
Diameter: |
10mm-300mm |
Material: |
Pure/alloy Titanium |
Surface: |
Bright,Polished, |
MOQ: |
50 Kg |
Packing: |
Standard Export Packing |
Shape: |
Round |
Standard: |
ASTM B348 |
Diameter: |
10mm-300mm |
Material: |
Pure/alloy Titanium |
Surface: |
Bright,Polished, |
MOQ: |
50 Kg |
Packing: |
Standard Export Packing |
Shape: |
Round |
Standard: |
ASTM B348 |
Titanium Alloy Bar
1. Product Information
Gr 5 titanium alloy bar / rod Chemical Composition
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Gr 5 titanium bar / rod Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 |
Psi – 128000 , MPa – 880 |
14 % |
Equivalent Grades for Gr 5
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |

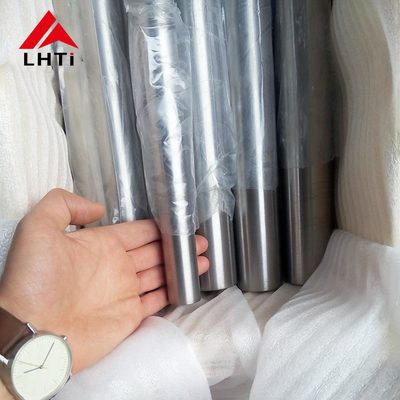

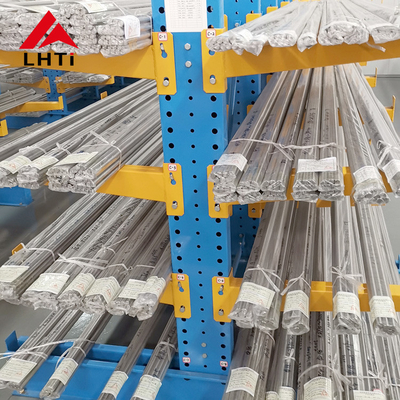

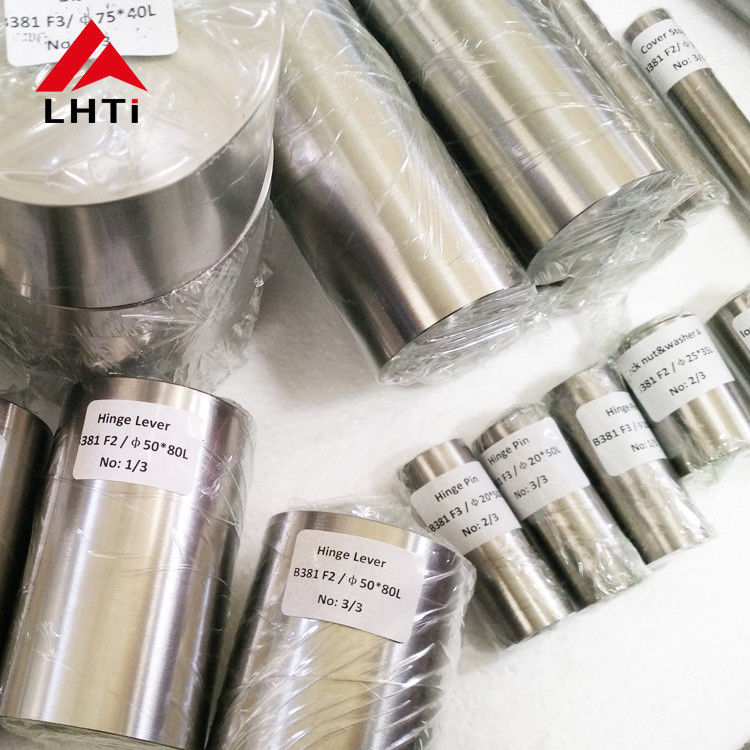

2.Detailed Images
3. Tolerance
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) |
|||||||
4. package
6. Production Process
Titanium rod processing Flow:
Titanium Sponge and master alloys → Compacting electrodes → Melting → Forging → Billets → Procision forging → Machining → Bars
7. Quality Assurance:
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
8. FAQ
| FAQ |
| Q1.--How can you ensure the product quality? |
|
--All products are manufactured according to ASTM standard (Bolts are according to ASME MTC Material Test Certification. |
| Q2.--Can you print our LOGO on the products? |
| --Sure, and we welcome the customerized products. |
| Q3.--Can we get the free sample? |
| --Sure. |
| Q4.--What about the payment terms? |
| --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
| Q5.--Do you have your website? |
| --Yes, Please click here. http://www.metalstitanium.com(Independent website) |
| Q6.--What is the necessary information for a inquiry? |
|
--Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
