Gr2 Gr5 Titanium Hollow Bar Bright Surface 6mm - 350mm

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium rod
Minimum Order Quantity: 100 kg
Price: USD22.00-31.00 per kg
Packaging Details: Plywood box with soft foam inside for additional protection against any shipping-induced trauma
Delivery Time: 15-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 300000 kg per month
Detail Information
Material: GR1, GR2, GR5, GR7, GR12 Color: Natural
Surface: Bright Condition: Annealed;M
MOQ: 100 Kg Diameter: 6mm-350mm
Shape: Round, Square, Flat, Hex
High Light:

Gr5 Titanium Hollow Bar

,

Bright Titanium Hollow Bar

,

Hollow Titanium Rod 350mm


Product Description



 Gr2 Gr5 Titanium hollow bar price





1. Product Information





A. Standard: ASTM B348,ASTM B381, AMS 4928.



B. Material grade: Grade 1, grade 2, grade 5, grade 9.



C. Round, Square, Flat, Hex



D. Product Status: Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status



E. Shape: Round bar, square bar , hex bar



F. Feature: 1.Polished surface without any defects free from cracks no pitting.

                  2.Two ends flatting making sure length tolerance and good looking.









2. Physical Properties



Physical Properties
  Tensile Strength(min) Yield Strength(min) Elongation(%)
ksi MPa ksi MPa
Grade 1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade 3 65 450 55 380 18
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10
Grade 7 50 345 40 275 20
Grade 9 90 620 70 483 15
Grade 12 70 483 50 345 18
Grade 23 120 828 110 759 10









3. Production Process





Titanium rod processing Flow:



Titanium Sponge and master alloys Compacting electrodes Melting → Forging → Billets → Procision forging → Machining → Bars





Gr2 Gr5 Titanium Hollow Bar Bright Surface 6mm - 350mm 0

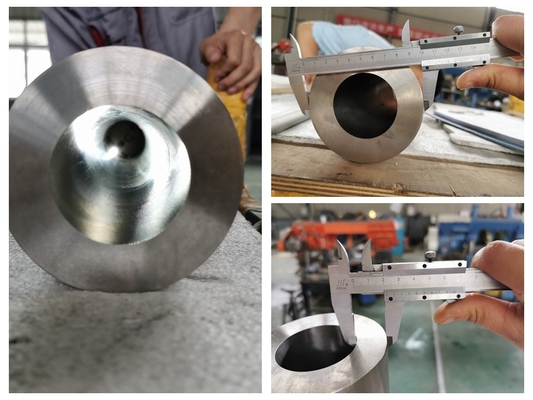

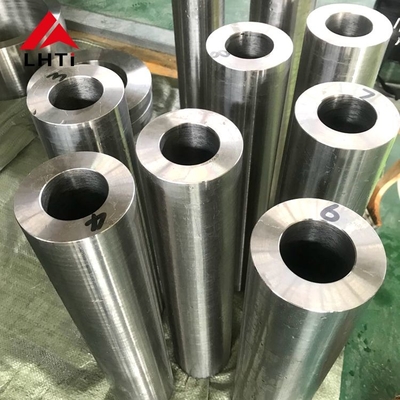

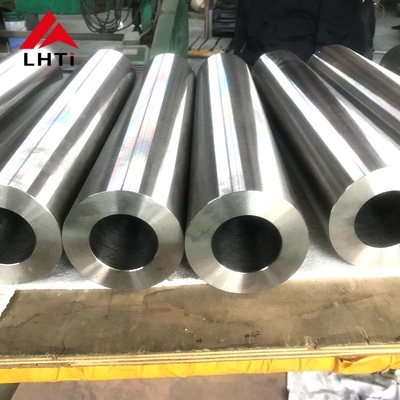

4. Detailed Images



Gr2 Gr5 Titanium Hollow Bar Bright Surface 6mm - 350mm 1

Gr2 Gr5 Titanium Hollow Bar Bright Surface 6mm - 350mm 2

Gr2 Gr5 Titanium Hollow Bar Bright Surface 6mm - 350mm 3









5. Related Product

Gr2 Gr5 Titanium Hollow Bar Bright Surface 6mm - 350mm 4





6. Quality Assurance:



A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.



B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.



C. Chemical Composition making sure all chemical components can satisfy customer’s demands.



D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.





7.Applications





8. FAQ



FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
