Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium rod
Payment & Shipping Terms
Minimum Order Quantity: 100 kg
Price: USD22.00-31.00 per kg
Packaging Details: Plywood box with soft foam inside for additional protection against any shipping-induced trauma
Delivery Time: 15-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 300000 kg per month
Material: |
Gr2 & Gr5 |
Color: |
Natural |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed;M |
MOQ: |
100 Kg |
Diameter: |
6mm-350mm |
Key Words: |
Titanium Hex Bar |
Material: |
Gr2 & Gr5 |
Color: |
Natural |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed;M |
MOQ: |
100 Kg |
Diameter: |
6mm-350mm |
Key Words: |
Titanium Hex Bar |

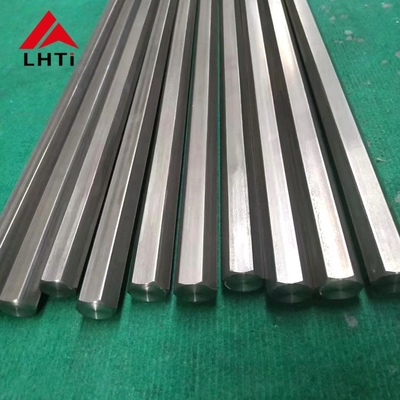

Titanium hex bar grade 2 grade 5 titanium hexagon bar
1. Product Information
Product Name: Titanium Hex Bar
Standard: ASTM B348
Material: GR1, GR2, GR5, GR7, GR12
Shape: Hex
Diameter: 6-50mm
Length: Max 6000mm
Surface: Bright
| Technique | Hot Forging & Hot Rolling |
| Surface Finish | Polishing, or Pickling |
| Shape | hexagonal |
| Application | Industrial, Medical, Petrochemical Industry, etc |
| Feature | Excellent Bearing to Cryogenic property Non-magnetic and Non-toxic Good thermal properties Low modulus of elasticity |
Mechanical Properties:
| Product Form | Condition | Tensile (ksi) | .2% Yield (ksi) | Elongation (%) | Hardness (HRB) |
| Hex & Bar | Hot Finished | 60-85 | 15-45 | 55-35 | 45-80 |
| Hex & Bar | Cold Drawn/Annealed or Hot-Finished/Annealed | 55-75 | 15-30 | 55-40 | 45-70 |
2.Similar titanium material of different country:
| China | America | Russia | Japan | |
| TA1 | Industrially Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | GR2 | BT1-0 | TP340 | |
| TA3 | GR3 | TP450 | ||
| TA4 | GR4 | TP550 | ||
| TC4 | Ti-6Al-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
| TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 |
3. Production Process
Titanium rod processing Flow:
Titanium Sponge and master alloys → Compacting electrodes → Melting → Forging → Billets → Procision forging → Machining → Bars
4. Detailed Images
5. Related Product
6. Quality Assurance:
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
7. FAQ
| FAQ |
| Q1.--How can you ensure the product quality? |
|
--All products are manufactured according to ASTM standard (Bolts are according to ASME MTC Material Test Certification. |
| Q2.--Can you print our LOGO on the products? |
| --Sure, and we welcome the customerized products. |
| Q3.--Can we get the free sample? |
| --Sure. |
| Q4.--What about the payment terms? |
| --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
| Q5.--Do you have your website? |
| --Yes, Please click here. http://www.metalstitanium.com(Independent website) |
| Q6.--What is the necessary information for a inquiry? |
|
--Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
