Place of Origin: | China |
---|---|
Brand Name: | LHTi |
Certification: | ISO9001:2015; TUV; SGS;BV |
Model Number: | Titanium rod |
Minimum Order Quantity: | 50 kg |
Price: | USD16.00-28.00 per kg |
Packaging Details: | Plywood box with soft foam for additional protection |
Delivery Time: | 10-25 work days |
Payment Terms: | T/T, MoneyGram, L/C, Western Union, Paypal |
Supply Ability: | 300000 kg per month |
Diameter: | 6mm-350mm | Material: | Pure/alloy Titanium |
---|---|---|---|
Surface: | Bright,Polished,Pickling | Condition: | Annealed; M |
MOQ: | 50 Kg | Packing: | Standard Export Packing |
Shape: | Round, Square, Flat, Hex | Factory Area:: | 3000 ㎡ |
Standard: | ASTM B348 | ||
High Light: | CNC Machined 6al4v Titanium Rod,Annealed Titanium Alloy Bar,Grade 5 Titanium Alloy Bar |
Annealed Grade 5 titanium (Ti6Al4V) Titanium Alloy Bar
1. Product Information
Material: Gr5 titanium
Standard : ASTM B348,AMS 4928,ASTM F136
Diameter:5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 25mm 28mm 30mm 32mm 35mm 36mm 38mm 40mm 42mm 44mm 45mm 46mm 48mm 50mm etc.
Length: Max L6000mm
Supply status: Annealed
Applications :Industrial,aviation,medical etc.
Package: Carton or plywood case.
Quality and Test : EN10204.3.1 certificate
Surface:CNC machined polished
Gr 5 titanium alloy bar / rod Chemical Composition
Grade | Ti | C | Fe | H | N | O | Al | V |
Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Gr 5 titanium bar / rod Mechanical Properties
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 |
Psi – 128000 , MPa – 880 |
14 % |
Equivalent Grades for Gr 5
STANDARD | WERKSTOFF NR. | UNS |
Titanium Gr. 5 | 3.7165 | N56400 |

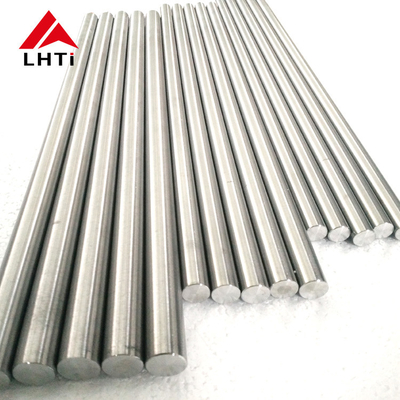

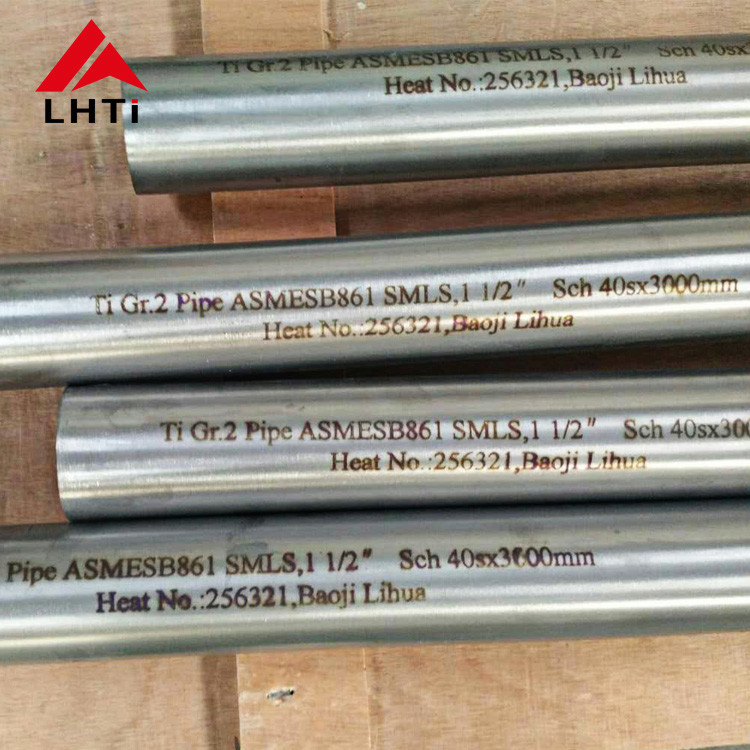

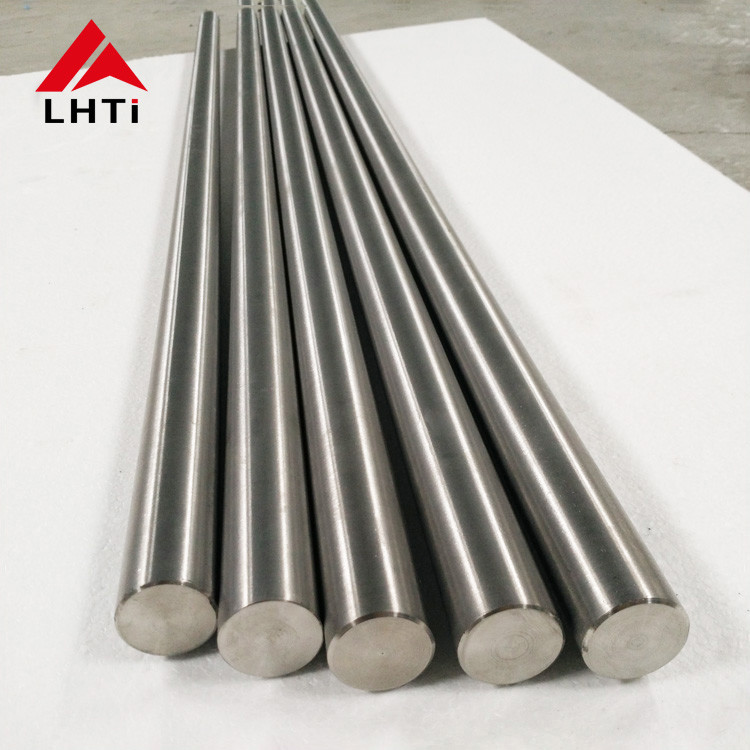

2.Detailed Images
3. Tolerance
Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
Tolerance precision (um) | |||||||
3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) |
4. package
6. Production Process
Titanium rod processing Flow:
Titanium Sponge and master alloys → Compacting electrodes → Melting → Forging → Billets → Procision forging → Machining → Bars
7. Quality Assurance:
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
8. FAQ
FAQ |
Q1.--How can you ensure the product quality? |
--All products are manufactured according to ASTM standard (Bolts are according to ASME MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? |
--Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? |
--Sure. |
Q4.--What about the payment terms? |
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? |
--Yes, Please click here. http://www.metalstitanium.com(Independent website) |
Q6.--What is the necessary information for a inquiry? |
--Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
