| Place of Origin: | Baoji ,Shaanxi ,China |
|---|---|
| Brand Name: | LHTI |
| Certification: | ISO9001:2015; SGS;BV;TUV |
| Model Number: | Titanium welding wire |
| Minimum Order Quantity: | 10kg |
| Price: | USD30-50 per kg |
| Packaging Details: | Inside Plastic bag with laber, outside plastic box, then carton box/plywood case |
| Delivery Time: | 7-10 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, L/C |
| Supply Ability: | 5 tons per month |
| Standard: | Astm B863 | Grade: | Gr1 Gr2 Gr5 Gr7 Gr12 |
|---|---|---|---|
| Diameter: | 1.2mm 2.0mm | Material: | Pure Titanium, Alloy Titanium |
| Shape: | Coil | Product Name: | Titanium Welding Wire |
| Surface: | Pickled, Polished | Marterial: | ER Ti-2 |
| High Light: | Titanium Wire Rolling Spool,MIG Titanium Wire Coil,ER Ti2 Titanium Wire Coil |
||

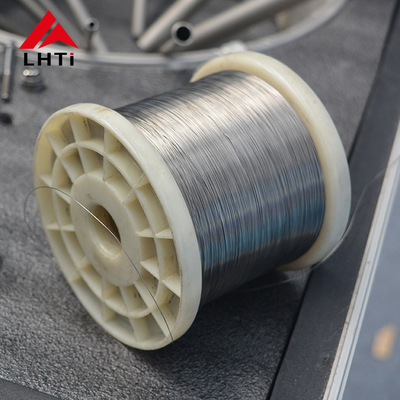

ER Ti-2 MIG wire Dia1.2mm coil 10kg into one rolling spool
| Product name | Titanium welding wire |
| Standard | Astm b863 |
| Material |
Pure Titanium :ER Ti-2 Alloy Titanium :GR5, GR7 ,GR12 |
| Diameter |
Spool wire:φ 0.5mm, 0.6mm, 0.8mm (with wire reel) Coil wire: φ 1.0, 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0mm (no wire reel) Straight wire: φ 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0, 6.0mm (plastic box packing, 1000mm in length) |
| Length |
Spool wire and coil wire :according to weight Straight wire:1000mm, or as customer's request |
| Product situation | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
Titanium wire specifications
A. Titanium wire specifications: φ0.8-φ6.0mm
B. Spectacle titanium wire specification: φ1.0-φ6.0mm special titanium wire
C. Titanium wire specification: φ0.2-φ8.0mm special for hanging tool
Titanium welding wire many Grade
| Chemical composition | |||||||||
| Grade | Essential component<= | Impurities <= | |||||||
| Ti | Al | Mn | V | C | O | N | H | Fe | |
| ERTi-1 | Remainder | — | — | — | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 |
| ERTi-2 | Remainder | — | — | — | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 |
| ERTi-3 | Remainder | — | — | — | 0.03 | 0.13-0.20 | 0.02 | 0.008 | 0.16 |
| ERTi-4 | Remainder | — | — | — | 0.03 | 0.18-0.32 | 0.025 | 0.008 | 0.25 |
| ERTi-5 | Remainder | 5.5-6.75 | — | 3.5-4.5 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 |
| ERTi-23 | Remainder | 5.5-6.5 | — | 3.5-4.5 | 0.03 | 0.03-0.11 | 0.012 | 0.005 | 0.2 |
Production Process of titanium wire:
Titanium sponge→compacting electrodes→melting→forging→bar billets→hot rolling→cold draw→titanium wires
Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, thorns, marks and inclusions. Minor
local scratches, abrasions, spots and pits that do not exceed the allowable deviation of the wire diameter are allowed.

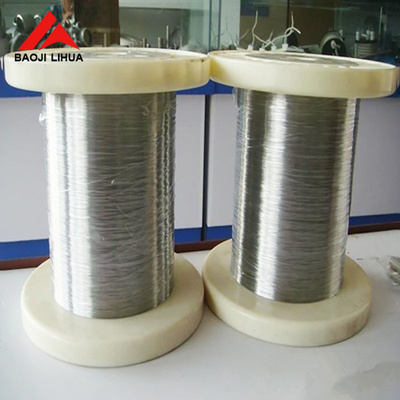

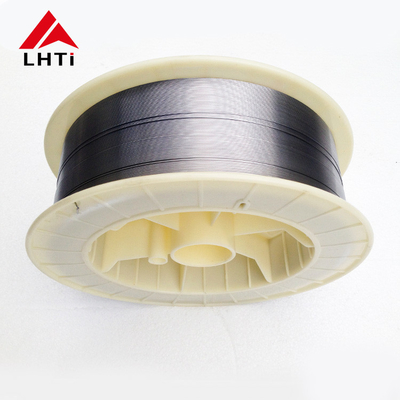

Detailed pictures:
Titanium wire is widely used in heating titanium wire, titanium wire weaving, welding, chemical titanium equipment tower foam titanium broken mesh weaving, 60 mesh titanium packing weaving, electrolytic battery titanium anode mesh manufacturing and other industries. We have more than 15 years experience in manufacturing and exporting titanium wire. Product quality has been widely recognized by domestic and foreign customers. There's a lot in stock.
|
Product name |
Titanium wire |
| Grade | Gr1, Gr2, Gr3,Gr4,Gr5, Gr7, Gr12,Gr23 ect. |
| Standard | ASTM B863,AWS A5.16, ASTM F136, ASTM F67 etc. |
| Size | 0.1-7.0mm |
| Type | 10-15kgs/spool |
| Shape | Spool,coil,straight |
| Surface | Polishing, Pickling |
| Technique | Cold Rolled : Pury titanium (Gr1 /Gr2/Gr4 ) and Gr7 |
| Hot Rolled : Alloy titanium wire except Gr7,when drawn need heating wire ,When the temperature reached 800 degrees Celsius, carries on the drawing |
