Home > products > Titanium Wire > ASTM F136 Titanium Wire Corrosion Resistance For Medical

ASTM F136 Titanium Wire Corrosion Resistance For Medical

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium wire

Payment & Shipping Terms

Minimum Order Quantity: 20 kg

Price: USD16.00-28.00 per kg

Packaging Details: Plastic bag with laber, outside plastic box, then plywod box

Delivery Time: 7-20 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability: 200000 kg per month

Get Best Price
Highlight:

ASTM F136 Medical Titanium Wire

,

Corrosion Resistance Titanium Round Wire

,

Medical Titanium Welding Rod

Material:
ASTM F67/F136 Titanium Wire For Medical Use Factory Supply
Grade:
Gr1, Gr2
Diameter:
0.5mm-3mm
Straight Wire Length:
1000mm-3000mm
MOQ:
20 Kg
Package Box:
5kg Per Plastic Box, Or As Your Request
Certificate:
ISO9001:2008
Processing Service:
Bending, Cutting
Package Coil:
10~15kg ,or As Per Buyer Requirement
Advantage:
Corrosion Resistance, High Strength, Light Quality
Material:
ASTM F67/F136 Titanium Wire For Medical Use Factory Supply
Grade:
Gr1, Gr2
Diameter:
0.5mm-3mm
Straight Wire Length:
1000mm-3000mm
MOQ:
20 Kg
Package Box:
5kg Per Plastic Box, Or As Your Request
Certificate:
ISO9001:2008
Processing Service:
Bending, Cutting
Package Coil:
10~15kg ,or As Per Buyer Requirement
Advantage:
Corrosion Resistance, High Strength, Light Quality
ASTM F136 Titanium Wire Corrosion Resistance For Medical

ASTM F67/F136 Titanium Wire for Medical Use Factory Supply



Delivery State:



1. M (Annealed soft state);

2. R (Processing of soft state);

3. Y (Processing of hard state);

4. D (Memory training, Dedicated Nitinol).



Packing: Soft paper or plastic bag as inside, wooden case as outside,

or according to customer's demand



1. Available Diameter, Type & Packing



Size (mm) Dia 0.5 Dia 0.8 Dia 1.0 Dia 1.2 Dia 1.6 Dia 2.0 Dia 2.4 Dia 2.5 Dia 3.0 Dia 3.2 Dia 4.0
Size (inch) 0.020' 0.031" 0.039" 0.047" 0.062" 0.079" 0.093" 0.098' 0.12" 0.125" 0.16'
Straight
Spool
Coil







2.Guide to choose of filler metal for general purpose titanium welding



ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
  UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7







3.Chemical compostion requirements



AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
  Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25







4. Definition of Different Levels



ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.



ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.



ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.







5. Detailed Images and Application

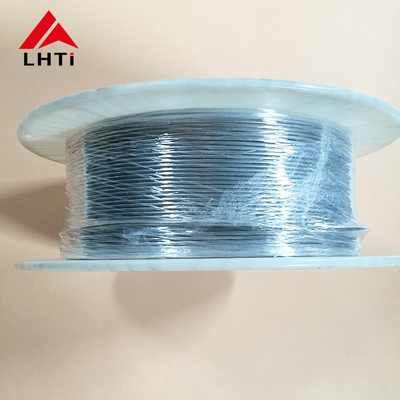

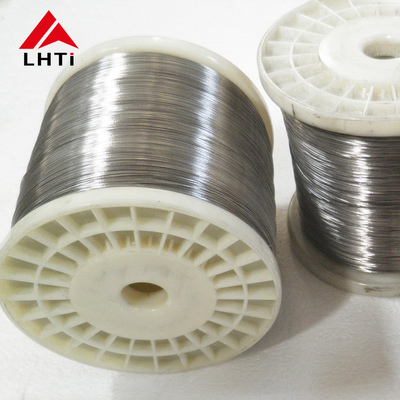

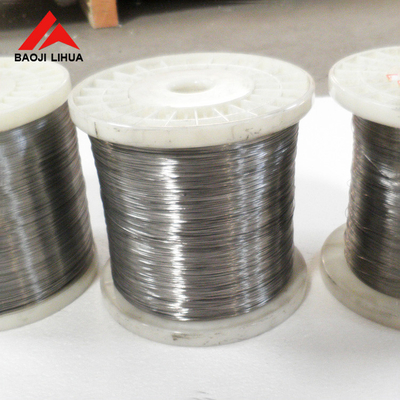

ASTM F136 Titanium Wire Corrosion Resistance For Medical 0

ASTM F136 Titanium Wire Corrosion Resistance For Medical 1







6. Our Service



  • We have the stocks so we would provide our clients the short delivery time.
  • Strict control from raw materials till products finished, so the quality is guaranteed.
  • Customized sizes are offered as well as specified sizes and multiple sizes.
  • Strict quality test from raw material to product.
  • Original mill sheet test reports EN 10204.3.1 is available.







7. FAQ



FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
