AWS Gr2 Raw Titanium Wire Corrosion Resistance 3mm

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium wire
Minimum Order Quantity: 20 kg
Price: USD16.00-28.00 per kg
Packaging Details: Plastic bag with laber, outside plastic box, then plywod box
Delivery Time: 7-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 200000 kg per month
Detail Information
Material: AWS A5.16 Price Of Raw Gr1 Gr2 Titanium Wire Grade: Gr1, Gr2
Diameter: 0.5mm-3mm Straight Wire Length: 1000mm-3000mm
MOQ: 20 Kg Package Box: 5kg Per Plastic Box, Or As Your Request
Certificate: ISO9001:2008 Processing Service: Bending, Cutting
Package Coil: 10~15kg ,or As Per Buyer Requirement Advantage: Corrosion Resistance, High Strength, Light Quality
High Light:

Gr2 Titanium Welding Wire


Corrosion Resistance Pure Titanium Wire


Raw Titanium Alloy Wire

Product Description

AWS A5.16 Price of Raw Gr1 Gr2 Titanium Wire

Delivery State:


1. M (Annealed soft state);

2. R (Processing of soft state);

3. Y (Processing of hard state);

4. D (Memory training, Dedicated Nitinol).


Packing: Soft paper or plastic bag as inside, wooden case as outside,

or according to customer's demand


1. Available Diameter, Type & Packing


Size (mm) Dia 0.5 Dia 0.8 Dia 1.0 Dia 1.2 Dia 1.6 Dia 2.0 Dia 2.4 Dia 2.5 Dia 3.0 Dia 3.2 Dia 4.0
Size (inch) 0.020' 0.031" 0.039" 0.047" 0.062" 0.079" 0.093" 0.098' 0.12" 0.125" 0.16'




2.Guide to choose of filler metal for general purpose titanium welding


ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
  UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7




3.Chemical compostion requirements


AWS A5.16 UNS C O N H I Al V Pd
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25




4. Definition of Different Levels


ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.


ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.


ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.




5. Detailed Images and Application

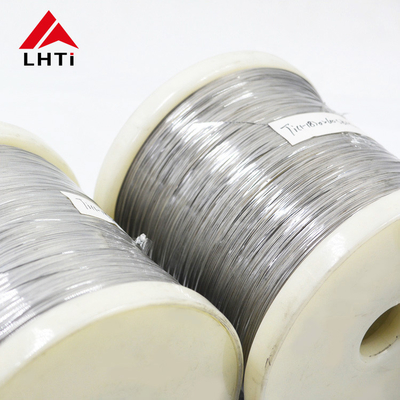

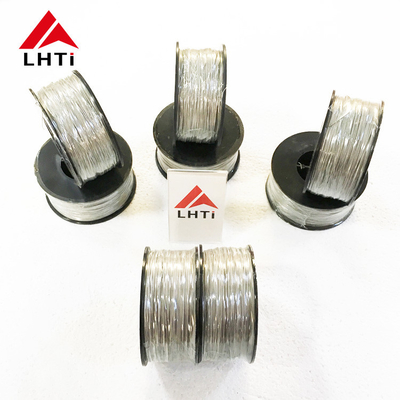

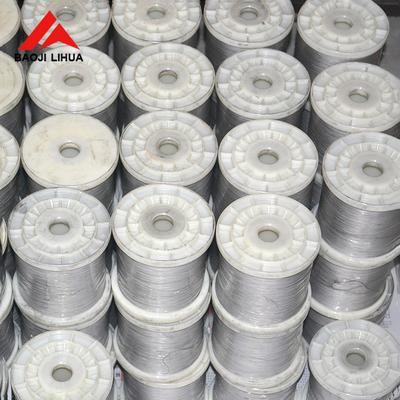

AWS Gr2 Raw Titanium Wire Corrosion Resistance 3mm 0

AWS Gr2 Raw Titanium Wire Corrosion Resistance 3mm 1




6. Our Service


  • We have the stocks so we would provide our clients the short delivery time.
  • Strict control from raw materials till products finished, so the quality is guaranteed.
  • Customized sizes are offered as well as specified sizes and multiple sizes.
  • Strict quality test from raw material to product.
  • Original mill sheet test reports EN 10204.3.1 is available.




7. FAQ


Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.




As a leading manufacturer of titanium products for over 15 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.


If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.
