| Place of Origin: | China |
|---|---|
| Brand Name: | LHTi |
| Certification: | ISO9001:2015; TUV; SGS;BV |
| Model Number: | Titanium rod |
| Minimum Order Quantity: | 50 kg |
| Packaging Details: | Plywood box with soft foam for additional protection |
| Delivery Time: | 10-25 work days |
| Payment Terms: | T/T, MoneyGram, L/C, Western Union, Paypal |
| Supply Ability: | 300000 kg per month |
| Diameter: | 3mm-350mm | Material: | Pure/alloy Titanium |
|---|---|---|---|
| Surface: | Bright,Polished,Pickling | Condition: | Annealed; M |
| MOQ: | 50 Kg | Packing: | Standard Export Packing |
| High Light: | Annealed Steel Welding Rods,Industrial Welding Electrode Rod,GR5 Titanium Welding Rod |
||
GR5 Round Titanium Rod ASTM B348 Annealed Titanium Bar Used In Industry
As a leading manufacturer of titanium products for over 16 years, Baoji Lihua has exported medical titanium bar to many countries, including the US, Ukraine, Egypt, Turkey and Russia etc. The quality of our products is widely recognized. So you should have confidence in our company.
1. Product Information
A. Standard: ASTM B348,ASTM F67,ASTM F136, AMS 4928.
B. Material grade: Grade 1, grade 2, grade 5, grade 9, grade 23(Gr5 ELI).
C. Diameter size in stock: 3mm/6mm/8mm/10mm/20mm/30mm, length: 1000mm-6000mm, or cutting to your needed length
D. Product Status: Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
E. Shape: Round bar, square bar , hex bar
F. Feature: 1.Polished surface without any defects free from cracks no pitting.
2.Two ends flatting making sure length tolerance and good looking.
2. Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
3. Physical Properties
| Physical Properties | |||||
| Tensile Strength(min) | Yield Strength(min) | Elongation(%) | |||
| ksi | MPa | ksi | MPa | ||
| Grade 1 | 35 | 240 | 20 | 138 | 24 |
| Grade2 | 50 | 345 | 40 | 275 | 20 |
| Grade 3 | 65 | 450 | 55 | 380 | 18 |
| Grade 4 | 80 | 550 | 70 | 483 | 15 |
| Grade 5 | 130 | 895 | 120 | 828 | 10 |
| Grade 7 | 50 | 345 | 40 | 275 | 20 |
| Grade 9 | 90 | 620 | 70 | 483 | 15 |
| Grade 12 | 70 | 483 | 50 | 345 | 18 |
| Grade 23 | 120 | 828 | 110 | 759 | 10 |
4. Tolerance
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) |
|||||||

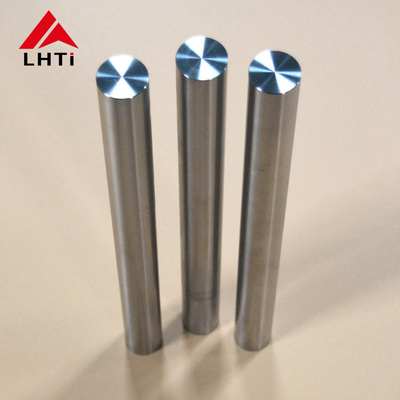

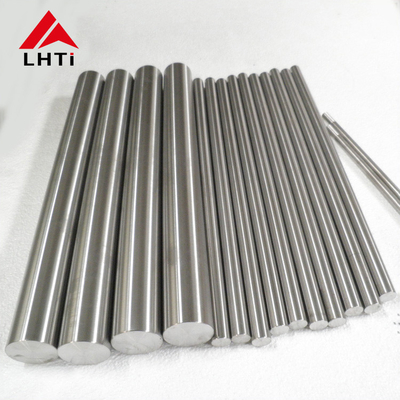

5. Detailed Images
6. Production Process
Titanium rod processing Flow:
Titanium Sponge and master alloys → Compacting electrodes → Melting → Forging → Billets → Procision forging → Machining → Bars
7. Quality Assurance:
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
8. FAQ
| FAQ |
| Q1.--How can you ensure the product quality? |
|
--All products are manufactured according to ASTM standard (Bolts are according to ASME MTC Material Test Certification. |
| Q2.--Can you print our LOGO on the products? |
| --Sure, and we welcome the customerized products. |
| Q3.--Can we get the free sample? |
| --Sure. |
| Q4.--What about the payment terms? |
| --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
| Q5.--Do you have your website? |
| --Yes, Please click here. http://www.metalstitanium.com(Independent website) |
| Q6.--What is the necessary information for a inquiry? |
|
--Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
