Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001
Model Number: TST117
Payment & Shipping Terms
Minimum Order Quantity: 5 piece
Packaging Details: Wooden Case
Delivery Time: 5-10 work day
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5000 piece per week
Place Of Origin: |
China |
Brand Name: |
LHTi |
Technique: |
Stamping |
Grade: |
GR1 |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.7% Min |
Product Name: |
Titanium Disk Titanium Disc |
Shape: |
Round |
Material: |
Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 |
MOQ: |
5 Piece |
Color: |
Silver Gray |
Surface: |
Cold Rolled Bright |
Technology: |
Cold Colled Stamping |
Density: |
4.51g/cm^3 |
Packed: |
Wooden Case |
Purity: |
>99.7% |
Place Of Origin: |
China |
Brand Name: |
LHTi |
Technique: |
Stamping |
Grade: |
GR1 |
Powder Or Not: |
Not Powder |
Ti Content (%): |
99.7% Min |
Product Name: |
Titanium Disk Titanium Disc |
Shape: |
Round |
Material: |
Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 |
MOQ: |
5 Piece |
Color: |
Silver Gray |
Surface: |
Cold Rolled Bright |
Technology: |
Cold Colled Stamping |
Density: |
4.51g/cm^3 |
Packed: |
Wooden Case |
Purity: |
>99.7% |

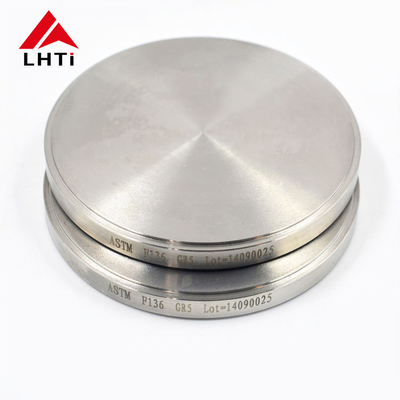

titanium disk titanium disc GR1 GR2 pure titanium discs
Titanium is a chemical element, chemical symbol Ti, atomic number 22, is a silver-white transition metal, characterized by light weight, high strength, metallic luster, also has good corrosion resistance (including seawater, aqua regia and chlorine). Because of its stable chemical properties, good resistance to high temperature, low temperature, strong acid, strong alkali, as well as high strength, low density, is reputed as "space metal". Titanium was discovered by Gregor in Cornwall in 1791 and named by Clapprot after the Titan of Greek mythology.
Titanium is widely used in the medical field. Titanium is close to human bone and has good biocompatibility and no side effects on human tissues. Human body implant is a special functional material closely related to human life and health. Compared with other metal materials, the advantages of using titanium and titanium alloy are mainly as follows:
1. Light weight
2. Low elastic modulus
3. Non-magnetic
4. High strength, good toughness
| titanium disk titanium disc GR1 GR2 pure titanium discs |
| 1. Pure Titanium Gr2 Gr1 |
| 2.Purity:>99.7% |
| 3.Standard: ASTM B265 |
| 4.Shape: Round Sheet |
| 5. Size: Dia 70mm* thickness 1mm |
| 6.Delivery Time:within 10~15 days |
| 7.Payment Term:L/C, D/P, T/T, Western Union |
| 8. titanium grade and material |
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | |||
| component | ksi | MPa | ksi | MPa | ||
| Gr1 | Ta1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | Ta2 | 50 | 345 | 40 | 275 | 20 |
| Gr5 | Ti6Al4V | 130 | 895 | 120 | 828 | 10 |
| Gr7 | Ti-0.2Pd | 50 | 345 | 40 | 275 | 20 |
| Gr9 | Ti-3Al-2.5V | 90 | 620 | 70 | 483 | 15 |
| Gr12 | Ti-0.3Mo-0.8Ni | 70 | 483 | 50 | 345 | 18 |
| Product Names | Dimensions | Grade | Standards | ||
| Outer Diameter | Inner Diameter | Height | |||
| (mm) | (mm) | (mm) | |||
| Disc | 150~300 | / | 20~140 | GR1,GR2,GR5,GR7, GR9,GR12,GR23 |
ASTM B381 |
| 300~500 | / | 25~150 | |||
| 500~600 | / | 30~110 | |||
| Ring | 200~400 | 100~300 | 20~150 | ||
| 400~700 | 150~500 | 30~250 | |||
| 700~900 | 300~700 | 35~300 | |||
| 900~1300 | 400~900 | 50~400 | |||
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.
The factory covers an area of 1800 square meters. Our factory has strong technical equipment. With more than 20 sets of CNC machine tools, milling machines, drilling machines, annual output value of more than 30 million yuan.
The company's products over the years of stable quality, and has passed the ISO9001:2015 certification, BV audit certification.
Over the years, the company has been committed to the improvement and stability of product quality. Based on the business philosophy of customer service maximization.
We warmly welcome you to consult and business negotiation!
