Distillation Towers Titanium Equipment Internal Bubble Cap Plate

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti2
Minimum Order Quantity: 1 pieces
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 20000 pieces per month
Detail Information
Product Name: Float Valve Trays Internals Bubble Cap Tray For Distillation Towers Material: Titanium Nickel Zirconium
Tubesheet Diameter: MaxΦ8600mm Hole Diameter Range: 1.5mm---238mm
Hole Depth: Max1100mm Quality Test: UT,PT
Third-party Testing: Available
High Light:

Distillation Towers Bubble Cap Plate

,

Rapid Prototyping Bubble Cap Plate

,

1.5mm Hole Bubble Cap Plate


Product Description

Float valve Trays Internals Bubble Cap Tray For Distillation Towers



Bubble Cap Tray is a kind of tower internals with many advantages such as low pressure drop, big surface area , high mechanical strength and so on. Bubble Cap Tray is widely used to increase gas-liquid contact area to improve mass transfer efficiency.

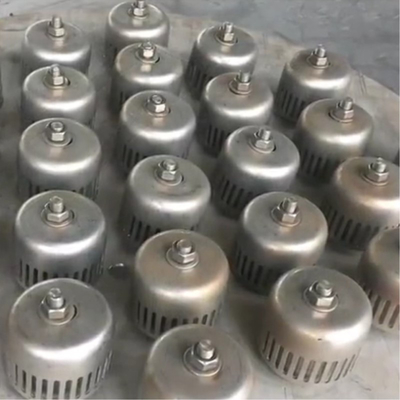

Bubble Cap Tray has riser or chimney fitted over each hole, and a cap that covers the riser. The cap is mounted so that there is a space between riser and cap to allow the passage of vapour. Vapour rises through the chimney and is directed downward by the cap, finally discharging through slots in the cap, and finally bubbling through the liquid on the tray.

high quality bubble cap tray stainless steel  for distillation towers

Function of bubble cap tray

To provide liquid holdup in order to achieve the proper vapor liquid mass transfer that the distillation process requires for separation. The function of the bubble cap tray is to facilitate contact between the vapour phrase and liquid phrase so that mass transfer between the two phrases can take place.

Specifications

high quality bubble cap tray stainless steel  for distillation towers

Advantages

Optimized high turndown

Lowest leakage when compared with Sieve or Valve trays

Used for low liquid and vapor rates

High efficiency

Excellent fouling protection

Applications

Bubble cap tray is used in applications with following features

Very large loading ranges

Very low liquid load

Very low gas load

Continuous liquid holdup

Low leakage rates

Product Display


Item Tower tray for distillation tower
CNC Machining or Not Cnc Machining
Type

Broaching, DRILLING, Etching / Chemical Machining,

Laser Machining, Milling, Other Machining Services, Turning,

Wire EDM, Rapid Prototyping

Material Capabilities Titanium nickel
Micro Machining or Not Not Micro Machining
Place of Origin China
  ShaanXi
Model Number LH-2021-02-03
Brand Name LHTi
Material Titanium
Size Customized Size









Detailed images:

Distillation Towers Titanium Equipment Internal Bubble Cap Plate 2

Distillation Towers Titanium Equipment Internal Bubble Cap Plate 3

 Distillation Towers Titanium Equipment Internal Bubble Cap Plate 4





Application
Bubble-Cap trays have numerous applications in refinery and gas plants.
Model
Material Type
1
2
Norminal Dia. Dg
80
100
150
80
100
150
Slot Height
H
1
20
20
35
20
20
35
2
25
25
-
25
25
-
3
30
32
-
30
32
-
Slot Breadth b1
4
5
R4/13.5
4
5
R4/13.5
Slot Number n
30
32
28
30
32
28
Slot Pitch f
8.38
9.82
17.7
8.38
9.82
17.7
Riser Pore Dia. d1
55
68
106
55
68
106





Related products :





Related Products
Distillation Towers Titanium Equipment Internal Bubble Cap Plate 5



Sieve Trays

100% Response Rate

Distillation Towers Titanium Equipment Internal Bubble Cap Plate 6



Floating Valve Trays

100% Response Rate

Distillation Towers Titanium Equipment Internal Bubble Cap Plate 7



Fixed Valve Trays

100% Response Rate





About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---

It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in

manufacturing titanium products.With more than 14 years export Experience, our products was

sold to Asia, Europe, North America in large quantity.In addition to provide preferential price

for customers, we pay much attention to quality, and have a good after-sales service.

All products we produced are based on the standard: Amecian standard,German standard ,

Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is

certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,

LR'S ,TUV and other international inspection agency .Third party test is available.

Distillation Towers Titanium Equipment Internal Bubble Cap Plate 8





Packing and shipping:

We suggest you pack them in plywood cases. Because we have to consider safety and freight.

In plywood cases, we usually put the product in a plastic bag, which is filled with protective pearl wool or foam film to prevent the product from being scratched.

The most important thing is that we have to make sure that the product is safe in transit and that you have to pay less for shipping.

Distillation Towers Titanium Equipment Internal Bubble Cap Plate 9
Packing&Shipping
Distillation Towers Titanium Equipment Internal Bubble Cap Plate 10
FAQ
Q1.What strength does the factory have? A:The world's most advanced 5g + intelligent digital chemical factory has been established, which is the first industrial 4.0 operation mode in the field of mass transfer in the world. Q2.what's your Storage capacity of warehouse?
A:We have built the first intelligent three-dimensional warehouse in the industry, with a capacity of 80000 cubic meters.A total of 2466 locations, it can meet 40 days no delivery.
Q3.What is the production capacity of the factory? A:The annual production capacity is 300000 cubic meters.
Q4. How many people are there in the factory?
A:There are 300 employees in total.
Q5.What is the company's philosophy? A:Excellent in quality, loyal to integrity.
