Gr2 Gr5 Titanium Hemispherical Dish Head B337

Brand Name:	LHTi
Model Number:	Titanium Eqiupment
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	5000 Pieces Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaanxi, China

Certification:

ISO9001, CE, API,etc

Wall Thickness:

0.2-30mm

Air Inflow:

50m3/h

Design:

Sleek And Modern

Inspection:

Hydrostatic And Pneumatic

After Warranty:

Video Technical Support, Online Support

Tube Plate Material:

Titanium Steel Composite

Power:

3kw

Technology:

Titanium Alloy

Pressure:

150#-2500#

Technique:

Seamless. Welded

Applications:

Pressure Vessel Equipment And Boilers

Product Type:

Equipment

Third Party Testing:

Available

Standard:

ASTM B337

Structure:

Tube Heat Exchanger

Packaging Details:

All goods are packed by seaworth shipment materials or required by buyer

Supply Ability:

5000 Pieces Per Month

Highlight:

Gr5 Titanium Dish Hemispherical Head

Hemispherical Head Titanium Dish

Hemispherical Head Titanium Equipment

Product Description

Gr2 Gr5 Titanium Hemispherical Dish Head B337

Titanium dish shaped and hemispherical heads are formed end closures used on pressure vessels, reactors and heat exchangers in chemical processing, petrochemical plants and general industry. They are made in Grade 2 and Grade 5, so the same head shape is available either in a formable, weldable commercially pure grade or in a high strength Ti-6Al-4V grade. Wall thickness runs from 0.2 mm to 30 mm and the heads are supplied to ASTM B337.

Technical Specifications

Standard	ASTM B337
Wall Thickness	0.2 - 30 mm
Pressure	150# - 2500#
Technique	Seamless and welded
Structure	Tube heat exchanger and pressure vessel
Inspection	Hydrostatic and pneumatic testing
Third Party Testing	Available
Application	Pressure vessel equipment and boilers

Grade 2 and Grade 5 Comparison

Grade	Composition	Key Character	Best Use
Gr2	Commercially pure titanium	Good corrosion resistance, easy to form and weld	Chemical tanks, storage vessels, marine and seawater lines
Gr5	Ti-6Al-4V, about 90% Ti, 6% Al, 4% V	Higher strength, good fatigue and temperature resistance	High stress heads, reactors and heat exchangers

Forming and Quality Control

Gr2 titanium resists most acids, chlorides and salt water, so a Gr2 head keeps its surface in chemical tanks, storage vessels and marine equipment where a steel head would corrode. Gr5, also known as Ti-6Al-4V, adds strength, temperature resistance and fatigue resistance, which suits heads that carry higher stress. Each head is checked by hydrostatic and pneumatic testing, and third party testing can be arranged when the project requires it.

Product Pictures

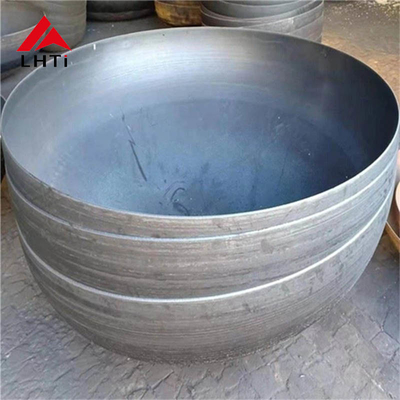

Gr2 Gr5 titanium hemispherical dish head

Titanium dish shaped head for pressure vessel

Titanium hemispherical head ASTM B337

Applications

Pressure vessels, chemical storage tanks, reactors, boilers, seawater desalination equipment and shell and tube heat exchangers. Diameter, thickness and material grade can be produced to the drawing, and small trial quantities are available.
