|Place of Origin:||China|
|Certification:||ISO9001:2015; TUV; SGS|
|Model Number:||Titanium venturi|
|Minimum Order Quantity:||1sets|
|Packaging Details:||titanium shell and tube heat exchanger packaging :Standard exporting package.|
|Delivery Time:||In stock--3 days.production--15-20 working days|
|Supply Ability:||1000 Set/Sets per Month|
|Name:||Pressure Vessel Fermetor Reactor Factory Supplier||Materials:||Titanium, Nickel, Titanium Molybdenum Nickel, Titanium Target, Nickel Base Alloy ,625,600, Etc|
|Core Components:||Pressure Vessel||Structure:||Tube Heat Exchanger|
|Maximum Working Pressure:||3.0MPa||Liquid Flow Rate:||2.5m/s|
|Voltage:||220v/380v/customized||Product Type:||Hydrostatic And Pneumatic|
|Inspection:||Hydrostatic And Pneumatic||Application:||Heat Transfer|
TUV Heat Transfer Titanium Equipment,
2.5m/S Pressure Vessel Reactor,
3.0MPa Pressure Vessel Reactor

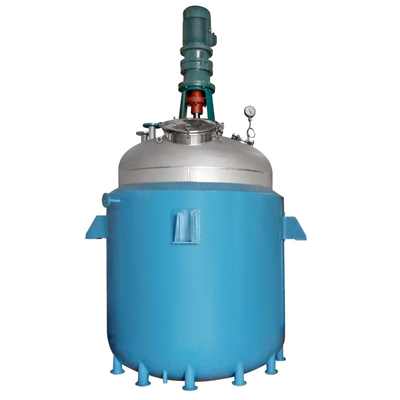

Pressure Vessel Fermetor Reactor factory supplier
The general understanding of the reaction kettle is the container of physical or chemical reaction. Through the structural design and parameter configuration of the container, the heating, evaporation, cooling and low speed mixing functions required by the process are realized.
Reaction kettle is a container used to complete the mixing and reaction process of substances in the chemical industry, and one of the equipment for the chemical and physical reaction process of materials. It is usually composed of kettle body, heat transfer, transmission, stirring and sealing. After all, there are a few reactors without stirring. The key technology of the reaction principle of the reactor is stirring. Different reactions and stirring selection are different.
The design of the reactor is complex. A series of parameters of the reactor need to be determined according to the pressure and temperature in the reactor and the nature of the material. For example, the wall thickness will be different if the pressure is different. Temperature is different, the washing scheme of mechanical seal will have a great difference; The kettle material is corrosive, so the kettle material and stirring material will be different.
Reaction kettle is widely used in petroleum, chemical, rubber, pesticides, dyes, medicine and food fields, is used to complete vulcanization, nitrification, hydrogenation, alkylation, polymerization, condensation and other processes of the pressure vessel, such as reactor, reaction pot, decomposition pot, polymerization kettle and so on; Material generally have carbon manganese steel, stainless steel, zirconium, nickel base (Hastelloy, Monel, incone nickel) alloy and other composite materials.
The overall structure of the reaction kettle. Overall structure of the reactor vertical vessel center stirring reactor is mainly composed of stirring device, sealed installation and stirring tank. In the reaction kettle, in order to speed up the reaction speed, enhance mixing and enhance the effect of mass or heat transfer,
|Material||titanium /stainless steel/carbon steel optional|
|Heat exchanger area||according to working conditions|
|Working/Design temperature||according to the design optional|
|Pressure||according to the design optional|
|Application||oil, chemical, pharmacy, food, electricity, paper…|
Usage & Applications:
The shell and tube exchanger is a kind of heat exchanger that widely applied for chemical and alcohol production. It is mainly composed of the shell, tube sheet, heat exchanging tube, sealing head, baffle plate, ect. It can be made of stainless steel, duplex stainless steel ,Titanium (Ti), carbon steel... During the heat exchanger, a king of fluid enters from the tube connection of the sealing head, flows in the tube and exits from the other tube connection of the shell and exits from the other tube connection of the shell, which is called shell pass.
Shell and tube heat exchanger belongs to petrochemical equipment, is composed of a tube box, a shell and a tube bundle, and so on. The U shaped tube heat exchanger has only one tube plate, and both ends of the pipe are fixed on the same pipe plate. In addition, in order to make up for the reduction of the pipe wall of the elbow, the straight pipe part of the wall thickness of the pipe. This affected the use of the occasion, it is only suitable for pipe shell wall temperature difference is larger, or the shell side of the medium is easy to scale and the pipe is clean and not easy to scale, high temperature, high pressure, corrosion of the situation.
Our water to air heat exchanger can be Non-standard customized made and following international certifications, such as ASME,GB,CE,ISO ect.
