Home > products > Titanium Tube > ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger

ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger

Product Details

Place of Origin: BaoJi Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-01

Payment & Shipping Terms

Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size

Packaging Details: Each tube with environmental protection bags,outside is standard plywood case

Delivery Time: 15-30 working days

Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc

Supply Ability: 5 tons per month

Get Best Price
Highlight:

Gr2 Titanium Pipe

,

38mm Titanium Pipe

,

ASTM SB338 Titanium Pipe

Key Words 1:
ASTM SB338 Titanium Tube
Key Words 2:
GR2 Titanium Pipe
Key Words 3:
Titanium Pipe For Heat Exchanger
Material:
Pure Titanium
Grade:
Grade 2
Purity:
99.5%min
Length:
Max 12 Meter
Surface:
Pickling Surface
Application:
Heat Exchanger
Payment Term:
T/T,Paypal,Western Union Etc
Key Words 1:
ASTM SB338 Titanium Tube
Key Words 2:
GR2 Titanium Pipe
Key Words 3:
Titanium Pipe For Heat Exchanger
Material:
Pure Titanium
Grade:
Grade 2
Purity:
99.5%min
Length:
Max 12 Meter
Surface:
Pickling Surface
Application:
Heat Exchanger
Payment Term:
T/T,Paypal,Western Union Etc
ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger

 10mm 12mm 14mm 16mm 19mm 20mm 25mm 32mm 38mm gr2 grade 2 titanium pipe for heat exchanger



The commonly used size of heat exchange tube (outer diameter x wall thickness) is mainly Φ 19mmx2mm, Φ 25mmx2.5mm and Φ 38mmx2.5mm seamless pipe and Φ 25mmx2mm and Φ 38mmx2.5mm pipe. Standard pipe lengths include 1.5, 2.0, 3.0, 4.5, 6.0, 9.0m, etc. The adoption of small tube diameter can increase the heat transfer area per unit volume, compact structure, reduce metal consumption and improve the heat transfer coefficient. It is estimated that the heat exchange tubes of heat exchangers with the same diameter will be Φ Change 25mm to Φ 19mm, the heat transfer area can be increased by about 40% and the metal can be saved by more than 20%.



Standard: ASTM B338

Product Name: Titanium seamless pipe for heat exchanger

Material: Gr2

Type: Seamless

Shape: Round

Outer Diameter: 10mm 12mm 14mm 16mm 19mm 20mm 25mm 32mm 38mm 40mm 45mm 50mm 57mm etc

Customized OD is available

Wall Thickness: 1.24-30mm

Length: Max 16000mm

Surface: Bright



Chemical composition (Wt%)

ASTM No.

Fe max

O max

N max

C max

H max

Pd

Al

Bal

Grade 2

0.3

0.25

0.03

0.1

0.015

-

-

Ti



Physical Properties (Min)

ASTM Grade

Alloy  Composition

Tensile Strength

Yield Strength

Elongation min %

ksi

Mpa

ksi

Mpa



Grade 2

Unalloyed Ti ("Pure") 50A -CP2

58

400

40

275

25



Detailed images:

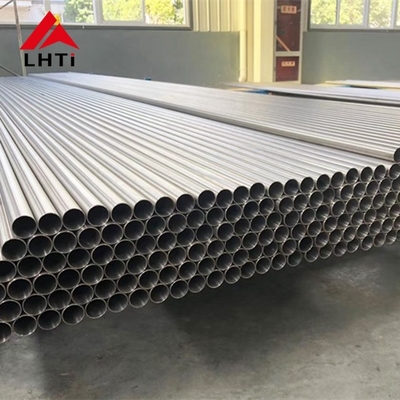

 ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger 0

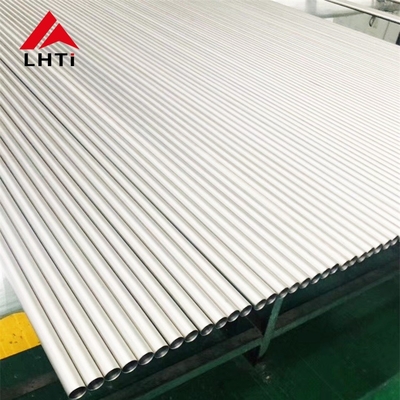

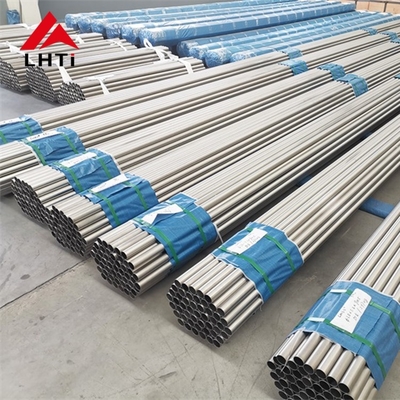

ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger 1 ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger 2ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger 3





Titanium tube Size List


1). The titanium tube has plasticity. The elongation of high purity titanium tube can reach 50 ~ 60% and the reduction of the section can reach 70 ~ 80%. Although the strength of high purity titanium tubes is low, the mechanical properties of pure industrial titanium can be significantly enhanced by a small number of impurities and the addition of alloying elements, so that its strength can be compared with that of high strength. This means that the industrial pure titanium pipe, as long as there is a small number of clearance impurities and other metal impurities, it can be made both with high strength, and proper plasticity.

2). The specific strength (strength to weight ratio) of the industrial pure titanium tube is very high in the metal structure materials, its strength, and steel, but its weight is only 57% of the steel.

3). The heat resistance of the titanium tube is very strong, and it can maintain good strength and stability in the atmosphere of 500℃.

4). Titanium tube also has good low-temperature resistance, even at -250℃ ultra-low temperature, it still has a high impact strength, can withstand high pressure and vibration.

5). Strong corrosion resistance, which is due to its strong affinity to oxygen, can generate a dense oxide film on its surface, which can protect titanium from medium corrosion. Therefore, titanium has good stability in acid, alkaline, neutral salt solution and oxidizing medium, better than existing stainless steel and other non-ferrous metals corrosion resistance.

ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger 4



OD (mm) WT (mm) OD (mm) WT (mm) OD (mm) WT (mm)
3.3 0.25 24 0.7 33.4 4.55
4 0.25 25 0.5 38 1.2
4.9 0.3 25 0.7 38.1 1.24
6.35 0.889 25 1.5 40 0.5
12.7 0.8 25 2 45 1.5
15.88 0.5 25 2.2 45 2
15.88 0.71 25.4 0.89 48.26 1.65
19 0.508 25.4 1.07 48.3 5.08
19 0.711 25.4 1.473 50.8 0.7
19 0.9 25.4 2.108 50.8 0.889
19 1.24 26.67 2.11 50.8 0.9
19.05 0.56 26.67 3.912 51 1.5
19.05 0.9 31.75 0.7112 56 0.8
19.05 1.24 31.75 0.889 60.3 1.5
19.05 1.65 31.75 1 60.325 0.889
19.05 3 31.8 0.89 62 2
21.34 2.11 33.4 2.77 89 2
24 0.5 33.4 3.38 114.3 3.05



Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes



Titanium Pipe to Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Cement

ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger 5



Packing details:
PVC packing, carton packing, or as customer request plywood case.
ASTM B861 Titanium Alloy Seamless Pipe have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance.

ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger 6







LHTI is one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.



We still have Titanium flange,titanium bends,titanium Pipe fittings etc.More details please feel free contact us.

ASTM SB338 32mm 38mm Gr2 Titanium Pipe For Heat Exchanger 7



Standard: ASTM B338

Product Name: Titanium seamless pipe for heat exchanger

Material: Gr1, Gr2

Type: Seamless

Shape: Round

Outer Diameter: 10mm 12mm 14mm 16mm 19mm 20mm 25mm 32mm 38mm 40mm 45mm 50mm 57mm etc

Customized OD is available

Wall Thickness: 1.24-30mm

Length: Max 16000mm

Surface: Bright



Chemical composition (Wt%)

ASTM No.

Fe max

O max

N max

C max

H max

Pd

Al

Bal

Grade 1

0.2

0.18

0.03

0.1

0.015

-

-

Ti

Grade 2

0.3

0.25

0.03

0.1

0.015

-

-

Ti



Physical Properties (Min)

ASTM Grade

Alloy  Composition

Tensile Strength

Yield Strength

Elongation min %

ksi

Mpa

ksi

Mpa



Grade 1

Unalloyed Ti ("Pure") 35A -CP1

35

240

25

170

30

Grade 2

Unalloyed Ti ("Pure") 50A -CP2

58

400

40

275

25
