|Place of Origin:||China|
|Minimum Order Quantity:||1 pieces|
|Packaging Details:||Standard export packing,plywood case outside|
|Delivery Time:||15-30 Days|
|Payment Terms:||L/C,D/P, T/T etc.|
|Supply Ability:||20000 pieces per month|
|Product Name:||Titanium Alloy Tube Sheet Tubesheet CNC Machining Of Titanium Alloy Parts Turning||Material:||Grade 1 Grade2 Grade5 Grade7 Grade12 Titanium|
|Standard:||ASTM/ASME B265,ASTM/ASME B381||Tubesheet Diameter:||MaxΦ8600mm|
|Hole Diameter Range:||1.5mm---238mm||Hole Depth:||Max1100mm|
|Quality Test:||UT,PT||Third-party Testing:||Available|
ASME B381 Titanium Equipment,
CNC Titanium Exchanger Tube Sheet,
Gr7 Titanium Exchanger Tube Sheet

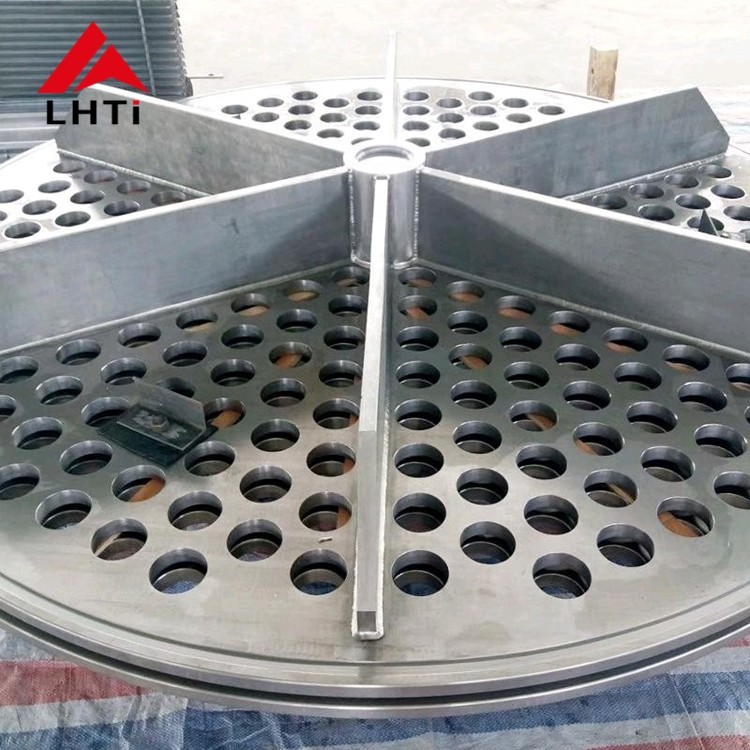

Titanium alloy tube sheet tubesheet CNC machining of titanium alloy parts Turning
Tubesheet, is a circular plate drilled with holes of the same diameter of the pipe , is the heat exchanger to fix the pipe and sealing medium role of the round plate. An accessory that does this by passing a pipe through and soldering it in place.Titanium tubesheet is a tubesheet made of titanium.
The precision of tube plate processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, greatly affect the assembly and performance of the chemical equipment listed above.
With the upsizing of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with a diameter of 4m-5m is very common. Large tubesheet is characterized by a large number of tube holes, dense, small aperture, deep, high precision and finish requirements.
Tubesheet is widely used in tubular heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other industries.
Tubeplate is mainly used in chemical vessels, such as tubular heat exchanger, pressure vessel, boiler, condenser, central air conditioning, evaporator, seawater desalination, to support the role of fixed tube, metal material makes it not only has strong rigidity, but also has great heat conduction performance.
|Item||Titanium tubesheet/ Ti Tube sheet|
|CNC Machining or Not||Cnc Machining|
Broaching, DRILLING, Etching / Chemical Machining,
Laser Machining, Milling, Other Machining Services, Turning,
Wire EDM, Rapid Prototyping
|Micro Machining or Not||Not Micro Machining|
|Place of Origin||China|
|Grade||Fe max||O max||N max||C max||H max||Pd||Al||V||Mo||Ni||Elong'n||
According to the different environment, people need to use different materials tubesheet, generally use Q345R container plate, such as first and second pressure vessels, no corrosive medium flow, the use of carbon steel composite plate. In the case of strong acid, high pressure and high temperature, nuclear energy and other environments, stainless steel, 16 manganese, titanium alloy and other corrosion-resistant materials are needed. The application of new synthetic materials brings new vitality to tube-sheet products.
Titanium tubesheet used in heat exchanger:
About our company:
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---
It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in
manufacturing titanium products.With more than 14 years export Experience, our products was
sold to Asia, Europe, North America in large quantity.In addition to provide preferential price
for customers, we pay much attention to quality, and have a good after-sales service.
All products we produced are based on the standard: Amecian standard,German standard ,
Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is
certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,
LR'S ,TUV and other international inspection agency .Third party test is available.
Packing and shipping:
We suggest you pack them in plywood cases. Because we have to consider safety and freight.
In plywood cases, we usually put the product in a plastic bag, which is filled with protective pearl wool or foam film to prevent the product from being scratched.
The most important thing is that we have to make sure that the product is safe in transit and that you have to pay less for shipping.
Welcome to contact!
