Product Name: |
Custom Ti Tubesheet Manufacturer/titanium Tubesheet Price/ Titanium Tube Sheet For U-Tube Bundle Heat Exchanger |
Material: |
Grade 1 Grade2 Grade5 Grade7 Grade12 Titanium |
Standard: |
ASTM/ASME B265,ASTM/ASME B381 |
Tubesheet Diameter: |
MaxΦ8600mm |
Hole Diameter Range: |
1.5mm---238mm |
Hole Depth: |
Max1100mm |
Quality Test: |
UT,PT |
Third-party Testing: |
Available |
Product Name: |
Custom Ti Tubesheet Manufacturer/titanium Tubesheet Price/ Titanium Tube Sheet For U-Tube Bundle Heat Exchanger |
Material: |
Grade 1 Grade2 Grade5 Grade7 Grade12 Titanium |
Standard: |
ASTM/ASME B265,ASTM/ASME B381 |
Tubesheet Diameter: |
MaxΦ8600mm |
Hole Diameter Range: |
1.5mm---238mm |
Hole Depth: |
Max1100mm |
Quality Test: |
UT,PT |
Third-party Testing: |
Available |
Custom Ti tubesheet manufacturer/titanium tubesheet price/ titanium tube sheet for U-Tube Bundle Heat Exchanger
The tubesheet is in contact with both fluids and must therefore be corrosion-resistant and have metal-metallurgical and electrochemical properties suitable for fluid and velocity. Titanium is a good material to meet this, it has a good corrosion resistance to salt water and chromic acid.
The hole pattern or "pitch" changes the distance from one tube to another, as well as the relative Angle and flow of the tube to the other. This allows the manipulation of fluid velocity and pressure drop, and provides maximum turbulent volume and tube surface contact for effective heat transfer.
Common Materials: Gr1 Gr2 Gr5 Gr7 Gr12 titanium
Flexible Holes:round,tapered, elliptical, lumbar, square, tooth, diamond , irregular
Special Process:drilling & boring, drilling & twisting, drilling & reaming
Shape:round, rectangle, irregular shape
Diameter:100-4500 mm
Thickness:100-2500 mm
| Grade | Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n |
Σb (Mpa) |
σr0.2 (Mpa) |
| No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
| Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | 24 | 240 | 140 | |||||
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 20 | 400 | 275 | |||||
| Grade 5 | 0.4 | 0.2 | 0.05 | 0.1 | 0.015 | 5.5-6.7 | 3.5-4.5 | 10 | 895 | 828 | |||
| Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | 20 | 400 | 275 | ||||
| Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.3 | 0.8 | 18 | 460 | 300 |
1 For short hole tube sheet: diameter range: φ 1.5mm--238mm
2 For deep hole tube sheet: diameter range: φ 12mm-- 50mm
3 Maximum hole depth: 1100mm
4 Maximum tube sheet diameter: φ 8600mm
5 Irregular holes can be welded with electrode.
The tube hole pattern or "pitch" varies the distance from one tube to the other and angle of the tubes relative to each other and to the direction of flow. This allows the manipulation of fluid velocities and pressure drop, and provides the maximum amount of turbulance and tube surface contact for effective Heat Transfer.

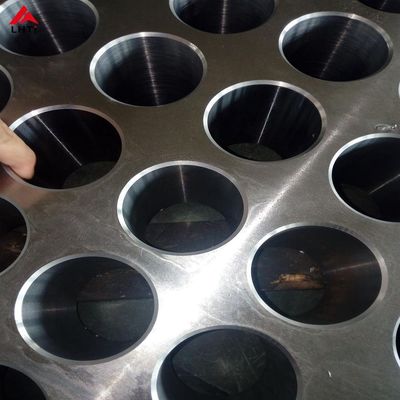

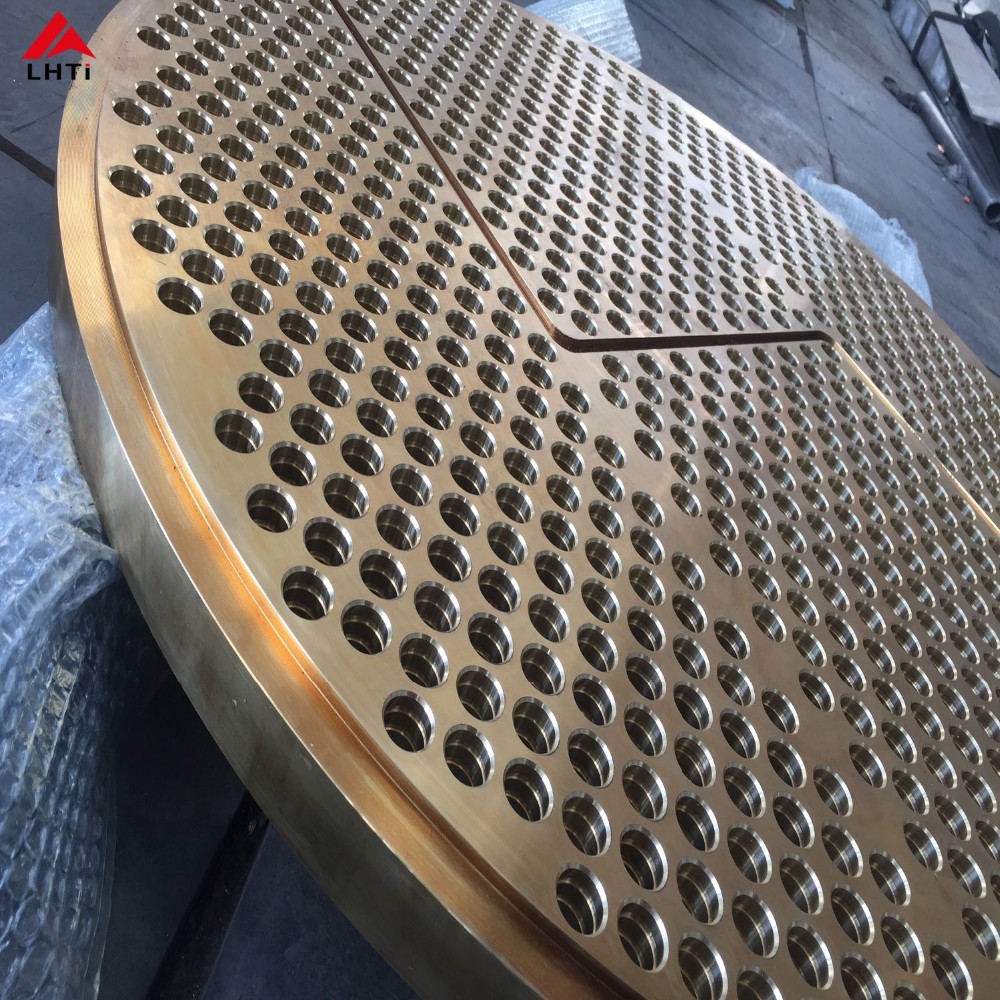

Detailed images:

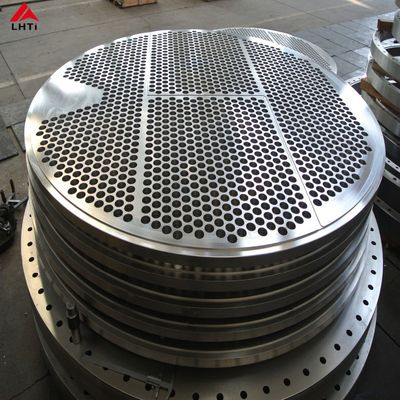

Titanium tubesheet used in heat exchanger:
