Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium rod
Payment & Shipping Terms
Minimum Order Quantity: 100 kg
Price: USD18.00-31.00 per kg
Packaging Details: Plywood box with soft foam for additional protection against any shipping-induced trauma
Delivery Time: 15-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 300000 kg per month
Material: |
Pure Titanium, Alloy Titanium |
Color: |
Natural |
MOQ: |
100 Kg |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed;M |
Diameter: |
6mm-350mm |
Material: |
Pure Titanium, Alloy Titanium |
Color: |
Natural |
MOQ: |
100 Kg |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed;M |
Diameter: |
6mm-350mm |
Titanium Rod Titanium Bar,all grades and sizes are customized
1. Product Information
1. Standard: ASTM B348, ASTM F136, ASTM F67, AMS4928
2. Technical requirements
1: The chemical composition of titanium and titanium alloy around bars shall comply with the provisions of GB / T 3620.1, and when repeated inspection is required, the allowable deviation of the chemical composition shall comply with the provisions of GB / T 3620.2.
2: The diameter or side length of the hot-processed titanium round bar and its allowable deviation should meet the requirements of Table 1.
3: After hot working, the diameter of the cold-drawn titanium bar and the cold-rolled bar (ground) and cold-rolled bar should be in accordance with the requirements of Table 2.
4: The out-of-roundness of the bar after turning (grinding) after hot processing should not be greater than half of its dimensional tolerance.
5: The length of the indeterminate length of the processed titanium round bar is 300-6000mm, and the length of the annealed bar is 300-2000mm. The length of the fixed length or multiple length should be within the length of the indefinite length. The allowable deviation of the fixed length is + 20mm ; The length of the double ruler should also be included in the cut amount of the bar, each cut amount is 5mm. The fixed ruler or double ruler length should be indicated in the contract.
2. Physical Properties
Physical Properties | |||||
Tensile Strength(min) | Yield Strength(min) | Elongation(%) | |||
ksi | MPa | ksi | MPa | ||
Grade 1 | 35 | 240 | 20 | 138 | 24 |
Grade2 | 50 | 345 | 40 | 275 | 20 |
Grade 3 | 65 | 450 | 55 | 380 | 18 |
Grade 4 | 80 | 550 | 70 | 483 | 15 |
Grade 5 | 130 | 895 | 120 | 828 | 10 |
Grade 7 | 50 | 345 | 40 | 275 | 20 |
Grade 9 | 90 | 620 | 70 | 483 | 15 |
Grade 12 | 70 | 483 | 50 | 345 | 18 |
Grade 23 | 120 | 828 | 110 | 759 | 10 |
3. Production Process
Titanium rod processing Flow:
Titanium Sponge and master alloys → Compacting electrodes → Melting → Forging → Billets → Procision forging → Machining → Bars

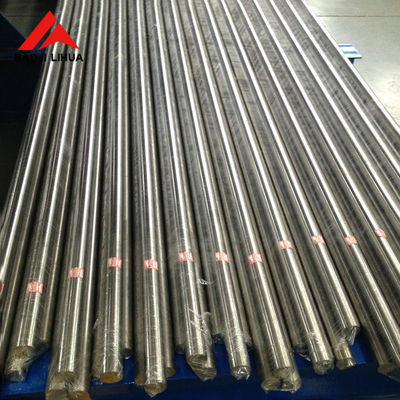

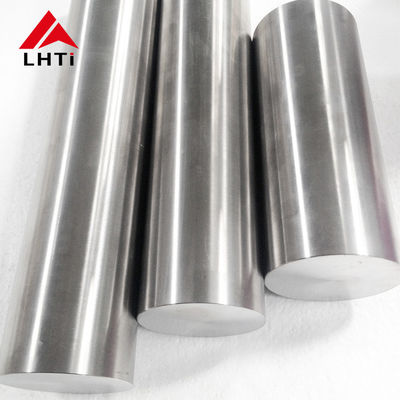

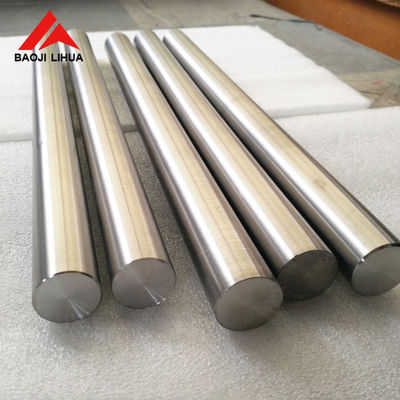

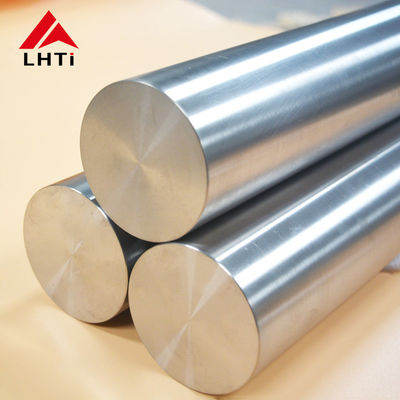

4. Detailed Images
5. Packing and Shipping:
Our company strictly follows the standard export packaging and to package goods. Inside is pearl cotton
and foam film to reduce the impact and friction of the cargo. Goods under 10kg are generally packed in cartons;
goods over 10kg are generally packed in plywood boxes. The inside and outside of the packaging box are kept clean.
The outer packaging is wrapped with tape or steel strips--- very strong and firm to ensure that the goods are intact
when the customer receives them.
The courier companies we long-term cooperated mainly include FedEx, DHL, TNT, UPS etc.
Air and sea shipping ,we always choose safe and speed international routes.
For transportation, we always choose different express and routes according to customers in different countries
to save purchasing costs for customers.
6. Quality Assurance:
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
7. FAQ
Q1.--How can you ensure the product quality?
--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the
MTC Material Test Certification.
Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
05.--What is the necessary information for a inquiry?
--Product name, specification, material grade and quantity. If customized products, your drawing and
special requests also needed.
