SGS Gr2 Pure Titanium Wire 1000mm Length Pickling Surface

Basic Information
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: LH-12
Minimum Order Quantity: 10 kg
Packaging Details: Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: In stock--3 days.production--15-20 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Detail Information
Product Name: ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price Grade: Grade1 Grade2 ErTi1 ErTi2
Shape: Coil,spool,straight Material: Pure Titanium
Surface: Pickling Surface/polish Surface Package: Standard Export Package
Hot Sale Diameter: 0.8mm-5mm Etc Length: 1000mm
Key Words: Thin Titanium Wire
High Light:

Gr2 Pure Titanium Wire


1000mm Length Pure Titanium Wire


Pickling Surface Pure Titanium Wire

Product Description

Titanium Welding Wire ErTi-5 1mm 1.6mm 2mm For MIG TIG AWS A5.16


1. Products information


Grade : TA1,TA2,TC4,Gr7,Gr12,Gr23 ,ErTi-1,ErTi-2,ErTi-5,ErTi-7 etc
Standard : ASTM B863 (for industrial) / AWS a5.16(for welding)
Diameter : 0.8-6.0mm
Shape : coil,spool,straight.
Surface : pickling surface/bright surface

Application : industrial,welding,macine parts,medical etc

Welding wire analysis%:
C <0.08
Fe <0.25
O <0.18
H <0.013
N <0.05
Ti: balance


Gr1/Gr2/ErTi-1/ErTi-2 dia=0.8mm/1.0mm/1.2mm/1.6mm/2.0mm/2.4mm/2.5mm/3.0mm/3.5mm in stock,ensure delivery 3-5 days

Gr5/ErTI-5/Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity

Gr12/ErTi-12 need production,lead time 10 working days




Common Ti Wires Tolerance
Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm
Tolerance +/- 0.025 +/-0.04 +/-0.05
Length 200-500mm 500-1000mm 1000-2000mm
Tolerance +/-1.0 +/-1.5 +/-2.




Grade Tensile Strength (min) Yield strength 0.2%Offset Elongation in 2in. or 50mm % (min)
Ksi Mpa Ksi Mpa
Gr1 35 240 20 138 20
Gr2 50 345 40 275 18
Gr3 65 450 55 380 18
Gr5 130 895 120 828 10
Gr7 50 345 40 275 18
Gr12 70 483 50 345 18




2. Titanium wire---Three kinds of type for your choose


Titanium wire in Spool--dia<6.0mm ,if you need we can make spool wire
                                          dia1.0-2.0mm,Precision winding,used for MIG
                                          dia0.2mm-3.0mm,thin wire,used for titanium mesh
Spool OD=270mm to 300mm,one spool wire weight is about 6-10kgs.or as per requirment


Titanium wire in coil--dia>2.0mm,we can make Coil wire
Coil OD = 450mm,one coil weight is about 10-15kg,or as per requirment

Titanium wire in straight--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to 1000mm
90% titanium straight wire used for welding(TIG filler rod)


SGS Gr2 Pure Titanium Wire 1000mm Length Pickling Surface 0



3. Welding show--titanium wire for TIG and MIG


Titanium Wire is slivery metal with excellent properties. Density is 4.54g/cm³ lighter than Steel. But mechanical strength is higher than Steel, 2 times stronger than Aluminium, 5 times stronger than Magnesium. Pure Titanium Wire is high temperature resistance and melting point is 1942K.


TIG Welding titanium wire, also known as Gas Tungsten Arc Welding (GTAW), is a process that joins metals by heating them with an arc between a tungsten electrode (non-consumable) and the work piece. The process is used with a shielding gas and may also be used with the addition of filler metal.
The difference between the two is the way the arc is used. MIG (metal inert gas) welding uses a feed wire that constantly moves through the gun to create the spark, then melts to form the weld. TIG (tungsten inert gas) welding uses long rods to fuse two metals directly together


SGS Gr2 Pure Titanium Wire 1000mm Length Pickling Surface 1

SGS Gr2 Pure Titanium Wire 1000mm Length Pickling Surface 2


--- We have professional welding technology teams that can provide free welding consultation and other services to our customers.

--- If you are not sure what type of titanium wire you need for your project, we were glad to help you choose the right wire




4. Package & Delivery

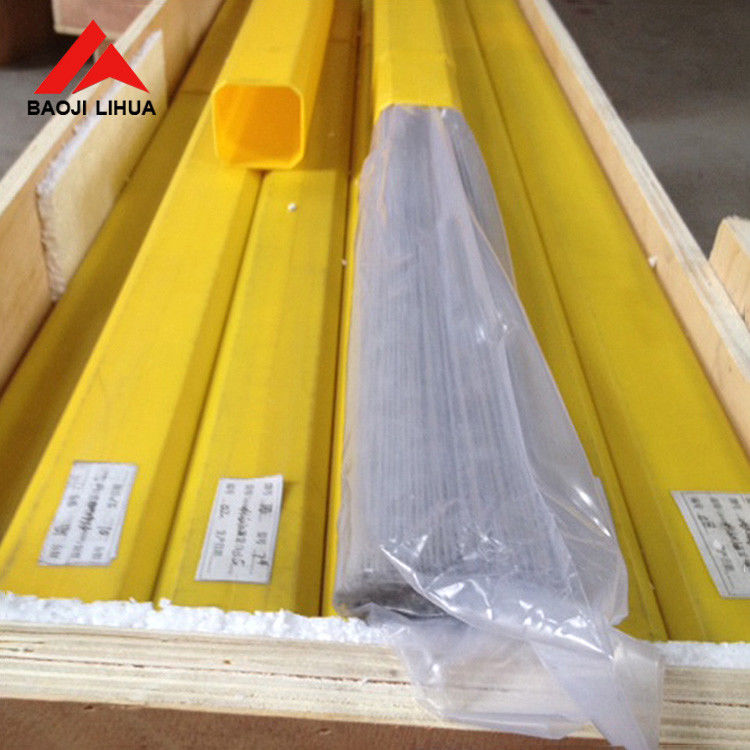

SGS Gr2 Pure Titanium Wire 1000mm Length Pickling Surface 3


--- Coil and spool package in carton casse or plywood case

--- Straight wire package in Plastic case,outside is standard export plywood case.

--- accept customer requirment


Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.



5. Application scenarios


Offshore oil
Petrochemical products
Gas treatment
Power station
Pharmaceutical equipment
Chemical Equipment
Sea water equipment
Heat exchanger


LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.


More information and any welding question,Please feel free to get in touch to get more.



6. FAQ


Q1.--How can you ensure the product quality?


--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.


Q2.--Can you print our LOGO on the products?


--Sure, and we welcome the customized products.


Q3.--Can we get the free sample?




Q4.--What about the payment terms?


--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.



05.--What is the necessary information for a inquiry?


--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
