Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti2
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 20000 pieces per month
Product Name: |
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment |
Material: |
Gr1 Gr2 Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni) |
Standard: |
ASTM/ASME B265,ASTM/ASME B381 |
Diameter: |
50-2500mm |
Thickness: |
Max 150mm |
Process: |
Forging |
Quality Test: |
UT,PT |
Third-party Testing: |
Available |
Product Name: |
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment |
Material: |
Gr1 Gr2 Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni) |
Standard: |
ASTM/ASME B265,ASTM/ASME B381 |
Diameter: |
50-2500mm |
Thickness: |
Max 150mm |
Process: |
Forging |
Quality Test: |
UT,PT |
Third-party Testing: |
Available |
Forging Gr7 Titanium Disc Dia 3000mm For Chemical Equipment
1. Titanium Forged Disc:
| Product name | Industry use Titanium disc disk ring titanium forging ring |
| Dimension | OD(Max 1300 mm) ×H (max length 300mm) |
| Grade | Gr1 Gr2 Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni) etc. |
| Standard | ASTM B381, ASME SB381 |
| Density | 4.51g/cm3 |
| Certification | ISO 9001:2015 & Gold suppier on ALIBABA, Material Mill Test Report |
| Technique | Die forging or flat-die forging +CNC machining |
| Shape | Disc/disk , ring |
| Type | Titanium forging |
| Application | Electroplating ;Chemical engineering & Petrochemical technology,oil drilling equipments,Aircraft Frame etc. |
2. Physical Properties:
| Grade | Tensile strength(min) | Yeild strength(min) | Elongation (%) | ||
| ksi | MPa | ksi | MPa | ||
| GR1 | 35 | 240 | 20 | 138 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | 130 | 895 | 120 | 828 | 10 |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 438 | 15 |
| GR12 | 70 | 438 | 50 | 345 | 18 |
3. Tolerance of titanium forging ring as per ASTM B381:
|
Grade Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 |
OD(mm) | Tolerance(mm) | Height | Tolerance(mm) |
| 100-300 | -1/+3 | <50 | -0/+2 | |
| 300-600 | -2/+3 | 50-200 | -1/+3 | |
| 600-1000 | -3/+5 | 200-300 | -2/+4 |

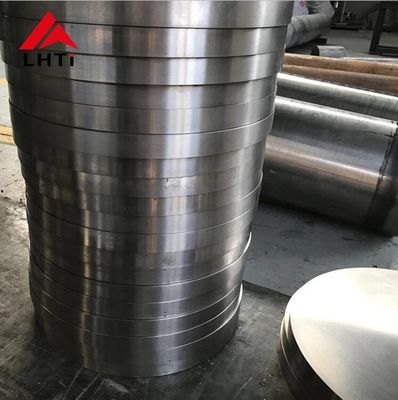

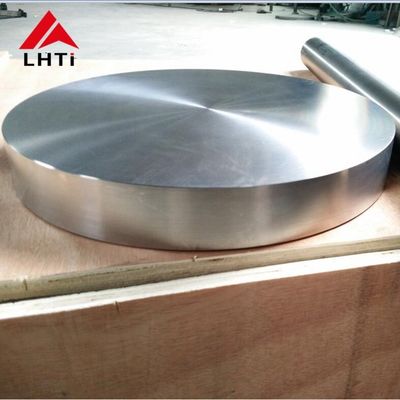

Detailed pictures of titanium disc:
Quality control:
1.The forging disc surface of titanium alloy is smooth and smooth, with CNC machine adding cotton. The surface is free of any pollution, scratch, scratch, grinding, dent or any other defects.

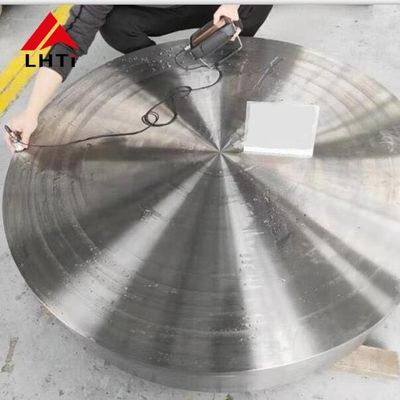

2.100% UT test before delivery
3.Provide En10204/3.1 quality certificate with chemical composition and physical properties before delivery
Packaging and shipping:
Standard export packaging, any damage is not allowed to the goods, to ensure that the goods received by customers are perfect and clean. Choose the best transportation plan for customers.
About our company:
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---
It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in
manufacturing titanium products.Our advantagous products is titanium forgings(titanium disc,
titanium ring, titanium flange) .With more than 14 years export Experience, our products was
sold to Asia, Europe, North America in large quantity.In addition to provide preferential price
for customers, we pay much attention to quality, and have a good after-sales service.
All products we produced are based on the standard: Amecian standard,German standard ,
Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is
certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,
LR'S ,TUV and other international inspection agency .Third party test is available.
Welcome to contact!
