Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: LH-Ti10
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: US dollar $2000piece--US dollar $130,000/piece
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 20-30 working days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 2000-5000 pieces per month
Product Name: |
Titanium U Tube Heat Exchanger |
Assembly Parts: |
Tube Bundle, Shell, Dish Head, Heat Exchange Tube, Etc |
Tube Material: |
Titanium |
Tube Plate Material: |
Titanium Steel Composite |
Shell Side Material: |
Titanium/Stainless Steel |
Shell Material: |
Titanium/Stainless Steel |
Sasteners Material: |
Titanium/Stainless Steel |
Advantages: |
Corrosion Resistant,Simple Structure And Low Cost |
Dimension(L*W*H): |
Customized |
Applications: |
High Temperature And Pressure Corrode Fluids,seawater,saltwater,brine Water Etc. |
Warranty: |
1 Year |
System: |
Single /double/Triple System |
Product Name: |
Titanium U Tube Heat Exchanger |
Assembly Parts: |
Tube Bundle, Shell, Dish Head, Heat Exchange Tube, Etc |
Tube Material: |
Titanium |
Tube Plate Material: |
Titanium Steel Composite |
Shell Side Material: |
Titanium/Stainless Steel |
Shell Material: |
Titanium/Stainless Steel |
Sasteners Material: |
Titanium/Stainless Steel |
Advantages: |
Corrosion Resistant,Simple Structure And Low Cost |
Dimension(L*W*H): |
Customized |
Applications: |
High Temperature And Pressure Corrode Fluids,seawater,saltwater,brine Water Etc. |
Warranty: |
1 Year |
System: |
Single /double/Triple System |

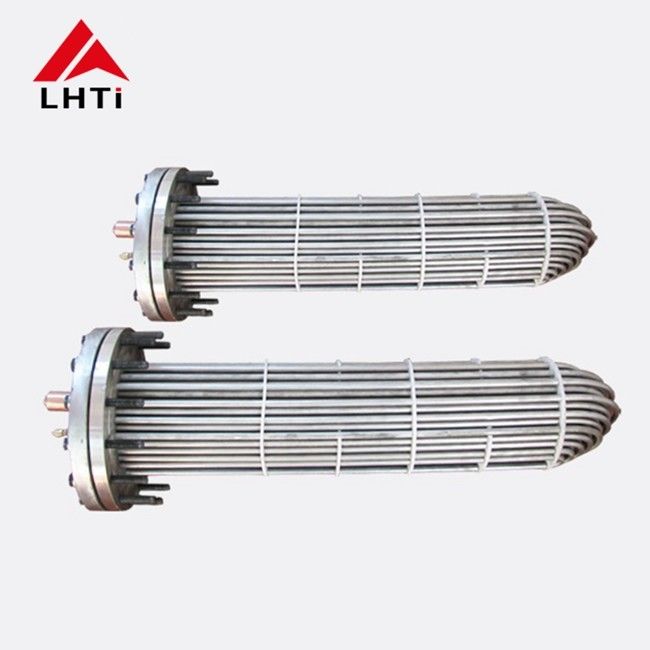

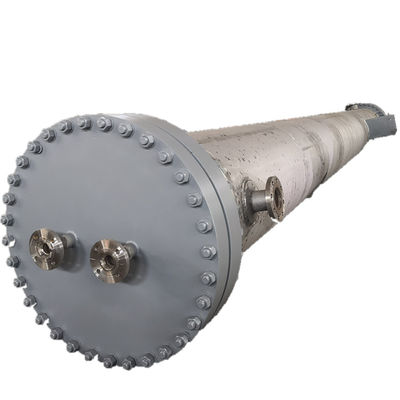

Grade 1 Grade 2 titanium Shell & tube heat exchanger titanium U tube heat exchanger
Shell & tube heat exchangers are very popular and commonly found in industrial use. This is mainly due to their versatility. It is composed of tube plate, shell, tube bundle and other parts. By selecting different configurations of these basic parts, we can have many different exchanger types.
Under the same diameter condition, the heat transfer area of U-tube heat exchanger is the largest; It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and the lowest cost under high temperature and high pressure. U-tube heat exchanger has only one tube plate, which has good thermal compensation performance and strong pressure bearing capacity. It is suitable for high temperature and high pressure operation.
Materials:Titanium/Stainless steel Shell + Gr2 Pure Titanium Tube
Special Use: Cooling, Evaporator
Net Weight: Customizable
Application: High temperature and pressure corrode fluids,seawater,saltwater,brine water etc.
Detailed images:
Ti Alloy Grade 2 Condenser Tubes
U Bend Heat Exchanger Tube, TitaniumCondenser Tubes, Titanium Alloy Grade 2 Adiabatic Wheel Heat Exchanger, ASTM B338 Gr.2 Titanium Regenerative Heat Exchanger, Precision titanium Tube, Ti Alloy Condenser Tubes Supplier in China
The heat exchanger and condenser fabricated by Baoji Lihua have the capability to convertible through the usage of thinner segments. Ti Alloy Grade 2 Condenser Tubes are sanctioned by ASME Boiler Code for usage up to 600°F. The heat exchangers and the condensers produced by our company have to undergo through numerous kinds of strict quality test that are done to ensure the quality and the capability of the product. Some of the tests are the smoke candle test, puffer test, furnace leakage test etc.
The Titanium Heat Exchanger Tubing of our company uphold the title of ultimate security regarding delivery. The product is kept in the wooden boxes and pallets. The package consists of all the mandatory documents and the test reports as well as various enormous thermal processing accessories which can help the clients to install the unit at ease.
We will production totally according to your required.
Q: Can you provide us the design drawing?
Yeah, of course, we will provide you the drawing after you payment or prepaid.
Q: Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.
Q: What kind of your packaging ?
Neutral plywood or wooden box packaging or according to customer’s requirements.
Q: How long is your delivery time?
Normally 30days after payment, and we promise we will delivery as soon as we can.
