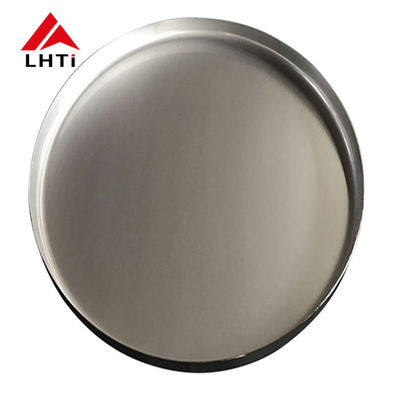

GR2 Titanium Elliptical Dish End Torispherical Pressure Vessel Heads

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO 9001:2015

Model Number: LH-Ti3

Payment & Shipping Terms

Minimum Order Quantity: 3Pcs

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Get Best Price
Highlight:

GR2 Titanium Elliptical Dish End

,

Torispherical Pressure Vessel Heads

,

2mm Thick Pressure Vessel Heads

Product Name:
Titanium Dish Head For Pressure Vessel Equipment
Material:
Titanium GR1, GR2, GR7, GR12, Etc.
Standard:
According To ASME VIII-I Standard Or DIN28013
Size:
OD300-1250mm, Or Customized By Customers' Requests
Other Name:
Titanium Spherical Heads/titanium Dish Heads
Color:
Natural
Applications:
Pressure Vessel Equipment And Boilers
Third Party Testing:
Available
Product Name:
Titanium Dish Head For Pressure Vessel Equipment
Material:
Titanium GR1, GR2, GR7, GR12, Etc.
Standard:
According To ASME VIII-I Standard Or DIN28013
Size:
OD300-1250mm, Or Customized By Customers' Requests
Other Name:
Titanium Spherical Heads/titanium Dish Heads
Color:
Natural
Applications:
Pressure Vessel Equipment And Boilers
Third Party Testing:
Available
GR2 Titanium Elliptical Dish End Torispherical Pressure Vessel Heads

Titanium Elliptical Head Torispherical Heads Tank Caps Tank Dish Ends Pressure Vessel Heads



Product name:Titanium Elliptical Head

Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.

Thickness: 2mm--300mm
Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA

Material: Grade 1 Grade 2 Grade 7 Grade 12 Titanium

Application: mainly for pressure vesselsin diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military





Grade

Fe max

O max

N max

C max

H max

Pd

Al

V

Mo

Ni

Elong'n

Σb

(Mpa)

σr0.2

(Mpa)

No

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

%

MPa

MPa

Grade 1

0.2

0.18

0.03

0.1

0.015











24

240

140

Grade 2

0.3

0.25

0.03

0.1

0.015











20

400

275

Grade 7

0.3

0.25

0.03

0.1

0.015

0,12-0,25









20

400

275

Grade 12

0.3

0.25

0.03

0.1

0.015







0.3

0.8

18

460

300







GR2 Titanium Elliptical Dish End Torispherical Pressure Vessel Heads 0







(Titanium dish head )DIN28013:

D (mm)

s min/max (mm)

Volumen (L)

h1 (mm)

kg pr mm s

D (mm)

s min/max (mm)

Volumen (L)

h1 (mm)

kg pr mm s

300

4-10

3.5

78

1,0

1550

5-15

483

403

22.5

350

4-10

5.6

91

1.3

1600

5-15

532

416

23.9

400

4-10

8.3

104

1,7

1650

5-15

585

429

25,4

450

4-10

11.8

117

2,1

1700

5-15

640

442

27.0

500

4-10

16.1

130

2.6

1750

5-15

700

455

28.5

550

3-12

21,6

143

3,1

1800

5-15

760

468

30

600

3-12

28,0

156

3.6

1850

5-15

825

481

31.5

650

3-12

36.0

169

4,2

1900

5-15

890

494

33

700

3-12

44,5

182

4,8

1950

5-15

965

507

36

750

3-12

54.5

195

5,5

2000

6-15

1040

520

37

800

3-13

66.5

203

6.2

2050

6-15

1120

533

38.5

850

3-13

79,5

221

7,0

2100

6-15

1200

546

40.5

900

3-13

94

234

乙8

2150

6-15

1290

559

42,5

950

3-13

111

247

8.6

2200

6-15

1380

572

44.5

1000

4-16

130

260

9.5

2250

6-15

1480

685

46.5

1050

4-13

150

273

10,4

2300

6-15

1580

598

46 5

1100

4-13

173

286

11,1

2350

6-15

1690

611

51

1150

4-13

198

299

12.5

2400

6-15

1800

624

53

1200

4-13

225

312

13.6

2450

6-15

1910

637

55

1250

4-13

254

325

14,7

2500

6-15

2030

660

57





Detailed images:

GR2 Titanium Elliptical Dish End Torispherical Pressure Vessel Heads 1

GR2 Titanium Elliptical Dish End Torispherical Pressure Vessel Heads 2GR2 Titanium Elliptical Dish End Torispherical Pressure Vessel Heads 3GR2 Titanium Elliptical Dish End Torispherical Pressure Vessel Heads 4





Applications of titanium Elliptical Heads:

GR2 Titanium Elliptical Dish End Torispherical Pressure Vessel Heads 5



Know More About Titanium Elliptical Heads:
♦ Dish head (also called elliptical head or spherical head)

♦ The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter.

♦ The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1.

♦ The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

♦ The ellipsoidal head has good mechanical properties better than the torispherical head.

♦ Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter elliptical head is also can be realized.

♦ ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied petroleum gas and air receivers.
