AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire

Basic Information
Place of Origin: China
Brand Name: LH
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: LHTS
Minimum Order Quantity: 1kg

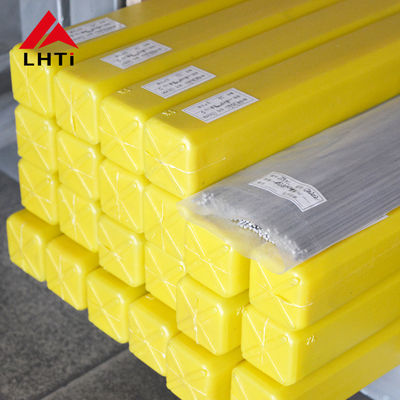

Packaging Details: Plastic bag with laber, outside plastic box, then plywod box
Delivery Time: 5-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 kg per month
Detail Information
Material: Pure Titanium Length: 1000mm
MOQ: 1kg Grade: Erti-1 Erti-2
Diameter: φ0.8~φ7.0 Shape: Straight, Spool, Coil
Application: Welding Product Name: Titanium Staight Wire
High Light:

Erti-2 Titanium Welding Wire

,

AWS A5.16 Titanium Welding Wire

,

1000mm Titanium Welding Wire


Product Description

Professional supplier AWS A5.16 Erti-1 Erti-2 Erti-5 Erti-7 Erti-9 Titanium Welding Wire

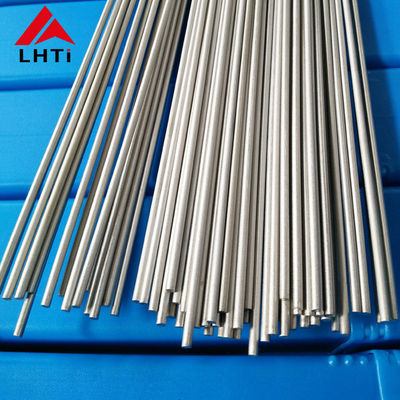

AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire 0

1. Application



Titanium welding wire is used in welding reaction kettle titanium, storage of acid or alkaline material tank tube,

titanium equipment.



2.Operation precautions


1). During manual argon arc welding, the minimum included Angle (10~15°) should be kept between the wire and welding parts. The welding wire is smoothly and evenly fed into the molten pool along the front end of the molten pool, and the welding wire end shall not be moved out of the argon gas protection zone.
2). During welding, the welding gun does not swing laterally. When it needs to swing, the frequency should be low and the swing amplitude should not be too large to prevent the protection of argon.
3). When the arc is broken and the weld ends, argon gas protection shall be continued, and the welding gun shall not be removed until the weld and the metal in the heat-affected area are cooled to below 350℃.



3. Tensile Requirements



ERTi Tensile strength(min) Yeild strength(min) Elongation(%)
ksi MPa ksi MPa
1 35 240 20 138 20
2 50 345 40 275 18
5 130 895 120 828 10
7 50 345 40 275 18
9 90 620 70 483 15
12 70 483 50 345 18



4.Guide to choose of filler metal for general-purpose titanium welding



ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
  UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7



5.Chemical composition requirements



AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
  Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25

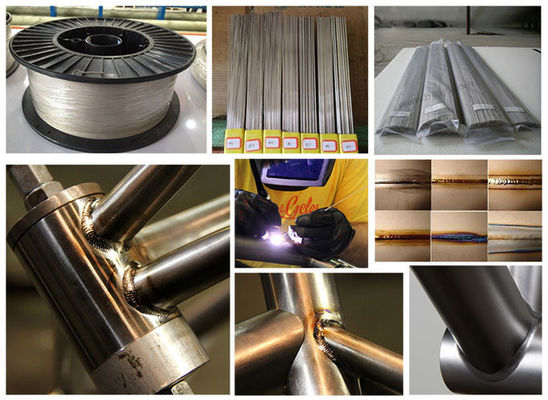

AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire 1

AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire 2

AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire 3


AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire 4

AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire 5

AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire 6AWS A5.16 Length 1000mm Erti-2 Titanium Welding Wire 7

High quality forged CNC machine F2/ Gr2 WNRF Titanium welding neck flange

Cooperation with us will provide you a strong guarantee.


1. ISO9001:2015
2. The timely delivery rate is 99.8%, sometimes in advance.
3. Excellent after-sale service.
4. Rapid inquiry reply, within 2 hours.
5. Fair payment term
6. Professional technical adviser
7. Material certificate
8. Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process,surface treatment,inspections and testing).
