Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Rod
Payment & Shipping Terms
Minimum Order Quantity: 30 kg
Packaging Details: Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.
Delivery Time: 10-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 300000 kg per month
Diameter: |
3mm-350mm |
Material: |
Pure Titanium |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed; M |
MOQ: |
30 Kg |
Packing: |
Standard Export Packing |
Diameter: |
3mm-350mm |
Material: |
Pure Titanium |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed; M |
MOQ: |
30 Kg |
Packing: |
Standard Export Packing |
Polished Dia 52mm 55mm ASTM B348 Pure Titanium Rod
1. Product Information
A. Standard: ASTM B348,ASTM F67,ASTM F136, AMS 4928.
B. Material grade: Grade 1, grade 2, grade 5, grade 9, grade 23(Gr5 ELI).
C. Diameter size in stock: 3mm/6mm/8mm/10mm/20mm/30mm, length: 1000mm-6000mm, or cutting to your needed length
D. Product Status: Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
E. Shape: Round bar, square bar , hex bar
F. Feature: 1. Polished surface without any defects free from cracks no pitting.
2. Two ends flatting making sure length tolerance and good looking.
2. Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
3. Physical Properties
| Physical Properties | |||||
| Tensile Strength(min) | Yield Strength(min) | Elongation(%) | |||
| ksi | MPa | ksi | MPa | ||
| Grade 1 | 35 | 240 | 20 | 138 | 24 |
| Grade2 | 50 | 345 | 40 | 275 | 20 |
| Grade 3 | 65 | 450 | 55 | 380 | 18 |
| Grade 4 | 80 | 550 | 70 | 483 | 15 |
| Grade 5 | 130 | 895 | 120 | 828 | 10 |
| Grade 7 | 50 | 345 | 40 | 275 | 20 |
| Grade 9 | 90 | 620 | 70 | 483 | 15 |
| Grade 12 | 70 | 483 | 50 | 345 | 18 |
| Grade 23 | 120 | 828 | 110 | 759 | 10 |
4. Tolerance
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) |
|||||||

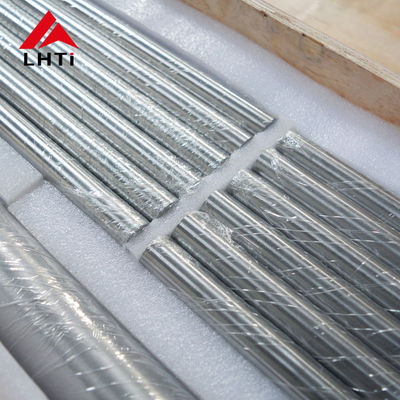

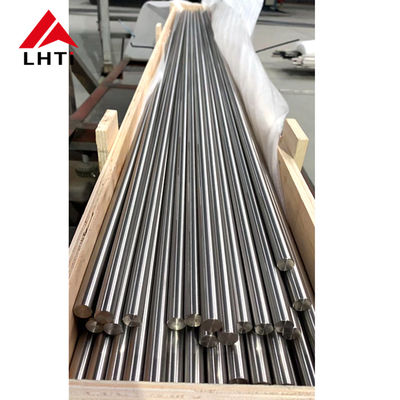

5. Detailed Images
6. Production Process
Titanium rod processing Flow:
Titanium Sponge and master alloys → Compacting electrodes → Melting → Forging → Billets → Procision forging → Machining → Bars
7. Quality Assurance:
A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.
B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.
C. Chemical Composition making sure all chemical components can satisfy customer’s demands.
D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.
8. Why choose Baoji Lihua?
1. With more than 15 years of experience in the production and export of titanium products, there is no
any worries to cooperate with us.
2. There is a professional export team that can provide A to Z service.
3. Has our own factory and machinery equipments, and can guarantee the quality and delivery time, and
provide the best price.
4. Putting quality first:with a good team of engineer;provide related certificates; providing long-term after-sales
service.
