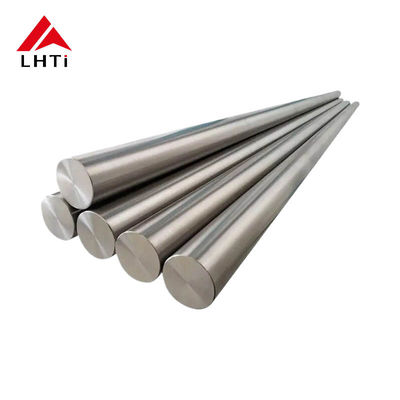

GR5 ASTM B348 Titanium Rod Titanium Round Bar with OD32mm for Industrial & Medical Applications

Name: GR5 ASTM B348 Titanium Rod Titanium Round Bar with OD32mm for Industrial & Medical Applications
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium Rod
Price: 84.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium Rod
MOQ:	100 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200-500 Ton/Tons Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001,CE, API,etc

Titanium Alloy:

GR5, ASTM B348, ASM 4928, ASTM F136

Corrosion Resistance:

Excellent

Key Words:

Gr2 Titanium Coil Tube

Refrigerant:

R22,R134a,R407c,R410a R417a

Application:

Industrial & Medical

Outer Diameter:

OD32mm OD38mm

Drawing:

Accept Customized

Commodity:

Rectangle Frame Coil Tube

Processing Service:

Bending, Cutting

Package:

Carton Or Plywood Case.

Packaging Details:

All goods are packed by seaworth shipment materials or required by buyer

Supply Ability:

200-500 Ton/Tons Per Month

Highlight:

Commercially Pure Titanium Rod

ASTM B348 Titanium Rod

Grade 2 Titanium Welding Rod

Product Description

Titanium Rod Titanium Round Bar Titanium Welding Rod Commercially

ASTM B348 is a specification that covers Titanium and Titanium Alloy Bars and Billets for use in various applications, including medical, aerospace, and industrial sectors. Grade 2 Titanium (also known as Commercially Pure Titanium or CP Titanium) is one of the most commonly used grades of titanium, known for its excellent corrosion resistance, biocompatibility, and lightweight nature.

Overview of Grade 2 Titanium (CP Ti)

Material Composition:

Grade 2 Titanium is composed of 99% pure titanium, with trace amounts of other elements like oxygen, nitrogen, and carbon. It has minimal alloying elements, which gives it its characteristic properties:

Aluminum: ~0.2% max
Iron: ~0.3% max
Oxygen: ~0.18% max
Carbon: ~0.08% max

Properties:

Tensile Strength: 50-70 ksi (345-485 MPa)
Yield Strength: 40 ksi (275 MPa)
Elongation: 20-30%
Density: 4.51 g/cm³
Corrosion Resistance: Excellent in a variety of environments, including body fluids and seawater
Workability: Very good, especially for applications requiring welding or machining
Biocompatibility: Highly biocompatible, making it suitable for medical implants

Specifications of Titanium Grades

Titanium Grade	Round Bar Standards
Titanium Grade 1	ASTM B348, ASME SB-348, EN 10204.31
Titanium Grade 2	ASTM B348, ASTM B381, ASTM F67, ASME SB-348
Titanium Grade 4	AMS 4921, ASTM B348, ASTM F67, AMS-T-9047
Titanium 6Al-4V Grade 5	AMS 2631D, AMS 4928, AMS 4965, AMS 6930, AMS 6931, ASTM B348, AMS-T-9047, ASME SB-381
Titanium 6Al-4V Grade 23 ELI	AMS 2631, AMS 4930, AMS 6932, ASTM F67, ASTM F136, ASTM B348
Titanium Alloy 6Al-2Sn-4Zr-6Mo	AMS 2631, AMS 4981

Applications of Grade 2 Titanium

Grade 2 Titanium is widely used in industries that require corrosion resistance, strength, and light weight. Common applications include:

Medical implants: Bone plates, screws, dental implants, and surgical instruments. Its biocompatibility makes it an excellent choice for these applications
Aerospace components: Used for components exposed to harsh environments (e.g., aircraft structures, engine parts)
Marine industry: For seawater-resistant parts like heat exchangers and valves
Chemical processing: Pumps, valves, and tanks where corrosion resistance is critical
