Ti6AL4V ELI Gr23 6AL7Nb Medical Titanium Alloys Bar

Product Details

Place of Origin: China

Brand Name: LHTI

Certification: ISO9001,CE

Model Number: LH-11

Payment & Shipping Terms

Minimum Order Quantity: 5kg,accept sample test

Price: $50/kg--$85/kg

Packaging Details: Standard exporting packaging: Internal fill the pearl cotton,carton box / plywood case outside packaging.

Delivery Time: 5-15 days

Payment Terms: T/T, Western Union,L/C, D/P etc. According your requirment

Supply Ability: 5000 tons per month

Get Best Price
Highlight:

Gr23 6AL7Nb Medical Titanium Bar

,

Ti6AL4V ELI Titanium Alloys Bar

,

ISO5832-3 Medical Titanium Alloys Bar

Product Name:
Ti6AL4V ELI,Gr23 6AL7Nb Medical Titanium Alloys Bar Factory
Material:
Titanium Alloy
Grade:
Ti6AL4V ELI,Gr23 6AL7Nb
Standard:
ASTM F67/ASTM F136/ISO5832-2/ISO5832-3
Diameter:
3mm 6mm 8mm 10mm 12mm 16mm 18mm 20 Mm Etc.
Length:
1000mm/2000mm/3000mm, Or As Customers' Request
Surface:
Bright , Polished
Situation:
Annealed
Product Name:
Ti6AL4V ELI,Gr23 6AL7Nb Medical Titanium Alloys Bar Factory
Material:
Titanium Alloy
Grade:
Ti6AL4V ELI,Gr23 6AL7Nb
Standard:
ASTM F67/ASTM F136/ISO5832-2/ISO5832-3
Diameter:
3mm 6mm 8mm 10mm 12mm 16mm 18mm 20 Mm Etc.
Length:
1000mm/2000mm/3000mm, Or As Customers' Request
Surface:
Bright , Polished
Situation:
Annealed
Ti6AL4V ELI Gr23 6AL7Nb Medical Titanium Alloys Bar

Ti6AL4V ELI,Gr23 6AL7Nb Medical Titanium Alloys bar





1. Medical Titanium alloy bar Product Description



This Medical Titanium Alloys are equipped with advanced process, which can be an ideal material used in the manufacture of medical devices, prostheses or artificial organs and auxiliary treatment devices implanted in the human body. Compared with ordinary product on the market, our Medical Titanium Alloys have high specific strength, mechanical properties close to human bones. They also have the characteristics of fatigue resistance, corrosion resistance and excellent biocompatibility.



Standard ASTM F67/ASTM F136/ISO5832-2/ISO5832-3
Grade GR2,GR3,GR4,GR5 Ti6AL4V ELI,Gr23 6AL7Nb,13Nb13Zr
Diameter 1.0-100mm
Length 1000mm-6000mm
Technique Cold Forging & Hot Rolling
Surface Bright
Shape Round
Application medical device, medical implant

Mechanical Properties

Grade Status Tensile Strength Yield Strength Elongation Area of Reducation
Ksi Mpa Ksi Mpa %
GR1 Annealed 35 20 25 170 24 30
GR2 50 345 40 275 20 30
GR3 65 450 55 380 18 30
GR4 80 550 70 483 15 25
TI-6AL-4VELI 125 860 115 795 10 25
Ti6AL7Nb 130.5 900 116.8 800 10 25
Ti13Nb13Zr

ageing125

Solid 800

Not annealed

800

860

550

550

105

500

500

725

345

345

8

15

8

15

30

15





TC20  Ti6Al7Nb titanium medical bar price per kg implant rod bone nails bar





2.Tolerance of diameter:

Customers can choose the following tolerances as product requirements

Diameter(mm) h7 h8 h9 h10 h11 h12
Tolerance precision (um)
3Max 10 14 25 40 60 100
3~6 12 18 30 48 75 120
6~10 15 22 36 58 90 150
10~18 18 27 43 70 110 180
18~30 21 33 52 84 130 210
30~50 25 39 62 100 160 250
50~80m 30 46 74 120 190 300
80~120 35 54 87 140 220 350
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

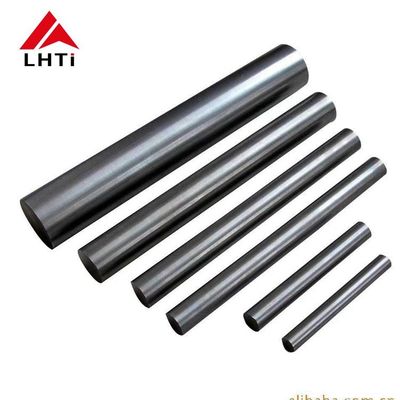

3.Detailed pictures: Bright surface with good quality



Sizes of Grade 2 and Grade 5 Titanium Rod in stock



Dia 2mm 2.5mm 3.0mm 3.5mm 4.0mm 5.0mm 6.0mm 7.0mm 8mm 9mm 10mm
12mm 15mm 16mm 18mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm

60mm 65mm 70mm 75mm 80mm 85mm 90mm 100mm 105mm 110mm 120mm





 Grade 5 titanium bar

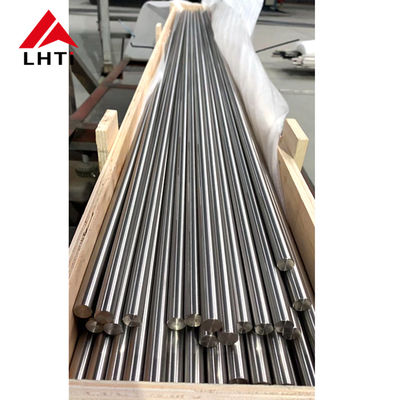

4.Packaging Details

1). plywood case, free of fumigating;
2). Steel belt + wooden case (above 200 kg/case);
3). Available upon the client's request, provide professional export-service
4). detail delivery date should be decided according to production season and order quantity.

Express, air, sea are available
The main Express companies we have been cooperate: DHL,Fedex,TNT,UPS
We will choose the most favorable one based on different countries for our customers







Ensuring our customers get the satisfying products,strict test is necessary:

1.Visual inspection to check surface quality,ensuring without flaw,black dot and any other defects.

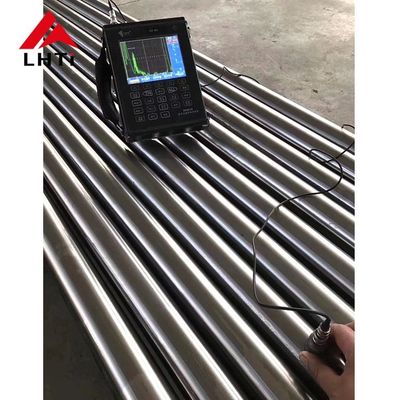

2.Ultrasonic Flaw Detection making sure there are no defects inside.

3.Chemical Composition Detection making sure all chemical component can satisfy customer's demands.

4. Mechanical Features testing making sure all titanium bars have satisfying mechanical features before delivery.
