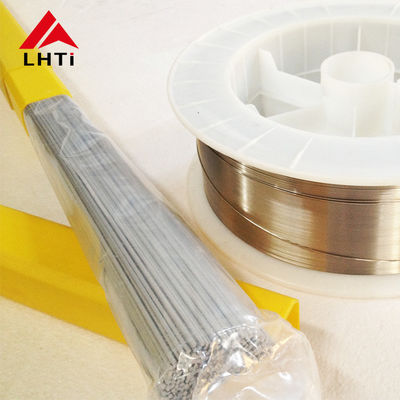

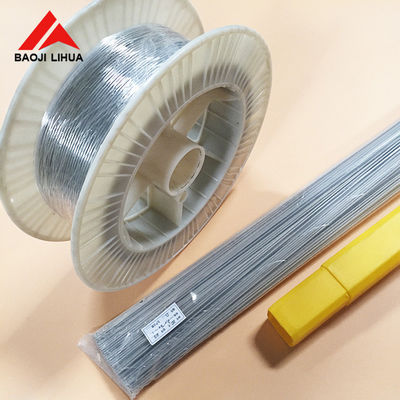

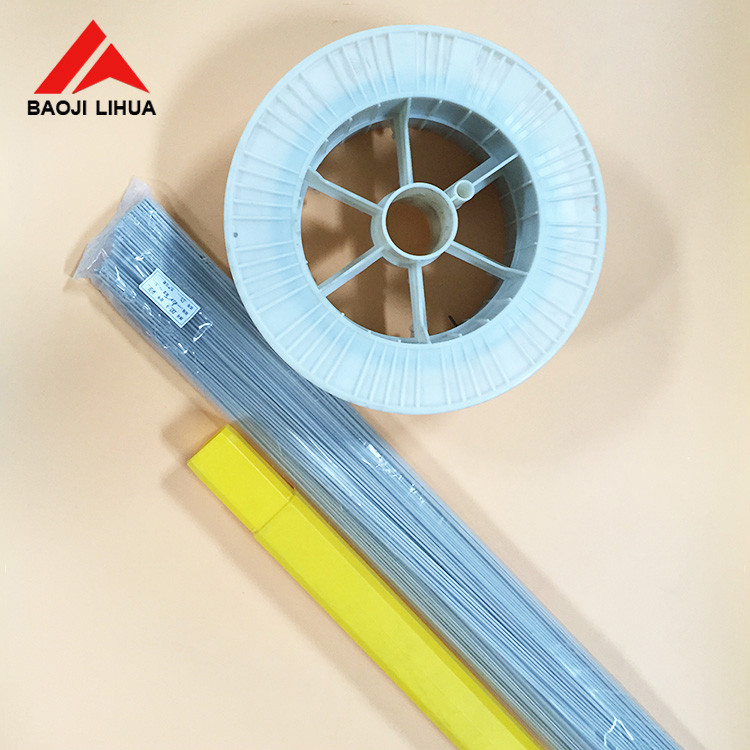

Titanium and Duplex Welding Wire and Rod Filler

Basic Information
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-14
Minimum Order Quantity: 1kg
Price: US dollar $26/kg--US dollar $56/kg
Packaging Details: coil and spool package in carton casse or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: In stock--3 days.production--15 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Detail Information
Product Name: Titanium And Duplex Welding Wire And Rod Filler Grade: ErTi2 ER2209
Shape: Coil,spool,straight Material: Pure Titanium
Surface: Pickling Surface/polish Surface Package: Standard Export Package
Hot Sale Diameter: 0.8mm-5mm Etc Length: 1000mm
Key Words: Thin Titanium Wire
High Light:

ErTi2 ER2209 Titanium Welding Wire

,

ISO9001 Welding Wire Rod Filler


Product Description

Titanium Grade 2 AWS A 5.16 and Duplex Welding Wire Φ2.4mm ER2209 Rod Filler wire AWS A5.9 for GTAW



1.Products information



Grade : ER2209 ,Duplex SS22053 ,ErTi-1,ErTi-2,ErTi-5,ErTi-7 etc
Standard : ASTM B863 (for industrial) / AWS a5.16(for welding), AWSA5.9 for Duplex welding wire
Diameter :
Φ2.4mm Φ1.2mm Φ0.9mm coil wire
Shape : coil,spool,straight.
Surface : pickling surface/bright surface

Application : industrial,welding,macine parts,medical etc



ErTi-1/ErTi-2 dia=0.8mm/1.0mm/1.2mm/1.6mm/2.0mm/2.4mm/2.5mm/3.0mm/3.5mm in stock,ensure delivery 3-5 days

ErTI-5/Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity

ErTi-12 need production,lead time 10 working days



Some more informations about Titanium Wires
Finish Type Available Shapes Minimum Diameter Diameter Tolerance Price Leval
Acid Washed Coil or Straight 0.2mm Normal Lower
Polished Coil or Straight 0.2mm Normal Medium
Grinding Polished Only Straight 0.8mm Accurate and can be very small Higher



Common Ti Wires Tolerance
Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm
Tolerance +/- 0.025 +/-0.04 +/-0.05
Length 200-500mm 500-1000mm 1000-2000mm
Tolerance +/-1.0 +/-1.5 +/-2.




2.Titanium wire---Three kinds of type for your choose

Titanium Grade 2 AWS A 5.16 and Duplex Welding Wire Φ2.4mm ER2209 Rod Filler wire AWS A5.9 for GTAW





Titanium and Duplex Welding Wire and Rod Filler 0



3.Duplex Welding wire  for TIG and MIG for GTAW





TIG Welding titanium wire, also known as Gas Tungsten Arc Welding (GTAW), is a process that joins metals by heating them with an arc between a tungsten electrode (non-consumable) and the work piece. The process is used with a shielding gas and may also be used with the addition of filler metal.
The difference between the two is the way the arc is used. MIG (metal inert gas) welding uses a feed wire that constantly moves through the gun to create the spark, then melts to form the weld. TIG (tungsten inert gas) welding uses long rods to fuse two metals directly together



Titanium and Duplex Welding Wire and Rod Filler 1

Titanium and Duplex Welding Wire and Rod Filler 2



---We have professional welding technology teams that can provide free welding consultation and other services to our customers.

---If you are not sure what type of titanium wire you need for your project, we were glad to help you choose the right wire



4.Titanium and Duplex Welding Wire and Rod Filler  Process



Two kinds of process--Cold drawn and Hot drawn

Cold Drawn : Pury titanium (Gr1 /Gr2/Gr4 ) and Gr7

Hot Drawn : Alloy titanium wire except Gr7,when drawn need heating wire ,When the temperature reached 800 degrees Celsius, carries on the drawing



5.Package & Delivery



Titanium and Duplex Welding Wire and Rod Filler 3



---Coil and spool package in carton casse or plywood case

---Straight wire package in Plastic case,outside is standard export plywood case.

---accept customer requirment



Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.



6. Titanium and Duplex Welding Wire and Rod Filler Application scenarios



Offshore oil
Petrochemical products
Gas treatment
Medicine
Power station
Pharmaceutical equipment
Chemical Equipment
Sea water equipment
Heat exchanger
Condenser



welcome to contact Titanium and Duplex Welding Wire and Rod Filler supplier
