Gr7 (Ti-0.2Pd) ERTi-7 Titanium Alloy Welding Wire AWS 5.16 For MIG GTAW

Basic Information
Place of Origin: Baoji City Shaanxi Province China
Brand Name: LHTi
Certification: ISO9001
Model Number: LHTI-041
Minimum Order Quantity: 100kgs
Price: USD200-250 per kg
Packaging Details: 5kgs put into plastic tube inside and plywood case outside Or as the clients' request
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 8000kgs per month
Detail Information
Standard: AWS 5.16 Surface: Pickling Surface/bright Surface
Application: GTAW Type: Straight / Spool / Coil
Certificate: ISO9001:2015 Technique: Cold Rolling
Grade: GR7 (ErTi-7,Ti-0.2Pd ) Advantage: Hot Resistance
High Light:

Titanium Alloy Welding Wire AWS 5.16


GR7 Titanium Alloy Welding Wire


Titanium Alloy Welding Wire For MIG

Product Description

Gr7 (Ti-0.2Pd) ERTi-7 Titanium alloy welding Wire AWS 5.16 for MIG GTAW


1. Product description


Product name: Titanium grade 7 welding wire

Standard : AWS a5.16 , ASME SFA 5.16

Grade : GR7 (ErTi-7,Ti-0.2Pd )

Diameter : 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm etc.

Shape : Coil,spool,straight.

Surface : Pickling surface/bright surface

Application : Welding

3. Titanium wire Size:0.05mm-10mm
4. The length of the titanium wire is 500mm/1000mm/2000mm or coils.
5. The process of the titanium wire: hot rolled, cold drawn
6. The surface of the titanium wire: mill surface, polished surface
Gr5 titanium alloy stamping poor, good thermoplastic. It can be carried out in various forms of welding, welding joint strength up to 90% of the base metal strength. Mechanical processing performance is still good, it need to use carbide cutting tools, large walking volume, slow, full cooling. Good corrosion resistance, good thermal stability. Gr5 Titanium is one of the most widely used titanium alloys. Do more than 400 Temper long-term work of the parts.


2. Titanium wire parameter information


Common Titanium Wires Tolerance
Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm
Tolerance +/- 0.025 +/-0.04 +/-0.05
Length 200-500mm 500-1000mm 1000-2000mm
Tolerance +/-1.0 +/-1.5 +/-2.


Titanium Grade 7 (Ti-0.2Pd) welding wire
Chemical compositions(weight%,<=)
Pd Al V Fe C
0.12-0.25 ---- ---- 0.30 0.08
N H O Other(total) Ti
0.05 0.015 0.2 0.4 Remainder
Physical properties(>=)


Tensile Strength



Yield Strength






Reduction of area


370 250 20 25

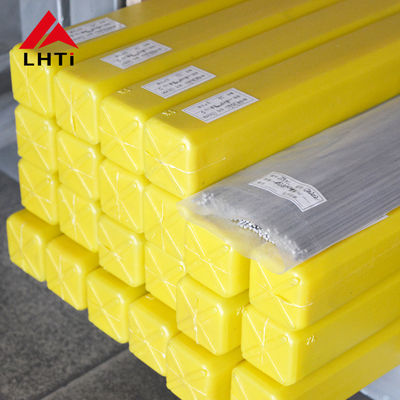

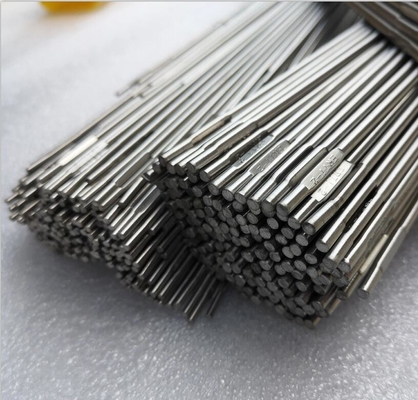

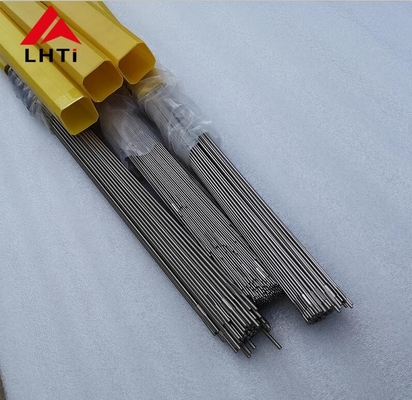

3. Detailed images

Titanium grade 7 welding wire

Gr7 (Ti-0.2Pd) ERTi-7 Titanium Alloy Welding Wire AWS 5.16 For MIG GTAW 1


AWS Chemical specifications
AWS A5.16



C O N H I Al V Pd
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25




4.Packaging and shipping:

titanium welding wire manufacturertitanium wire 3mm




5. Company Information

BAOJI LIHUA NON-FERROUS METALS CO., LTD is located in Baoji, the titanium valley of China. As a leading manufacturer of titanium products for over 15 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.

The industrial production of titanium began in 1948. The need for the development of the aviation industry has enabled the titanium industry to grow at an average annual growth rate of about 8%. At present, the annual output of titanium alloy processed materials in the world has reached more than 40,000 tons, and there are nearly 30 kinds of titanium alloy grades.

The most widely used titanium alloys are Ti-6Al-4V (TC4), Ti-5Al-2.5Sn (TA7), and industrial pure titanium (TA1, TA2, and TA3). If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.

Gr7 (Ti-0.2Pd) ERTi-7 Titanium Alloy Welding Wire AWS 5.16 For MIG GTAW 4





6. FAQ

1. Any discount?

A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.


2. Are you a manufacturer?

A: Yes. As a manufacturer with 15 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.


3. How do I know if my products are delivered?

A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.


4. Has your company acquired any certificate?

A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.


5. How about the quality of the products?

A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.


6. What about payment terms?

A: T/T, L/C, Western Union Paypal are accepted.


7. How about the delivery time?

A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.



8. How about the delivery time?

A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.



9. If you have additional questions, please feel free to contact us.

lihua titanium rod  (1)
