Product Details
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001
Model Number: titanium rod
Payment & Shipping Terms
Minimum Order Quantity: 50kg
Packaging Details: Plywood box for export
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 kgs per month
Product Name: |
Aerospace 6al4v Titanium Rod 5mm 6mm ISO9001 Polished Surface |
Standard: |
AMS 4928 AMS 6931 |
Application: |
Aerospace |
Shape: |
Round,square, Hex |
Length: |
3000mm |
Surface: |
Bright |
MOQ: |
50KG |
Test: |
100% UT |
Product Name: |
Aerospace 6al4v Titanium Rod 5mm 6mm ISO9001 Polished Surface |
Standard: |
AMS 4928 AMS 6931 |
Application: |
Aerospace |
Shape: |
Round,square, Hex |
Length: |
3000mm |
Surface: |
Bright |
MOQ: |
50KG |
Test: |
100% UT |
Aerospace 6al4v Titanium rod 5mm 6mm ISO9001 Polished surface
Material: GR5 Ti-6Al-4V
Specification: titanium rod φ6mm ~ φ30mm × L (rolling)
titanium rod φ30mm ~ φ400mm × L (forging)
Supply status: Annealing (M)
Executive standard: AMS 4928
Test:100% ultrasonic flaw detection,physical performance, mechanical performance and high-magnification metallographic testing, and issue testing report
Physical Properties
Physical Properties | |||
Tensile Strength(min) | Yield Strength(min) | Elongation(%) | |
MPa | MPa | ||
Grade 5 | 895 | 828 | 10 |
Grade 7 | 345 | 275 | 20 |
Grade 9 | 620 | 483 | 15 |
Grade 12 | 483 | 345 | 18 |
Grade 23 | 828 | 759 | 10 |
Chemical Composition
Titanium Bar | |||||||||
Grade | Ti | Al | V | Nb | Fe, max | C, max | N, max | H, max | O, max |
Gr5 | Bal | 5.5-6.75 | 3.5-4.5 | 0.3 | 0.08 | 0.05 | 0.015 | 0.20 | |
Gr5 ELI Ti-6Al-4VELI |
Bal | 5.5~6.5 | 3.5~4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 | |
Ti-6Al-7Nb | Bal | 5.5-6.5 | / | 6.5-7.5 | 0.25 | 0.08 | 0.08 | 0.009 | 0.20 |
Tolerance
Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
Tolerance precision (um) | |||||||
3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) |

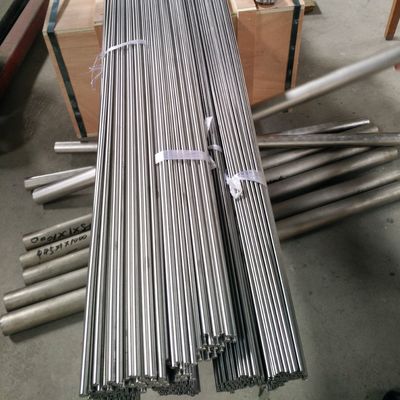

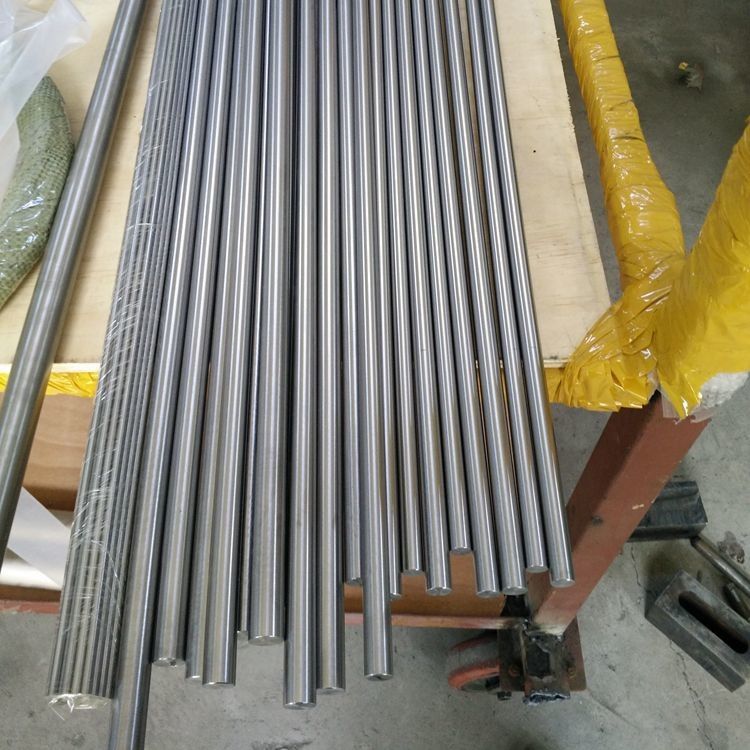

Images
