Product Details
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001,CE
Model Number: LH-11
Payment & Shipping Terms
Minimum Order Quantity: 5kg,accept sample test
Price: $50/kg--$85/kg
Packaging Details: Standard exporting packaging: Internal fill the pearl cotton,carton box / plywood case outside packaging.
Delivery Time: 5-15 days
Payment Terms: T/T, Western Union,L/C, D/P etc. According your requirment
Supply Ability: 5000 tons per month
Product Name: |
TC20 Ti6Al7Nb Titanium Medical Bar Price Per Kg |
Material: |
Titanium Alloy |
Grade: |
TC20 Ti6Al7Nb |
Standard: |
ASTM F136 |
Diameter: |
3mm 6mm 8mm 10mm 12mm 16mm 18mm 20 Mm Etc. |
Length: |
1000mm/2000mm/3000mm, Or As Customers' Request |
Surface: |
Bright , Polished |
Situation: |
Annealed |
Product Name: |
TC20 Ti6Al7Nb Titanium Medical Bar Price Per Kg |
Material: |
Titanium Alloy |
Grade: |
TC20 Ti6Al7Nb |
Standard: |
ASTM F136 |
Diameter: |
3mm 6mm 8mm 10mm 12mm 16mm 18mm 20 Mm Etc. |
Length: |
1000mm/2000mm/3000mm, Or As Customers' Request |
Surface: |
Bright , Polished |
Situation: |
Annealed |
TC20 Ti6Al7Nb titanium medical bar price per kg
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---
It is famous for manufacturing various non-ferrous metals, called “China Titanium Valley”.We
are specialized in manufacturing, researching and marketing non-ferrous metals, mainly for
titanium mill products and equipment. With 10 years export Experience, our products was sold
to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers,
1. Titanium bar
material grade:TC20 Ti6Al7Nb
Standard:ASTM B348,ASTM F136
Density: 4.51g/cm3
Surface:Polishied/bright
Size:Dia 2.0/3.0/4.0/5.0 x L1000mm -3000mm(custom size is welcome)
usage: medical
2. Chemical requirements
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Nb | Ti | |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | / | bal |
| Gr 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | / | bal |
| Gr 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | / | bal |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | / | bal |
| TC20 | 0.05 | 0.08 | 0.009 | 0.25 | 0.20 | 5.5-6.5 | 6.5-7.5 | bal |
3. Tensile requirements
| Grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 3 | 65 | 450 | 55 | 380 | 18 |
| 4 | 80 | 550 | 70 | 483 | 15 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
| TC20 | / | 900-1000 | / | 800-900 | / |
4.Packaging Details
1). plywood case, free of fumigating;
2). Steel belt + wooden case (above 200 kg/case);
3). Available upon the client's request, provide professional export-service
4). detail delivery date should be decided according to production season and order quantity.
| Item name | TC20 Ti6Al7Nb titanium medical bar price per kg |
| Standard | ASTM F136 |
| Material | TC20 |
| Diameter | 3mm 6mm 8mm 10mm 12mm 16mm 18mm 20 mm etc. |
| Length | 1000mm 2000mm 3000mm, or according to customers' request |
| Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
| Shape | Round bar |
| Feature |
1.Polished surface without any defects free from cracks no pittings 2.Two ends flating making sure length torlerance and good looking |
| Certificate | ISO9001:2008, TUV, material test certificate acc EN10204.3.1 |
5.Tolerance of diameter:
Customers can choose the following tolerances as product requirements
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3Max | 10 | 14 | 25 | 40 | 60 | 100 | |
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| 18~30 | 21 | 33 | 52 | 84 | 130 | 210 | |
| 30~50 | 25 | 39 | 62 | 100 | 160 | 250 | |
| 50~80m | 30 | 46 | 74 | 120 | 190 | 300 | |
| 80~120 | 35 | 54 | 87 | 140 | 220 | 350 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) | |||||||
6.Detailed pictures:

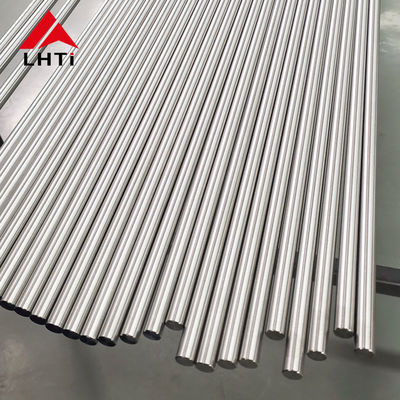

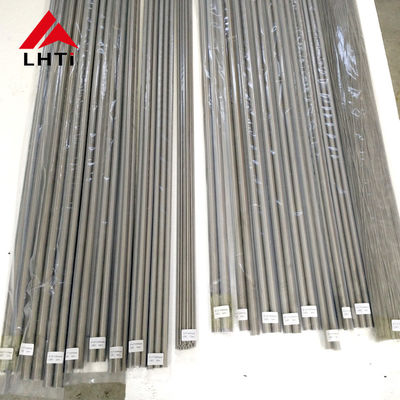

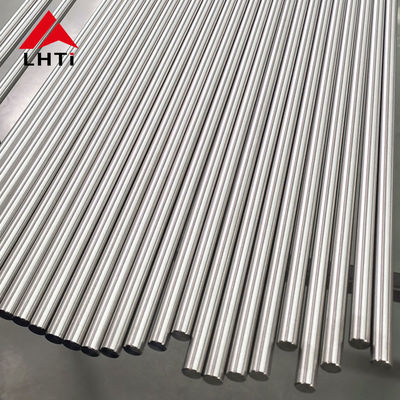

4mm medical titanium rod
Ensuring our customers get the satisfying products,strict test is necessary:
1.Visual inspection to check surface quality,ensuring without flaw,black dot and any other defects.
2.Ultrasonic Flaw Detection making sure there are no defects inside.
3.Chemical Composition Detection making sure all chemical component can satisfy customer's demands.
4. Mechanical Features testing making sure all titanium bars have satisfying mechanical features before delivery.
we pay much attention to quality, and have a good after-sales service.All products we produced are
based on the standard: German standard ,Aerospace standard, European standard, etc. Including
ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628.Lihua is certified by ISO9001:2015,
TUV and IQNET. Our company's products have passed SGS,BV, LR'S ,TUV and other international
inspection agency.
Welcome to contact!
