Home > products > Titanium Wire > Industrial Medical Titanium Wire Gr7 Gr12 0.8mm-4mm ASTM B863 Straight Shape

Industrial Medical Titanium Wire Gr7 Gr12 0.8mm-4mm ASTM B863 Straight Shape

Product Details

Place of Origin: Baoji Shaanxi China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-14

Payment & Shipping Terms

Minimum Order Quantity: 5 kg

Price: US dollar $23/kg--US dollar $89/kg

Packaging Details: coil and spool package in carton casse or plywood case,straight wire package in Plastic case,outside is standard export plywood case

Delivery Time: In stock--3 days.production--10-15 working days

Payment Terms: L/C, D/P, T/T, Western Union,paypal etc

Supply Ability: 50000 kgs per month

Get Best Price
Highlight:

thin titanium wire

,

pure titanium wire

Material:
Titanium
Grade:
Gr1 Gr2 Gr4 Gr5 Gr7 Gr12
Shape:
Coil,spool,straight
Product Name:
Titanium Wire
Surface:
Pickling Surface
Package:
Standard Export Package
Hot Sale Diameter:
0.8mm-4mm Etc
MOQ:
10kg,accept Sample Order
Standard:
ASTM B863
Applicate:
Industrial,macine Parts,medical
Material:
Titanium
Grade:
Gr1 Gr2 Gr4 Gr5 Gr7 Gr12
Shape:
Coil,spool,straight
Product Name:
Titanium Wire
Surface:
Pickling Surface
Package:
Standard Export Package
Hot Sale Diameter:
0.8mm-4mm Etc
MOQ:
10kg,accept Sample Order
Standard:
ASTM B863
Applicate:
Industrial,macine Parts,medical
Industrial Medical Titanium Wire Gr7 Gr12 0.8mm-4mm ASTM B863 Straight Shape

ASTM B863 Gr1 Gr2 Gr4 Gr5 Gr7 Gr12 titanium wire 0.8mm-4mm price per kg for industrial medical



Titanium Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on.

Titanium wire can be applyed in different walks of life. Such as military industry, medical, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire



LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.



Grade : Gr5/Ti6Al4V
Standard : ASTM B863 (for industrial)
Diameter : 0.8-4mm
Shape : coil,spool,straight.
Surface : pickling surface/bright surface

Application : industrial,macine parts,medical etc



Gr1/Gr2/ErTi-1/ErTi-2 dia=0.8mm/1.0mm/1.2mm/1.6mm/2.0mm/2.4mm/2.5mm/3.0mm/3.5mm in stock,ensure delivery 3-5 days

Gr5/ErTI-5/Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity

Gr12/ErTi-12 need production,lead time 10 working days



Titanium Wires
Finish Type Available Shapes Minimum Diameter Diameter Tolerance Price Leval
Acid Washed Coil or Straight 0.2mm Normal Lower
Polished Coil or Straight 0.2mm Normal Medium
Grinding Polished Only Straight 0.8mm Accurate and can be very small Higher



Grade Tensile Strength (min) Yield strength 0.2%Offset min Elongation in 2in. or 50mm % (min)

  Ksi Mpa Ksi Mpa
Gr5 130 895 120 828 10



2.Gr5 Titanium wire--Three kinds of shape / Coil & Spool & Straight wire

Industrial Medical Titanium Wire Gr7 Gr12 0.8mm-4mm ASTM B863 Straight Shape 0

Titanium Spool wire--dia<4.0mm ,if you need we can make spool wire
                                     dia1.0-2.0mm,Precision winding,used for MIG
                                     dia0.2mm-3.0mm,thin wire,used for titanium mesh
Spool OD=270mm to 300mm,one spool wire weight is about 6-10kgs.or as per requirment

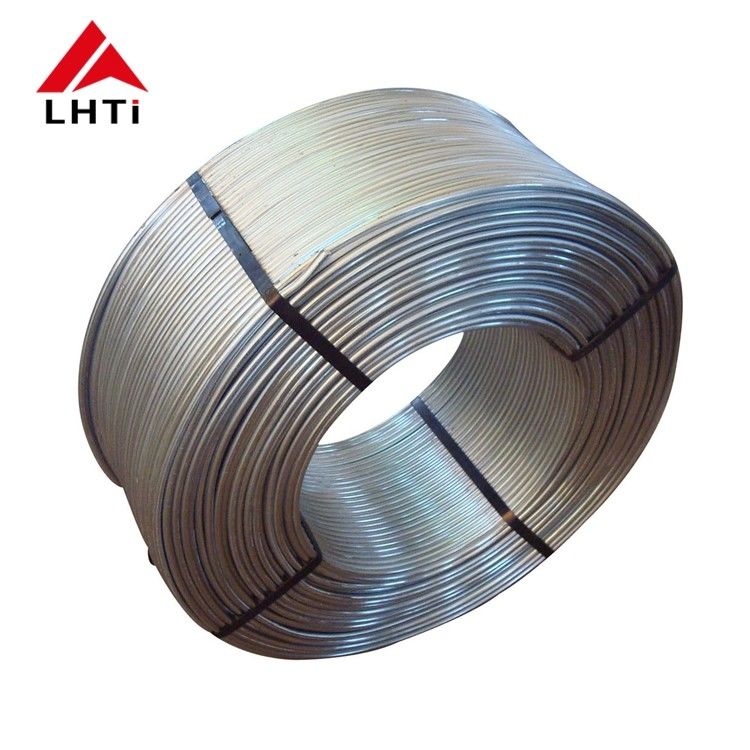

Titanium Coil wire--dia>2.0mm,we can make Coil wire
Coil OD = 450mm,one coil weight is about 10-15kg,or as per requirment

Titanium straight wire--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to 1000mm
90% titanium straight wire used for welding(TIG filler rod)



3.Pure titanium wire with Cold Drawing



Cold Drawn : Pury titanium (Gr1 /Gr2/Gr4 ) and Gr7,using mould,drawing directly, get the titanium wire diameter

Hot Drawing : titanium alloy wire use hot drawing to process.need to heated wire to 800 degrees Celsius temperature, into the mold,then hot drawing technical to get what you want the diameter of the titanium wire

Industrial Medical Titanium Wire Gr7 Gr12 0.8mm-4mm ASTM B863 Straight Shape 1

4.Titanium Wire Proccess

Industrial Medical Titanium Wire Gr7 Gr12 0.8mm-4mm ASTM B863 Straight Shape 2



5.Package & Delivery



Industrial Medical Titanium Wire Gr7 Gr12 0.8mm-4mm ASTM B863 Straight Shape 3



---Coil and spool package in carton casse or plywood case

---Straight wire package in Plastic case,outside is standard export plywood case.

---accept customer requirment

Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.



Delivery :According goods weight and shipment address,choose best shipment way for you.

               Shipment by express(DHL.Fedex,TNT,EMS,UPS),Shipment time will takes 4-7 days

               Shipment by sea or by Air

               Shipment to Your client in China



6.Application scenarios



Offshore oil
Petrochemical products
Gas treatment
Medicine
Power station
Pharmaceutical equipment
Chemical Equipment
Sea water equipment
Heat exchanger
Condenser



We still have more,If you need,Catalog will be send.
