Home > products > Titanium Wire > AWS A5.16 ErTi-7 Titanium Filler Wire , TIG Titanium Welding Rod 2mm 2.6mm 3.2mm

AWS A5.16 ErTi-7 Titanium Filler Wire , TIG Titanium Welding Rod 2mm 2.6mm 3.2mm

Product Details

Place of Origin: China

Brand Name: LHTI

Certification: ISO9001

Model Number: LH-14

Payment & Shipping Terms

Minimum Order Quantity: 1kg

Price: US dollar $144/kg--US dollar $245/kg

Packaging Details: coil and spool package in carton casse or plywood case,straight wire package in Plastic case,outside is standard export plywood case

Delivery Time: In stock--3 days.production--15 working days

Payment Terms: L/C, D/P, T/T, Western Union,paypal etc

Supply Ability: 50000 kgs per month

Get Best Price
Highlight:

titanium alloy wire

,

pure titanium wire

Product Name:
AWS A5.16 ErTi-7 Titanium Wire 1mm 1.2mm 1.6mm 2mm 2.4mm 2.6mm 3.2mm Welding Rod Filler Rod TIG Wire
Grade:
ErTi7
Shape:
Straight Or Coil
Material:
Pure Titanium
Surface:
Pickling Surface
Package:
Standard Export Package
Hot Sale Diameter:
1mm 1.2mm 1.6mm 2mm 2.4mm 2.6mm 3.2mm
Length:
1000mm
Key Words:
Thin Titanium Wire
Keyword:
Titanium Filler Rod
Product Name:
AWS A5.16 ErTi-7 Titanium Wire 1mm 1.2mm 1.6mm 2mm 2.4mm 2.6mm 3.2mm Welding Rod Filler Rod TIG Wire
Grade:
ErTi7
Shape:
Straight Or Coil
Material:
Pure Titanium
Surface:
Pickling Surface
Package:
Standard Export Package
Hot Sale Diameter:
1mm 1.2mm 1.6mm 2mm 2.4mm 2.6mm 3.2mm
Length:
1000mm
Key Words:
Thin Titanium Wire
Keyword:
Titanium Filler Rod
AWS A5.16 ErTi-7 Titanium Filler Wire , TIG Titanium Welding Rod 2mm 2.6mm 3.2mm

AWS a5.16 ErTi-7 titanium wire 1mm 1.2mm 1.6mm 2mm 2.4mm 2.6mm 3.2mm welding rod filler rod TIG wire



Products information



Grade : ErTi-7
Standard : AWS a5.16 (welding standard)
Diameter
1mm 1.2mm 1.6mm 2mm 2.4mm 2.6mm 3.2mm
Shape : coil,straight.
Surface : pickling surface/bright surface

Application :welding TIG or MIG



Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity



Titanium wire
Finish Type Available Shapes Minimum Diameter Diameter Tolerance Price Leval
Acid Washed Coil or Straight 0.2mm Normal Lower
Polished Coil or Straight 0.2mm Normal Medium
Grinding Polished Only Straight 0.8mm Accurate and can be very small Higher



Common Titanium Wire Tolerance sheet
Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm
Tolerance +/- 0.025 +/-0.04 +/-0.05
Length 200-500mm 500-1000mm 1000-2000mm
Tolerance +/-1.0 +/-1.5 +/-2.



Grade Tensile Strength (min) Yield strength 0.2%Offset Elongation in 2in. or 50mm % (min)
    Min
  Ksi Mpa Ksi Mpa
Gr7 50 345 40 275 18

AWS A5.16 ErTi-7 Titanium Filler Wire , TIG Titanium Welding Rod  2mm 2.6mm 3.2mm 0

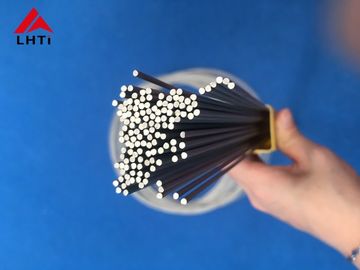

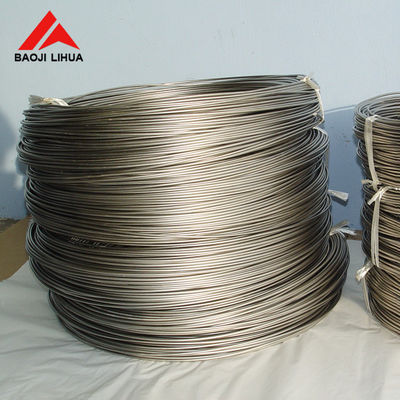

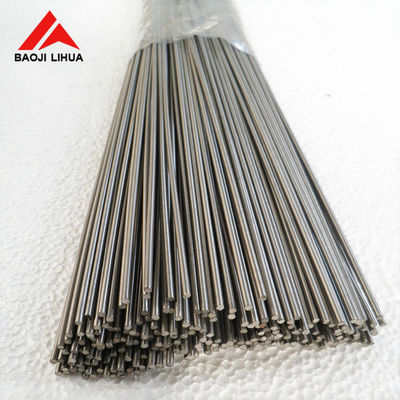

Titanium wire for welding (TIG filler rod)

AWS A5.16 ErTi-7 Titanium Filler Wire , TIG Titanium Welding Rod  2mm 2.6mm 3.2mm 1AWS A5.16 ErTi-7 Titanium Filler Wire , TIG Titanium Welding Rod  2mm 2.6mm 3.2mm 2

Titanium base welding metals in welding rod, welding wire, electrode, and bar form. Used for MiG, TiG, and Arc welding. Range from commercially pure titanium to titanium alloys and super alloys.



Welding processes are as varied as the workpieces they create, and choosing the right one is vital to your project’s success. While MIG and TIG welding both form the weld using an electric arc, the techniques are quite different, and choosing the wrong one can lead to more than one headache.



MIG and TIG welding both use an electric arc to create the weld. The difference between the two is the way the arc is used. MIG (metal inert gas) welding uses a feed wire that constantly moves through the gun to create the spark, then melts to form the weld. TIG (tungsten inert gas) welding uses long rods to fuse two metals directly together.



---LHTi have professional welding technology teams that can provide free welding consultation and other services to our customers.



4.Process

AWS A5.16 ErTi-7 Titanium Filler Wire , TIG Titanium Welding Rod  2mm 2.6mm 3.2mm 3

Cold Drawn : Gr7 & ErTi-7 titanium wire,according to the fixed mold to cold drawing, get the final titanium wire diameter



5.Package & Delivery

AWS A5.16 ErTi-7 Titanium Filler Wire , TIG Titanium Welding Rod  2mm 2.6mm 3.2mm 4



---Coil and spool package in carton casse or plywood case

---Straight wire package in Plastic case,outside is standard export plywood case.

---accept customer requirment



Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.





LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.



Looking forwarder to your inquiry
