ErTi5 Ti6Al4V Titanium Welding Wire Titanium Rod 0.6mm 0.8mm 1mm For MIG Or TIG

Basic Information
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-14
Minimum Order Quantity: 5 kg
Price: US dollar $45/kg--US dollar $65/kg
Packaging Details: coil and spool package in carton casse or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: In stock--3 days.production--15 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Detail Information
Product Name: ErTi5 Ti6Al4V Titanium Welding Wire Titanium Rod 0.6mm 0.8mm 1mm For MIG Or TIG Grade: Grade5 / ErTi-5
Shape: Coil,spool Material: Pure Titanium
Surface: Pickling Surface/polish Surface Package: Standard Export Package
Hot Sale Diameter: 0.6mm 0.8mm 1mm Etc Key Words: Thin Titanium Wire
High Light:

titanium alloy wire

,

pure titanium wire


Product Description

ErTi5 Ti6Al4V Titanium Welding Wire Titanium Rod 0.6mm 0.8mm 1mm For MIG Or TIG



1.Products information



Grade :GR5(TC4) / ErTi-5/ (Ti6Al4V)
Standard : AWS a5.16 Welding wire standard
Diameter
0.6mm 0.8mm 1mm
Shape : coil,spool
Surface : pickling surface/bright surface

Application :welding (TIG & MIG)



Gr5/ErTI-5 some size in stock,some size need production,lead time 10 working days.according your quantity



Some more informations about Titanium Wires
Finish Type Available Shapes Minimum Diameter Diameter Tolerance Price Leval
Acid Washed Coil or Straight 0.2mm Normal Lower
Polished Coil or Straight 0.2mm Normal Medium
Grinding Polished Only Straight 0.8mm Accurate and can be very small Higher



Common Ti Wires Tolerance
Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm
Tolerance +/- 0.025 +/-0.04 +/-0.05
Length 200-500mm 500-1000mm 1000-2000mm
Tolerance +/-1.0 +/-1.5 +/-2.



Grade Tensile Strength (min) Yield strength 0.2%Offset (min) Elongation in 2in. or 50mm % (min)

  Ksi Mpa Ksi Mpa
Gr5 130 895 120 828 10


2.Titanium wire---Three kind of type for your choose

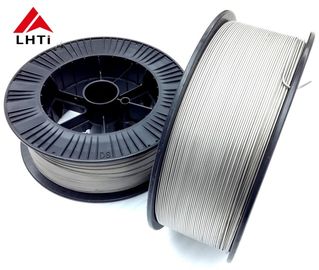

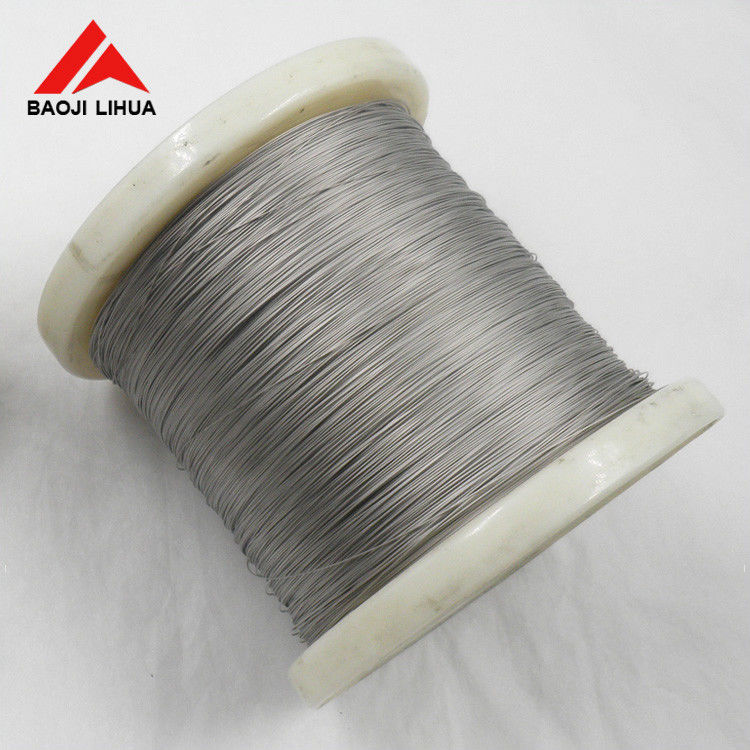

Titanium wire in Spool--dia<6.0mm ,if you need we can make spool wire
                                          dia1.0-2.0mm,Precision winding,used for MIG
                                          dia0.2mm-3.0mm,thin wire,used for titanium mesh
Spool OD=270mm to 300mm,one spool wire weight is about 6-10kgs.or as per requirment



Titanium wire in coil--dia>2.0mm,we can make Coil wire
Coil OD = 450mm,one coil weight is about 10-15kg,or as per requirment

Titanium wire in straight--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to 1000mm
90% titanium straight wire used for welding(TIG filler rod)



ErTi5 Ti6Al4V Titanium Welding Wire Titanium Rod 0.6mm 0.8mm 1mm For MIG Or TIG 0



3.Welding show--titanium wire for TIG and MIG



Titanium Wire is slivery metal with excellent properties. Density is 4.54g/cm³ lighter than Steel. But mechanical strength is higher than Steel, 2 times stronger than Aluminium, 5 times stronger than Magnesium. Pure Titanium Wire is high temperature resistance and melting point is 1942K.

ErTi5 Ti6Al4V Titanium Welding Wire Titanium Rod 0.6mm 0.8mm 1mm For MIG Or TIG 1

ErTi5 Ti6Al4V Titanium Welding Wire Titanium Rod 0.6mm 0.8mm 1mm For MIG Or TIG 2

TIG Welding titanium wire, also known as Gas Tungsten Arc Welding (GTAW), is a process that joins metals by heating them with an arc between a tungsten electrode (non-consumable) and the work piece. The process is used with a shielding gas and may also be used with the addition of filler metal.
The difference between the two is the way the arc is used. MIG (metal inert gas) welding uses a feed wire that constantly moves through the gun to create the spark, then melts to form the weld. TIG (tungsten inert gas) welding uses long rods to fuse two metals directly together



---We have professional welding technology teams that can provide free welding consultation and other services to our customers.

---If you are not sure what type of titanium wire you need for your project, we were glad to help you choose the right wire



4.Process



Hot Drawn : Gr5 alloy titanium wire,when drawn need heating wire ,When the temperature reached 800 degrees Celsius, carries on the drawing

ErTi5 Ti6Al4V Titanium Welding Wire Titanium Rod 0.6mm 0.8mm 1mm For MIG Or TIG 3

5.Package & Delivery



ErTi5 Ti6Al4V Titanium Welding Wire Titanium Rod 0.6mm 0.8mm 1mm For MIG Or TIG 4



---Coil and spool package in carton casse or plywood case

---Straight wire package in Plastic case,outside is standard export plywood case.

---accept customer requirment



Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.



Application scenarios



Offshore oil
Petrochemical products
Gas treatment
Medicine
Power station
Pharmaceutical equipment
Chemical Equipment
Sea water equipment
Heat exchanger
Condenser



LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.
