Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Disc
Payment & Shipping Terms
Minimum Order Quantity: 5 PCS
Price: USD13.00-38.00 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 12-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 500000 piece per month
Technique: |
CNC, Forged |
Grade: |
Gr9 Gr1 Gr2 Gr5 Gr12 |
Thickness: |
8mm-25mm |
Shape: |
Round Shape |
Technique: |
CNC, Forged |
Grade: |
Gr9 Gr1 Gr2 Gr5 Gr12 |
Thickness: |
8mm-25mm |
Shape: |
Round Shape |
Gr9 Gr1 Gr2 Gr5 Gr12 milling pvd titanium disc ASTM B338 forged annealed
1. Product Information
Material: Pure Titanium, Titanium Alloy
Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12, etc.
Features: Superlight, High strength, Low density, Resistant to high or low temperatures, Anti-corrosion and non-reactive to acids.
Applications: Electroplating, Chemical engineering and Petrochemical technology
Size: Diameter30-2000mm, Thickness3.0-300mm as the clients request
2. Physical Properties
Physical Properties | |||||
Tensile Strength(min) | Yield Strength(min) | Elongation(%) | |||
ksi | MPa | ksi | MPa | ||
Grade 1 | 35 | 240 | 20 | 138 | 24 |
Grade2 | 50 | 345 | 40 | 275 | 20 |
Grade 3 | 65 | 450 | 55 | 380 | 18 |
Grade 4 | 80 | 550 | 70 | 483 | 15 |
Grade 5 | 130 | 895 | 120 | 828 | 10 |
Grade 7 | 50 | 345 | 40 | 275 | 20 |
Grade 9 | 90 | 620 | 70 | 483 | 15 |
Grade 12 | 70 | 483 | 50 | 345 | 18 |
Grade 23 | 120 | 828 | 110 | 759 | 10 |
3. Chemical requirements
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |

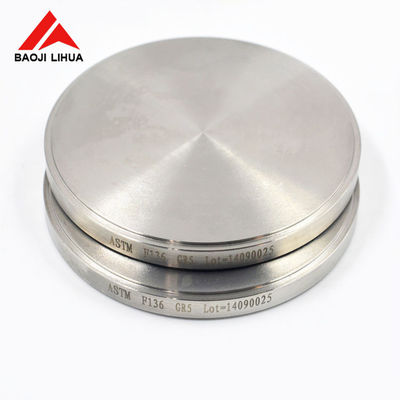

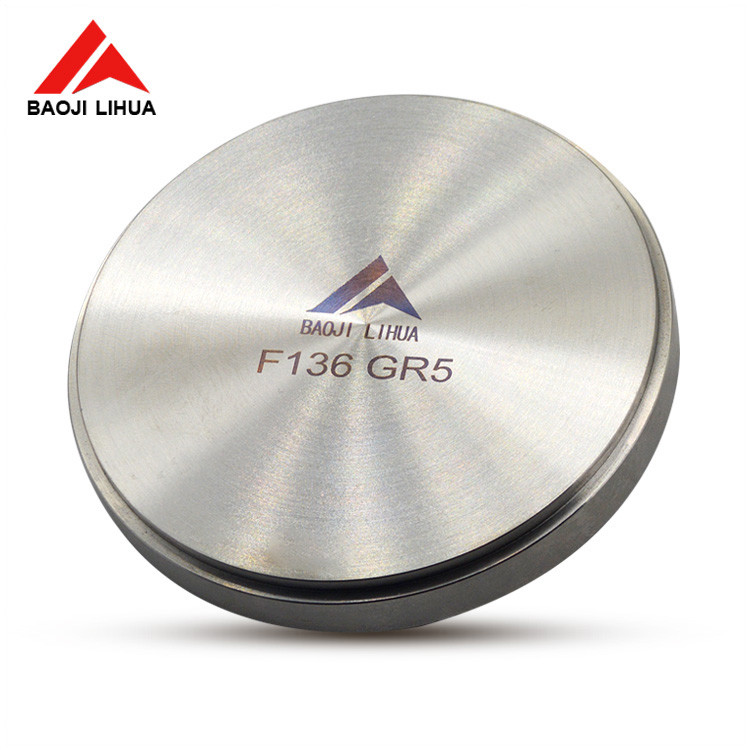

4. Detailed Images
5.Releted Products
6. FAQ
FAQ |
Q1.--How can you ensure the product quality? |
--All products are manufactured according to ASTM standard (Bolts are according to ASME MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? |
--Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? |
--Sure. |
Q4.--What about the payment terms? |
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? |
--Yes, Please click here. http://www.metalstitanium.com(Independent website) |
Q6.--What is the necessary information for a inquiry? |
--Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
As a leading manufacturer of titanium products for over 15 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.
If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.
