Home > products > Titanium Rod > Cold Forged Titanium Rod Dia 35mm 185mm L 85mm ASTM B381 F5 F2

Cold Forged Titanium Rod Dia 35mm 185mm L 85mm ASTM B381 F5 F2

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium rod

Payment & Shipping Terms

Minimum Order Quantity: 100 kg

Price: USD22.00-31.00 per kg

Packaging Details: Plywood box with soft foam inside for additional protection against any shipping-induced trauma

Delivery Time: 15-25 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union

Supply Ability: 300000 kg per month

Get Best Price
Highlight:

solid titanium rod

,

titanium hex bar

Material:
Pure Titanium, Alloy Titanium
Color:
Natural
Surface:
Bright,Polished,Pickling
Condition:
Annealed;M
MOQ:
100 Kg
Diameter:
6mm-350mm
Material:
Pure Titanium, Alloy Titanium
Color:
Natural
Surface:
Bright,Polished,Pickling
Condition:
Annealed;M
MOQ:
100 Kg
Diameter:
6mm-350mm
Cold Forged Titanium Rod Dia 35mm 185mm L 85mm ASTM B381 F5 F2



ASTM B381 F5 F2 titanium rod bar dia 35mm 120mm 185mm L 85mm cold forged





1. Product Information





A. Standard: ASTM B348,ASTM B381, AMS 4928.



B. Material grade: Grade 1, grade 2, grade 5, grade 9.



C. Diameter size in stock: 3mm/6mm/8mm/10mm/20mm/30mm, length: 1000mm-6000mm, or cutting to your needed length



D. Product Status: Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status



E. Shape: Round bar, square bar , hex bar



F. Feature: 1.Polished surface without any defects free from cracks no pitting.

                  2.Two ends flatting making sure length tolerance and good looking.









2. Physical Properties



Physical Properties
  Tensile Strength(min) Yield Strength(min) Elongation(%)
ksi MPa ksi MPa
Grade 1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade 3 65 450 55 380 18
Grade 4 80 550 70 483 15
Grade 5 130 895 120 828 10
Grade 7 50 345 40 275 20
Grade 9 90 620 70 483 15
Grade 12 70 483 50 345 18
Grade 23 120 828 110 759 10









3. Production Process





Titanium rod processing Flow:



Titanium Sponge and master alloys Compacting electrodes Melting → Forging → Billets → Procision forging → Machining → Bars





Cold Forged Titanium Rod Dia 35mm 185mm L 85mm ASTM B381 F5 F2 0

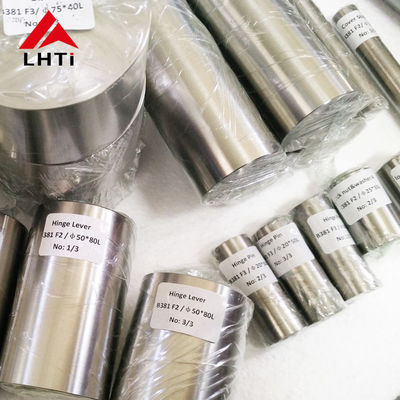

4. Detailed Images





Cold Forged Titanium Rod Dia 35mm 185mm L 85mm ASTM B381 F5 F2 1

Cold Forged Titanium Rod Dia 35mm 185mm L 85mm ASTM B381 F5 F2 2







5. Related Product



Cold Forged Titanium Rod Dia 35mm 185mm L 85mm ASTM B381 F5 F2 3



6. Quality Assurance:



A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.



B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.



C. Chemical Composition making sure all chemical components can satisfy customer’s demands.



D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.









7. FAQ



FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
