Grade 2 Titanium Block Forged 300mm 500mm Industry Customized Disk Shape

Product Details

Place of Origin: Baoji, Shaanxi, China

Brand Name: LH-Ti

Certification: EN10204.3.1,SGS,TUV,BV

Model Number: LH-Ti06

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: 23.5 USD-32.6 USD/KG

Packaging Details: Standard exporting packing

Delivery Time: 10-15 working days

Payment Terms: T/T, Western Union, L/C, D/A, D/P

Supply Ability: 500 tons/month

Get Best Price
Highlight:

titanium disk

,

titanium block

Product Name:
Grade 2 Gr2 Titanium Disc Forged 200mm 250mm 300mm 500mm Industry Customized
Material:
Gr2
Standard:
ASTM B381, ASME SB381
Diameter:
50-1300mm
Height:
35-150mm
Technique:
Forged, CNC Machined
Shape:
Disc/ Disk
Quality Control:
Ultrasonic Testing
Product Name:
Grade 2 Gr2 Titanium Disc Forged 200mm 250mm 300mm 500mm Industry Customized
Material:
Gr2
Standard:
ASTM B381, ASME SB381
Diameter:
50-1300mm
Height:
35-150mm
Technique:
Forged, CNC Machined
Shape:
Disc/ Disk
Quality Control:
Ultrasonic Testing
Grade 2 Titanium Block Forged 300mm 500mm Industry Customized Disk Shape

Grade 2 gr2 titanium disc forged 200mm 250mm 300mm 500mm industry customized





Pure titanium has extremely high corrosion resistance in most media, especially in neutral,

oxidizing and seawater media. The corrosion resistance in seawater is higher than that of

aluminum alloys, stainless steels and nickel-based alloys.So it has been used in the industrial,

agricultural environment and marine atmosphere for several years, and the surface has not

changed.Titanium is highly stable in various concentrations of nitric acid and chromic acid,

and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.



Standard:ASTM / ASME B381



Material Grade:Gr2 titanium



Technique:Forged, CNC machined



Type:Round disc



Quality test:Appearance, Chemical composition, Physical properties,Ultrasonic Testing



Application:

1. Electroplating;
2. Chemical engineering & Petrochemical technology;
3.Use in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display

and optical applications



Available size:

Diameter:50-200mm*Height 2-140mm

Diameter:200-400mm*Height 25-150mm

Diameter:400-600*Height 30-110mm



Chemical composition (Wt%)
ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti



Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

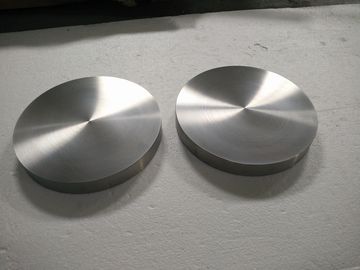

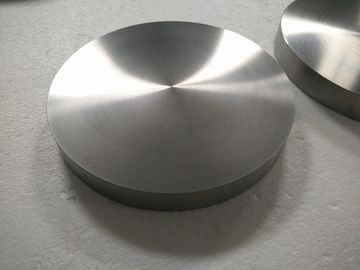

Detailed pictures:



Grade 2 Titanium Block Forged 300mm 500mm Industry Customized Disk Shape 0

Grade 2 Titanium Block Forged 300mm 500mm Industry Customized Disk Shape 1Grade 2 Titanium Block Forged 300mm 500mm Industry Customized Disk Shape 2



Production process:

 Grade 2 Titanium Block Forged 300mm 500mm Industry Customized Disk Shape 3



About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---

It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in

manufacturing titanium products.Our advantagous products is titanium forgings(titanium disc,

titanium ring, titanium flange) .With more than 14 years export Experience, our products was

sold to Asia, Europe, North America in large quantity.In addition to provide preferential price

for customers, we pay much attention to quality, and have a good after-sales service.

All products we produced are based on the standard: Amecian standard,German standard ,

Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is

certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,

LR'S ,TUV and other international inspection agency .Third party test is available.

Grade 2 Titanium Block Forged 300mm 500mm Industry Customized Disk Shape 4

Packaging Terms:
Moisture-proof cloth and foam cotton inside, plywood case outside.



Shipping Terms:
1.For the sample order: By international express such as: DHL, TNT, EMS, UPS and so on.
2. For large quantity order: By air or sea transport.



All the detail terms we will discuss with customers in the contract.



Welcome to contact!
