| Place of Origin: | Baoji, China |
|---|---|
| Brand Name: | LIHUA |
| Certification: | ISO9001, TUV etc. |
| Model Number: | LH-THS |
| Minimum Order Quantity: | 100kg |
| Price: | US dollar $25/kg--US dollar $60/kg |
| Packaging Details: | plywood box for export |
| Delivery Time: | 3-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 kgs per month |
| Product Name: | Titanium Welding Wire | Standard: | AWS A5.16 |
|---|---|---|---|
| Application: | Welding | Shape: | Straight |
| Surface: | Bright | Material: | Gr2 |
| Diameter: | 1mm/1.2mm/1.6mm/2mm | Package: | 0.5kg Per Package |
| High Light: | titanium alloy wire,thin titanium wire |
||

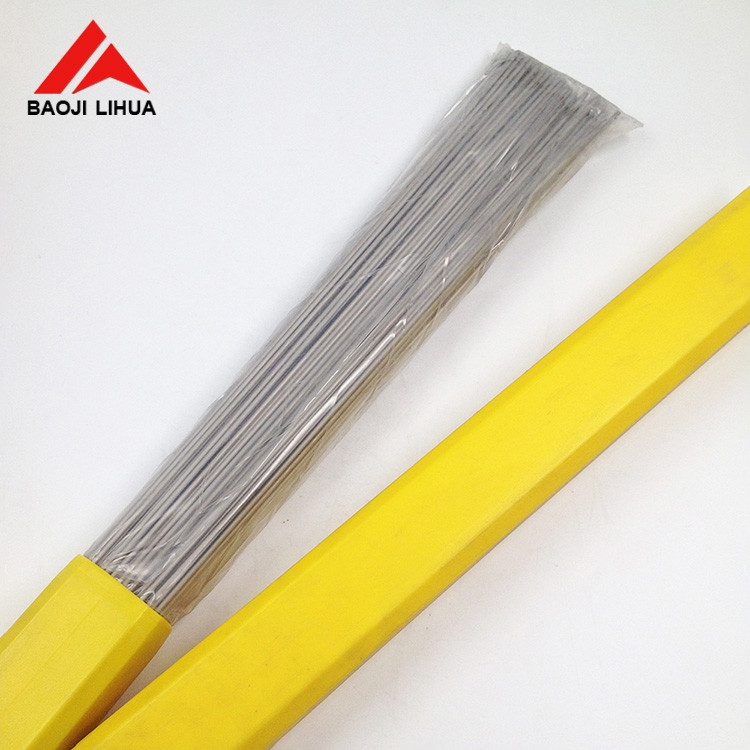

Dia 1mm 1.2mm 1.6mm 2mm straight gr2 titanium welding rod / wire in stock
1. Product information
Grade: ERTi-1, ERTi-2, ERTi-5, ERTi-7, ERTi-12
Standard: AWS A5.16
Application: welding
Size: 1mm/1.2mm/1.6mm/2mm
Shape: straight
Surface: Polishing, Pickling
Advantage:
Grade 2 is the most common unalloyed grade. It is generally the most readily available in all product forms and has the lowest cost.
2. Chemical requirements
| ERTi | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
3. Tensile requirements
| ERTi | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
4. Detailed images
5. Why Choose us
6. FAQ
| FAQ |
| Q1.--How can you ensure the product quality? |
| --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
| Q2.--Can you print our LOGO on the products? |
| --Sure, and we welcome the customerized products. |
| Q3.--Can we get the free sample? |
| --Sure. |
| Q4.--What about the payment terms? |
| --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
| Q5.--Do you have your website? |
| --Yes, Please click here. http://www.metalstitanium.com(Independent website) |
| Q6.--What is the necessary information for a inquiry? |
| --Product name, specification, material grade and quantity. If customized products, your drawing and special requests also needed. |
