Erti Titanium Welding Rod Ti Filler Dia 0.8mm 1.6mm 2mm High Performance

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Titanium wire
Minimum Order Quantity: 30 kg
Price: USD16.00-38.00 per kg
Packaging Details: Plastic bag with laber, outside plastic box, then plywod box
Delivery Time: 10-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 20000 kg per month
Detail Information
Material: Pure Titanium, Alloy Titanium Grade: Gr1, Gr2, Gr7, Gr9
Diameter: 0.5mm-3mm Straight Wire Length: 1000mm-3000mm
Package Box: 5kg Per Plastic Box MOQ: 30 Kg
High Light:

titanium alloy wire

,

pure titanium wire


Product Description

Dia 0.8mm 1mm 1.6mm 2mm titanium wire erti welding rod per kg ti filler







1. Definition of different levels





ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.



ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.



ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.









2. Available Diameter, Type & Packing



Size (mm) Dia 0.5 Dia 0.8 Dia 1.0 Dia 1.2 Dia 1.6 Dia 2.0 Dia 2.4 Dia 2.5 Dia 3.0 Dia 3.2 Dia 4.0
Size (inch) 0.020' 0.031" 0.039" 0.047" 0.062" 0.079" 0.093" 0.098' 0.12" 0.125" 0.16'
Straight
Spool
Coil









3.Guide to choose of filler metal for general purpose titanium welding



ASTM Base Metal Grade Base metal Normal composition Recommended Filler Metal
  UTS(min.) ksi[Mpa] YS(min.) ksi[Mpa]
Grade 1 35[240] 20[138] Unalloyed Ti CP1 ERTi-1
Grade 2 50[345] 40[275] Unalloyed Ti CP2 ERTi-2
Grade 4 80[550] 70[483] Unalloyed Ti CP4 ERTi-4
Grade 5 130[895] 120[828] Ti 6AL-4V ERTi-5
Grade 7 50[345] 40[275] Ti 0.15Pd ERTi-7





4.Chemical compostion requirements



AWS CHEMICAL SPECIFICATIONS
AWS A5.16 UNS C O N H I Al V Pd
  Number
ERTi 1 R50100 0.03 0.03-0.10 0.012 0.005 0.08 - - -
ERTi 2 R50120 0.03 0.08-0.16 0.015 0.008 0.12 - - -
ERTi 4 R50130 0.03 0.08-0.32 0.025 0.008 0.25 - - -
ERTi 5 R56400 0.05 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5 -
ERTi 7 R52401 0.03 0.08-0.16 0.015 0.008 0.12 - - 0.12-0.25









5. Our Service



  • We have the stocks so we would provide our clients the short delivery time.
  • Strict control from raw materials till products finished, so the quality is guaranteed.
  • Customized sizes are offered as well as specified sizes and multiple sizes.
  • Strict quality test from raw material to product.
  • Original mill sheet test reports EN 10204.3.1 is available.

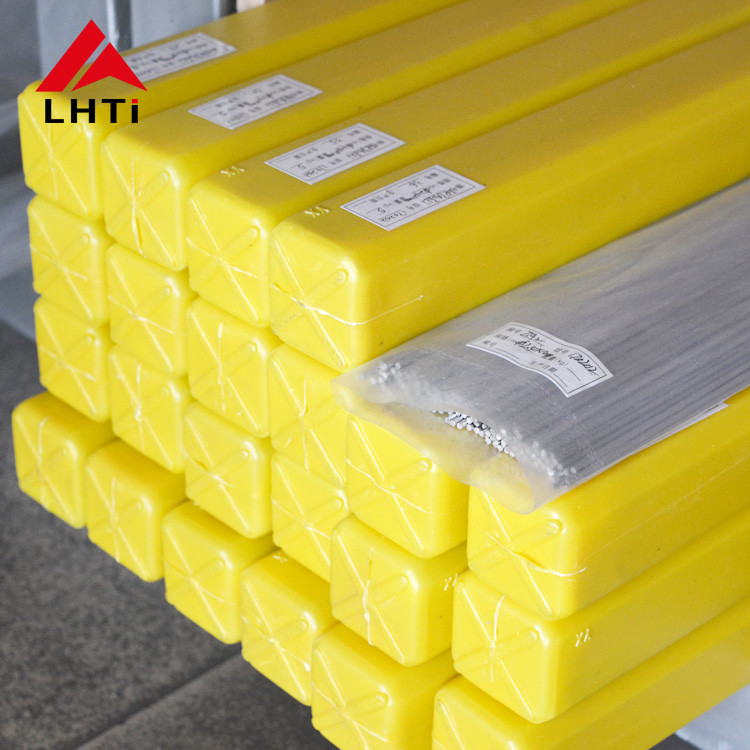

6. Detailed Images and Application





Erti Titanium Welding Rod Ti Filler Dia 0.8mm 1.6mm 2mm High Performance 0

Erti Titanium Welding Rod Ti Filler Dia 0.8mm 1.6mm 2mm High Performance 1







7. FAQ



Q1.--How can you ensure the product quality?



--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.



Q2.--Can you print our LOGO on the products?



--Sure, and we welcome the customized products.



Q3.--Can we get the free sample?



--Sure.



Q4.--What about the payment terms?



--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.





05.--What is the necessary information for a inquiry?



--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
