Product Details
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001,CE
Model Number: LH-11
Payment & Shipping Terms
Minimum Order Quantity: 10kg,accept sample test
Price: US dollar $15/kg--US dollar $30/kg
Packaging Details: Standard plywood case package in outside.Internal fill the pearl cotton or according your requirment
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T, Western Union,according your requirment
Supply Ability: 50000 tons per month
Product Name: |
High Quality Grade 5 Titanium Alloy Bar Ti6AL4V Titanium Rod Price Per Kg In Stock |
Material: |
Titanium Alloy |
Grade: |
Gr5 / Ti6Al4V |
Hot Sale Size: |
3mm-100mm |
Standard: |
ASTM B348 |
Length: |
6000mm Max |
Shape: |
Round Bar |
Product Name: |
High Quality Grade 5 Titanium Alloy Bar Ti6AL4V Titanium Rod Price Per Kg In Stock |
Material: |
Titanium Alloy |
Grade: |
Gr5 / Ti6Al4V |
Hot Sale Size: |
3mm-100mm |
Standard: |
ASTM B348 |
Length: |
6000mm Max |
Shape: |
Round Bar |

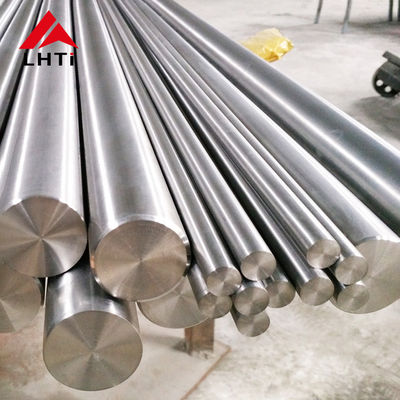

High Quality Grade 5 Titanium Alloy Bar Ti6AL4V Titanium Rod Price Per Kg
Titanium round bar is a very popular for many products.Round bar lends itself to a multitude of products from fasteners to jewelry.
Titanium round bar is available in most of the almost 40 grades, with the most common being grade 5 and grade 2. The medical field often uses small-diameter round bar for body implantable fasteners and dental appliances. Round bar is made from very small diameters of wire for welding, all the way up to larger diameters (such as the 355.6mm diameter), used for clutch and flywheels.
Name | Titanium Bar |
Standard | ASTM B348 |
Grade | Commercially Pure Grade 5 |
Diameter | 3.0mm-200mm |
Length | 500mm-6000mm |
Tolerance | h6,h7,h8,h9 |
Technique | Forging ,Machining |
Surface | acid surface or polishing, sand blasted surface |
Shape | Round, flat, square, hexagonal,hollow |
Application | Oil.Medical,Chemical industrial etc |
Titanium Round Bar | |||
Diameter (Inches) | Appx. Weight Per Foot | Diameter (Inches) | Appx. Weight Per Foot |
0.1875 | .05 | 3.25 | 16.22 |
0.25 | .10 | 3.5 | 18.82 |
0.3125 | .15 | 3.75 | 21.60 |
0.375 | .22 | 4.0 | 24.58 |
0.4375 | .29 | 4.25 | 27.74 |
0.5 | .38 | 4.5 | 31.10 |
0.5625 | .48 | 4.75 | 34.01 |
0.625 | .60 | 5.0 | 37.68 |
0.6875 | .71 | 5.25 | 41.54 |
0.75 | .86 | 5.5 | 46.46 |
0.8125 | .99 | 5.75 | 49.83 |
0.875 | 1.18 | 6.0 | 55.30 |
0.9375 | 1.32 | 6.25 | 58.88 |
1.0 | 1.54 | 6.5 | 64.80 |
1.125 | 1.94 | 7.0 | 75.30 |
1.25 | 2.40 | 7.5 | 86.40 |
1.375 | 2.90 | 8.0 | 98.30 |
1.5 | 3.46 | 8.25 | 104.60 |
1.625 | 3.98 | 8.5 | 111.00 |
1.750 | 4.62 | 9.0 | 124.40 |
1.875 | 5.40 | 9.5 | 138.60 |
2.0 | 6.14 | 10.0 | 153.60 |
2.25 | 7.78 | 11.0 | 185.90 |
2.375 | 8.50 | 12.0 | 212.20 |
2.5 | 9.60 | 13.0 | 259.60 |
2.625 | 10.58 | 14.0 | 301.10 |
2.75 | 11.62 | 15.0 | 351.40 |
3.0 | 13.82 | 16.0 | 385.90 |
Chemical Composition
Titanium Bar | |||||||||
Grade | Ti | Al | V | Nb | Fe, max | C, max | N, max | H, max | O, max |
Gr1 | Bal | / | / | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | |
Gr2 | Bal | / | / | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | |
Gr3 | Bal | / | / | 0.30 | 0.08 | 0.05 | 0.015 | 0.35 | |
Gr4 | Bal | / | / | 0.50 | 0.08 | 0.05 | 0.015 | 0.40 | |
Gr5 ELI Ti-6Al-4VELI |
Bal | 5.5~6.5 | 3.5~4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 | |
Ti-6Al-7Nb | Bal | 5.5-6.5 | / | 6.5-7.5 | 0.25 | 0.08 | 0.08 | 0.009 | 0.20 |
Titanium alloy bar the most common applications for this material include aerospace and aviation; petro-chemical/gas & oil; the construction of water treatment plants; power generation facilities; and marine vehicles. Titanium’s light weight and extreme durability make it ideal for situations in which strength is required.
We supply Titanium Round Bar / Titanium Flat Bar / Titanium Hex Bar,Our 6AL-4V round bar is available from 5mm in diameter up to 406.4mm in diameter. Larger diameters may be available as a custom order subject to mill lead times. Availability may vary by alloy. We supply titanium bars to various industries for a variety of purposes.
Why Choose Us?
LHTI is a professional manufactire of titanium products over 16 years.we carry titanium bar stock in a wide variety of grades and sizes, so you can be assured that you’ll find the solutions you need here, no matter what your requirements are. When you need to buy titanium bars, we are the ideal choose.
How to Package & Delivery ?
---1.Wrapping each titanium rods, prevent damage surface of titanium rods in the long-distance transportation
---2.Inside the box stuffed with pearl cotton and sponge.To prevent the rod shaking in the long-distance transportation.
---3.outside is standard plywood case.
---Accept customer requirment
Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
Provide DHL.Fedex,TNT,EMS,UPS service or shipment by Air or by sea.
If you have forwarder in China,we can send to your forwarder.
