AWS A5.16 Titanium Welding Wire

Basic Information
Place of Origin: Baoji ,Shaanxi ,China
Brand Name: LHTI
Certification: ISO9001:2015; SGS;BV;TUV
Model Number: Titanium welding wire
Minimum Order Quantity: 15kg
Price: USD20-30 per kg
Packaging Details: Inside Plastic bag with laber, outside plastic box, then carton box/plywood case
Delivery Time: 7-10 working days
Payment Terms: D/A, D/P, T/T, Western Union, L/C
Supply Ability: 5 tons per month
Detail Information
Standard: AWS A5.16/AMSE SFA 5.16 Grade: ERTI-1,ERTI-2 ERTI-5 ERTI-7 ERTI-12
Diameter: 1.0mm 1.6mm 2mm 2.4mm 3mm 3.2mm Etc. Length: 1000mm
Material: Pure Titanium, Alloy Titanium Shape: Straight, Spool, Coil
Product Name: Titanium Welding Wire Surface: Pickled, Polished
Highlight:

thin titanium wire

,

pure titanium wire


Product Description

AWS A5.16 ERTI-1,ERTI-2 ERTI-5 ERTI-7 ERTI-12 titanium welding wire price per kg



Titanium welding wire has excellent welding process performance, beautiful weld formation, and its welded metals

have excellent comprehensive mechanical properties.
Mainly used for welding of titanium-based alloys.
Radiographic inspection requirements for weld metal inspection: Grade Ⅰ



Titanium wire specifications

A. Titanium wire specifications: φ0.8-φ6.0mm

B. Spectacle titanium wire specification: φ1.0-φ6.0mm special titanium wire

C. Titanium wire specification: φ0.2-φ8.0mm special for hanging tool



Grade

TA0, TA1, TA2, TA3, TA4, TA5, TA6, TA7, TA9, TA10, TC1, TC2, TC3, TC4, TC6, TC11, GR1, GR2, GR3, GR5 Ti6AL4V ELI, Ti6AL7Nb, Ti13Nb13Zr, Ti1533



standard
GB / T, GJB, AWS, ASTM, AMS, JIS


status
Annealed state (M) Hot-worked state (R) Cold-worked state (Y) (annealed, ultrasonic flaw detection)

surface
Pickled surface bright surface

use
Military, medical, sporting goods, glasses, earrings, headwear, electroplating hangers, welding wire and other industries.

Titanium wire carburizing surface treatment
Titanium wire and carbon form a kind of stable carbide with higher hardness. The growth of the carbonized layer between titanium and carbon is determined by the diffusion rate of titanium in the carbonized layer.

The solubility of carbon in titanium is small, at 850X: a total of 0.3%, and it drops to about 0.1% B at 600C. Due to the low solubility of carbon in titanium, basically only through the titanium carbide layer and its lower fork Deposit a layer to achieve the purpose of surface hardening. Carburization must be carried out under the condition of deoxygenation, because the powder suitable for the common carburization of steel faces the surface of carbon monoxide or oxygen-containing carbon monoxide and the hardness of the surface layer reaches 2700MPa and 8500MPa, and it is easy to peel off.

In contrast, under deoxidation or decarburization conditions, a thin layer of titanium carbide may form when carburizing in charcoal. The hardness of this layer is 32OUOMPa, which is consistent with the hardness of titanium carbide. The depth of the carburized layer is roughly greater than the depth of the nitrided layer when nitriding with nitrogen under the same conditions. Under the condition of oxygen enrichment, it must be considered that the absorption of oxygen affects the depth of hardening. Only under a very thin layer thickness, the carburizing of carbon powder in vacuum or argon-methane atmosphere can form sufficient adhesion strength. Compared with this, the use of gas carburizing agent may form particularly hard and good adhesion Hardened layer of titanium carbide. At the same time, the hardening spread formed under the condition of temperature between 950T: and 10201: is between 50fim and. As the thickness of the layer increases, the titanium carbide layer becomes relatively brittle and tends to peel off The dosage additive is gas carburized in an inert gas. When using methane carburization with propane additives, a lower surface hardness is formed. When the adhesive strength reaches 90 OkPa when using gas carburized propane, although the thickness of the hardened layer measured is very thin, it has better wear resistance. Hydrogen is absorbed under the condition of gas carburizing agent, but it has to be removed again during vacuum annealing.





Product name Titanium welding wire
Standard AMSE SFA 5.16/Aws a5.16
Material

Pure Titanium :ERTi-1,ERTi-2,ERTi-3,ERTi-4

Alloy Titanium :ERTi-5 ERTi-7

Diameter

Spool wire:φ 1.0, 1.2, 1.6mm (with wire reel)

Coil wire:   φ 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0mm (no wire reel)

Straight wire: φ 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0, 6.0mm (plastic box packing, 1000mm in length)

Length

Spool wire and coil wire :according to weight

Straight wire:1000mm, or as customer's request

Product situation Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status





Precautions for using titanium welding wire:

(1) Construction workers and welders should wear clean white gauze gloves (no cotton gloves are allowed).

(2) It is strictly forbidden to touch and touch iron objects by hand in the treated welding area.

(3) Welding work should be performed indoors as much as possible, and the ambient wind speed should be ≤0.5m / s

to avoid being affected by the wind.

(4) When welding, short arc welding should be used as much as possible, with a small welding heat input, and the

angle between the nozzle and the weldment should be 70-80 degrees.

(5) When the butt pipe is positioned and welded, its butt gap is generally about 0.5mm.

(6) Each welding seam should be completed as much as possible. The welding seams must be connected. Before

welding,

the joints should be cleaned. The length of the welding meat overlap is 10-15mm.

(7) When welding, the welding torch should not swing left and right, and the melting end of the welding wire must

not move

out of the gas protection area.

(8) Gas should be supplied in advance when welding arc initiation. Welding torch cannot be lifted immediately when

arc is extinguished. Gas supply should be delayed until the temperature drops below 250 ℃.

(9) The distance between the gas shield and the welding torch should be short, and the gap in contact with the pipe

wall should be small. When performing butt welding of pipes, in order to meet the requirements of single-sided welding

and double-sided forming, the welding is performed in two times: one for back-sealing welding (without filler materials

when back-sealing), and the other for forming welding. In multi-layer welding, the previous bead must be completely

cooled before the next bead is welded.

(10) Welding must be completely cleaned of surface impurities such as oil, rust, and moisture.
(11) To prevent the surface temperature of the bead from excessive oxidation during welding, a tail cover must be

added to enhance the protection effect.



Production Process of titanium wire:

Titanium sponge→compacting electrodes→melting→forging→bar billets→hot rolling→cold draw→titanium wires



Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, thorns, marks and inclusions. Minor

local scratches, abrasions, spots and pits that do not exceed the allowable deviation of the wire diameter are allowed.





Detailed pictures:

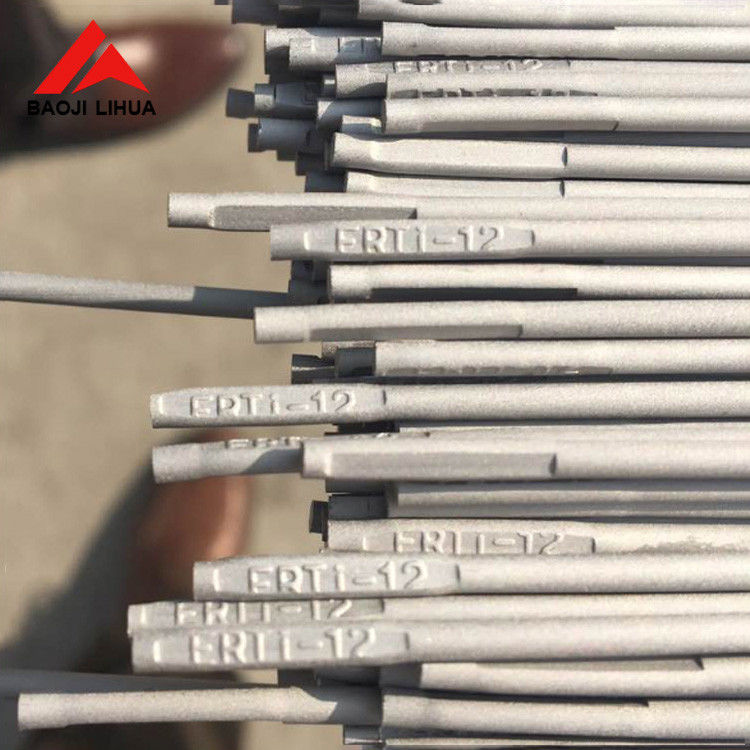

AWS A5.16 Titanium Welding Wire 0

AWS A5.16 Titanium Welding Wire 1



Chemical composition
Grade Essential component<= Impurities <=
Ti Al Mn V C O N H Fe
ERTi-1 Remainder 0.03 0.03-0.10 0.012 0.005 0.08
ERTi-2 Remainder 0.03 0.08-0.16 0.015 0.008 0.12
ERTi-3 Remainder 0.03 0.13-0.20 0.02 0.008 0.16
ERTi-4 Remainder 0.03 0.18-0.32 0.025 0.008 0.25
ERTi-5 Remainder 5.5-6.75 3.5-4.5 0.05 0.12-0.20 0.03 0.015 0.22
ERTi-23 Remainder 5.5-6.5 3.5-4.5 0.03 0.03-0.11 0.012 0.005 0.20
