grade 1 and grade 2 SB338 SB861 titanium seamless tube price per kg

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001-2015
Model Number: tube
Minimum Order Quantity: 100kg
Price: $20--$28/pcs
Packaging Details: Sponge wrap or plastic bag inside, plywood case as outside,
Delivery Time: 15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5Ton per month
Detail Information
Grade: Gr2 Outer Diameter: OD25.4mm OD25mm
Application: Industrial,Chemical Material: GR1.GR2
Standard: ASTM B338 Length: <6000mm,6000mm Or According To Client's Requirement
High Light:

titanium round tube

,

titanium welded pipe


Product Description

titanium tube ASME SB338 1inch OD25mm OD25.4mm titanium tube price per kg





1. SB338 Titanium seamless tube specification



Product name Titanium tube /pipe
Material Titanium(Gr2)
Certificate ISO9001:2015, TUV, EN10204.3.1
Standard ASTM B338
Size

OD19mmxWT0.5-0.8mmx3000-12000mm

OD25mmxWT1.0-1.2mmx3000-12000mm

OD32mmxWT1.0-1.2mmx3000-6000mm

OD38mmxWT1.0-1.2mmx3000-6000mm

Or according customer’s requirement.

Technics Rolled
Status Annealed(M)
Type

Seamless Titanium Tube for heat exchanger, Titanium exhaust tube for automobile,

titanium coil tube

Welded Titanium Tube,

Application

1)Power and chemical plant

2)Automotive components

3)sports

4)marine corrosion

Surface

Acid pickling, CNC lathe surface.

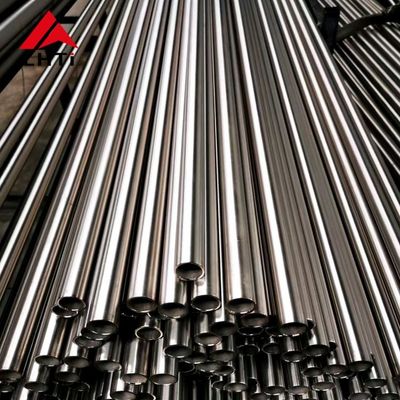

. Details picture



grade 1 and grade 2 SB338 SB861 titanium seamless tube price per kg 0

grade 1 and grade 2 SB338 SB861 titanium seamless tube price per kg 1

grade 1 and grade 2 SB338 SB861 titanium seamless tube price per kg 2



Titanium tube diametere tolerance(mm)



OD 3-10 >10-30 >30-50 >50-80 >80-100 >100
Tolerance ±0.15 ±0.30 ±0.50 ±0.65 ±0.75 ±





Length of titanium tube(mm)



Titanium seamless tube OD ≤15 Random length 500~400
15 500~900
Titanium welded tube WT 0.5~1.25 500~1500
1.25~2.0 500~6000
Titanium welded tube(rolled) WT 2.0~2.5 500~4000
0.5~0.8 500~8000
>0.8~2.0 500~5000

Applied field of different grade titanium:



Titanium in grade 1 and 2 is used in the chemical industry and marine technology,because of its resistance to corrosion.In addition, titanium grade 1/2 is also used in plant engineering, medical technology and in the watch and jewelery industries.

Titanium grade 5 is widely used in aviation industry and machinery industry, automobile industry--It has better physical properties and hardness than pure titanium.

Titanium Grade 7 is preferably used in chemical plants.Due to the high palladium content, Titanium Grade 7 is very resistant to corrosion. Thus, for example, titanium grade 7 is resistant to salt water and iSuitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impact.

Titanium Grade 12 alloy is similar to Titanium Grades 2 and 3 except that Titanium Grade 12 has 0.3% molybdenum and 0.8% nickel. This offers enhanced corrosion resistance.

Gr16 Medium-strength titanium plus 0.04-0.08% Pd for enhanced corrosion properties Titanium tube grades (other grades are available on request).



3. Production process



pipe process.jpg

titanium pipe 4



4. ASME SB388 Test  as below

We provide following tests for Ti seamless and welded tubes

Chemical Composition Visual Inspect Ultrasonic Testing Current Testing
Flattening Testing Flattening Testing Pneumatic Test Hydrostatic Test
Tensile Yield Hardness Elongation



5. Feel free to contact us titanium seamless tube 338 supplier
