Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015;
Model Number: Titanium Sheet
Payment & Shipping Terms
Minimum Order Quantity: 50 kg
Price: USD220 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 10 days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 2 tons per month
Porudct Name: |
Gr7 TA18 Ti0.2Pd Titanium Sheet Plate For Chemical Industry |
Standard: |
ASTM/ ASME B265, |
Material Grade: |
Grade 7 |
Technology: |
Cold Rolled,hot Rolled |
Situation: |
Annealed |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Application: |
Chemicals, Machinery And Equipment Etc. |
Porudct Name: |
Gr7 TA18 Ti0.2Pd Titanium Sheet Plate For Chemical Industry |
Standard: |
ASTM/ ASME B265, |
Material Grade: |
Grade 7 |
Technology: |
Cold Rolled,hot Rolled |
Situation: |
Annealed |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Application: |
Chemicals, Machinery And Equipment Etc. |
| Product mame | Titanium sheet plate |
| Material | Titanium |
| Grade | gr7 |
| Standard | ASTM B265, |
| Thickness | 1mm,2mm,3mm,5mm,6mm,8mm,10mm etc |
| Process | cold rolled, hot rolled |
| Status | M, annealed |
| Surface | pickling, polished |
| Third-party testing | SGS, TUV, BV etc. |
| application |
chemicals, machinery and equipment, electroplating equipment, environmental protection equipment, electronics, watches and clocks, glasses, jewelry, sporting goods, golf and precision processing industries |
Quality supervision: starting from the sponge titanium composition inspection, the upper,
middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic
non-destructive inspection is performed to ensure the quality of the ingot. Physical performance
test to ensure product performance.
Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Titanium sheet in stock:
Thickness(0.5mm/0.6mm/0.8mm/1.0mm)*Width≤1000mm*L≤2000mm
Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm
Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm
Thickness(3.0mm/3.5mm/4.0mm)*Width≤2000mm*L≤6000mm
Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |

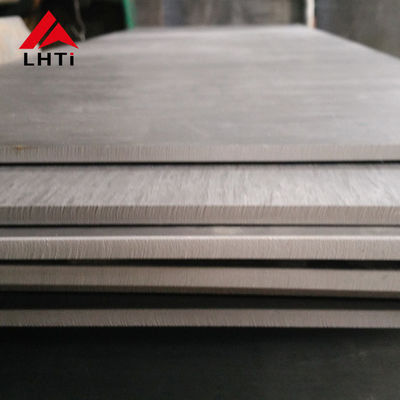

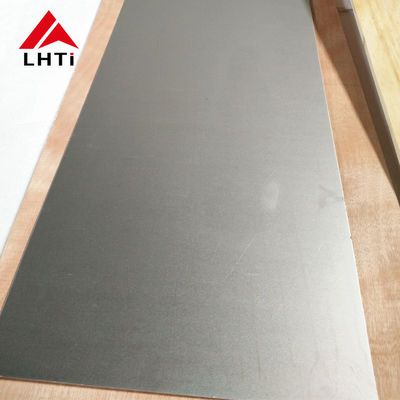

Detailed pictures:
Packaging and shipping:
Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce
collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance
transportation.
Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier
company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.
