Gr1 Gr2 Welded 19mm Titanium Seamless Tube ASTM B338 For Heat Exchanger

Basic Information
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Minimum Order Quantity: If in stock, sample is available; If not in stock,100kgs of each size
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Detail Information
Standard: ASTM B338 Grade: Grade1 Grade 2
OD: 12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm Wall Thickness: 1.0mm/1.2mm Or As Customized
Material: Pure Titanium Purity: 99.5%min
Length: Max 16 Meter Surface: Pickling Surface
Application: Heat Exchanger Production Time: 15 Working Days
Payment Term: T/T,Paypal,Western Union Etc Key Words: Titanium Heat Exchanger Tube
High Light:

19mm Titanium Seamless Tube

,

Gr2 Welded Titanium Seamless Tube

,

ASTM B338 Titanium Seamless Tube


Product Description

 ASTM B338 Gr1 Gr2 Titanium tube seamless welded 19mm for titanium shell and tube heat exchanger



Titanium tube has the advantages of light weight, high strength and mechanical. It is used in heat exchange equipment, such as tubular heat exchanger, coil heat exchanger, coil heat exchanger, condenser, evaporator and transmission pipeline. Many nuclear power industries take titanium tubes as the standard tubes for their units.



Name Pure Titanium & Titanium Alloy Tube /Pipe/Tubing
Tube Shape Round
Material Gr1,Gr2
Standard ASTM SB338
Type

Seamless,Welded

OD 12.7mm 15.2mm 17.8mm 19mm 25.4mm 38.1mm
Wall Thickness 1.0mm/1.2mm or as customized
Length Max 12 meter
End Plain End, Beveled End, Threaded
Certificate EN 10204/3.1B,
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report---TUV,BV,SGS etc
Application

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry





Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti



Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25





Detailed images:

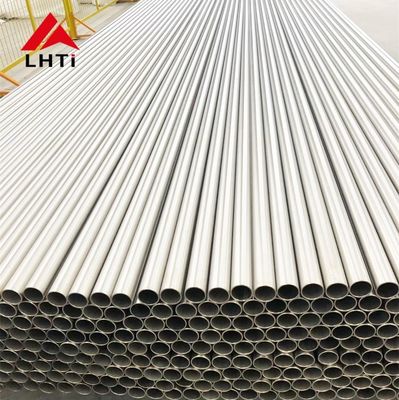

Gr1 Gr2 Welded 19mm Titanium Seamless Tube ASTM B338 For Heat Exchanger 0

Gr1 Gr2 Welded 19mm Titanium Seamless Tube ASTM B338 For Heat Exchanger 1

Gr1 Gr2 Welded 19mm Titanium Seamless Tube ASTM B338 For Heat Exchanger 2Gr1 Gr2 Welded 19mm Titanium Seamless Tube ASTM B338 For Heat Exchanger 3





Titanium tubes Quality testings:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection

tube



Titanium pipes / titanium tubes used in heat exchanger:

Ti heat exchanger pipe1



About us:

Baoji Lihua Non-ferrous Metals Co.,Ltd, founded in 2006, we are one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.



We still have Titanium flange,titanium bends,titanium Pipe fittings etc.More details please feel free contact us.

titanium tube 12

Gr1 Gr2 Welded 19mm Titanium Seamless Tube ASTM B338 For Heat Exchanger 7

lihua titanium rod (1)
