Cold Rolled Annealed ASTM B265 Gr2 1mm Titanium Sheet

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015;
Model Number: Titanium Sheet
Minimum Order Quantity: 5 kg
Price: USD16-18 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 5-15 working days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 10 tons per month
Detail Information
Porudct Name: ASTM B265 Gr2 1mm Titanium Sheet Price Per Kg Standard: ASTM/ ASME B265
Status: Annealed Material Grade: Titanium Gr2
Technology: Cold Rolled, Shape: Flat
Surface: Cold Rolling Application: Chemicals, Machinery And Equipment Etc.
High Light:

Gr2 1mm Titanium Sheet

,

ASTM B265 Titanium Sheet

,

Gr2 Titanium Plate Sheet


Product Description

ASTM B265  Gr2 1mm  titanium sheet price  per kg

Product mame Titanium sheet
Material Titanium
Grade gr2
Standard  ASTM B265, ASME SB265
Thickness

1.0mm

Process cold rolled
Status M, annealed
Surface pickling, polished
Third-party testing  SGS, TUV, BV etc.
application

chemicals, machinery and equipment, electroplating

equipment, environmental protection equipment, electronics, watches and clocks, glasses,

jewelry, sporting goods, golf and precision processing industries





Quality supervision: starting from the sponge titanium composition inspection, the upper, middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic non-destructive inspection is performed to ensure the quality of the ingot. Physical performance test to ensure product performance.





Specification



Specification of Titanium foil/Titanium sheet/Titanium plate
  Thickness(mm) Width(mm) Length(mm)
Titanium foil 0.03-0.5 30-150 30-200
Titanium sheet 0.5-5 30-1000 30-2000
Titanium plate 5-60 200-2800 1000-6000




Chemical requirements

  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal




Titanium sheet in stock:

Thickness(0.5mm/0.8mm/1.0mm)*Width≤1000mm*L≤2000mm

Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm

Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm

Thickness(3.0mm/3.5mm/4.0mm)*Width≤2000mm*L≤6000mm

Tensile requirements

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 18




Detailed pictures:

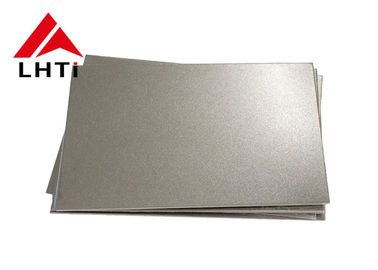

Cold Rolled Annealed ASTM B265 Gr2 1mm Titanium Sheet 0





Packaging and shipping:

Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce
collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance
transportation.

Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.

Cold Rolled Annealed ASTM B265 Gr2 1mm Titanium Sheet 1



We understand that your business depends on getting the right materials in the correct size, finish, quantity and quality. We make it our mission to provide you with exactly what you need at the lowest possible price.Our sole purpose of providing quality products and top notched personal service.
